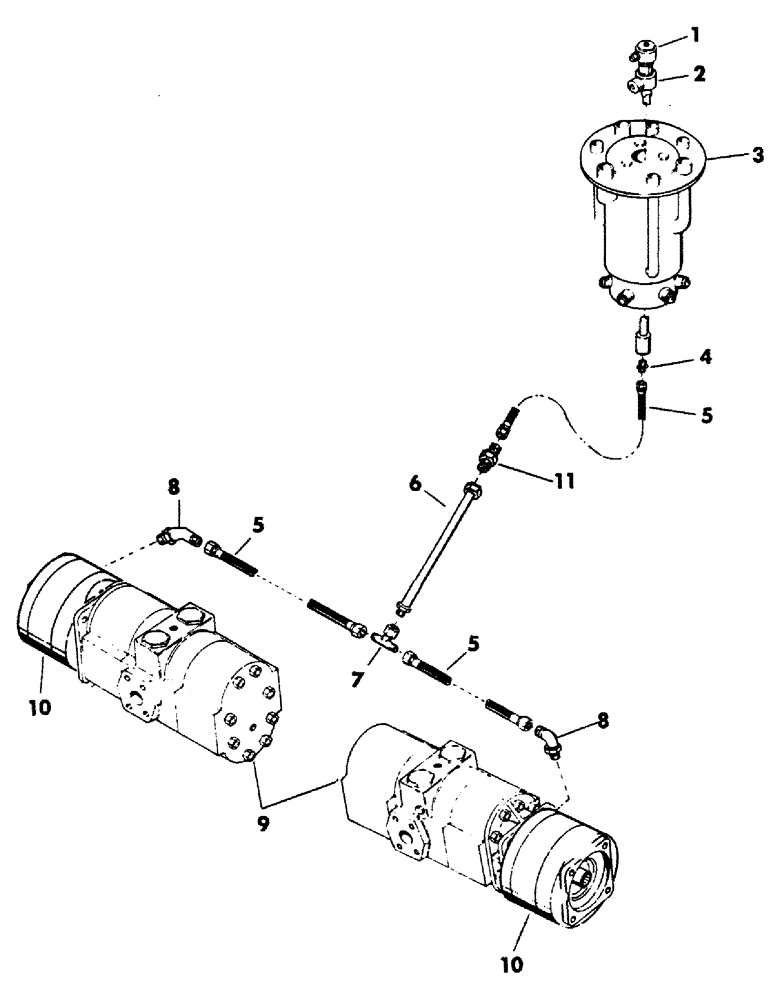

Запчасти Case 40BLC (124) - DRIVE BRAKE TUBINGS (04) - UNDERCARRIAGE

1

SWIVEL, service - (For breakdown, see page 131)

1шт.

2

SWIVEL, inner - (For breakdown, see page 128)

1шт.

3

SWIVEL, 7-port hydraulic - (For breakdown, see page 224)

1шт.

4

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - (1/4" tube) - 1/4" NPTF male - 37 degree flared

1шт.

5

S77467

HOSE

high pressure - 1/4" ID x 38" long - (With 7/16" - 20 female pressed on couplings)

3шт.

6

S211641

TUBE, hydraulic - (Used on wide gauge units) 0.25" OD x 15.5, 2" L

1шт.

Change in listing

1шт.

7

218-591

TEE,7/16"-20, 37 Degree

- 7/16" - 20 male x 7/16" - 20 male x 7/16" - 20 male - 37 degree flared

1шт.

8

S11250

ELBOW

- 45 degrees - 7/16" - 20 male x 7/16" - 20 male - 37 degree flared

2шт.

9

MOTOR, track drive - (Two speed) - (For breakdown, see page 238)

2шт.

10

BRAKE, track - (For breakdown, see page 140)

2шт.

11

218-732

UNION,7/16"-20, 37 Degree x 7/16"-20, 37 Degree

ADAPTER - (1/4" tube) - 7/16" - 20 male x 7/16" - 20 male - 37 degree flared

1шт.
