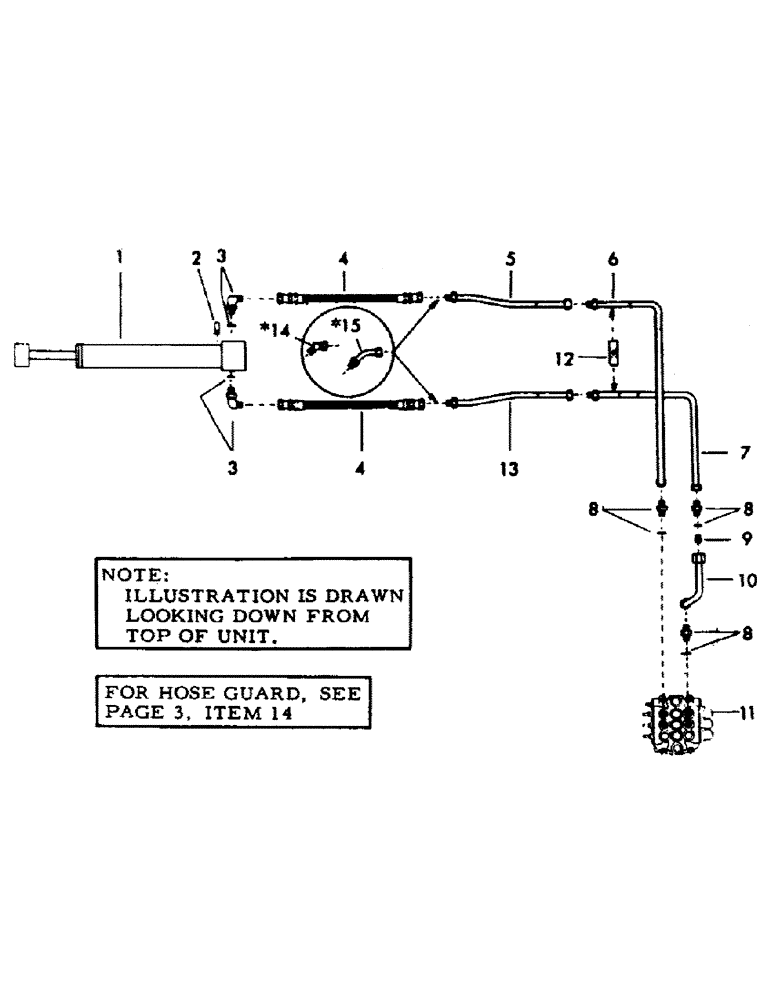

Запчасти Case 40EC (G03A) - VALVE TO HOIST CYLINDER AND RETURN, (USED ON UNITS WITH (07) - HYDRAULIC SYSTEM

1

CYLINDER, hoist - (For breakdown, see section "H")

1шт.

2

78482

ROD - acts as stop for hose - (For "E" boom only)

1шт.

211829

SPINDLE

ROD - acts as stop for hose - (For "Y" boom only)

1шт.

3

7943

ELBOW, 90 degrees adjustable (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared - (Includes "O" ring)

2шт.

6069

O-RING

"O" RING - 1.171" ID x 1.403" O.D.

2шт.

4

8628

HOSE, high pressure - 1" ID x 36" long - (With 1-5/16" - 12 femaler pressed on couplings)

2шт.

5

502085

STD EXHAUST VALVE

LINE, hydraulic

1шт.

6

502083

BOLT

LINE, hydraulic

1шт.

7

502110

ENGINE OIL PAN

LINE, hydraulic

1шт.

8

7972

JACK

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared - (Includes "O" ring)

3шт.

6069

O-RING

"O" RING - 1.171" ID x 1.403" O.D.

3шт.

9

79252

REGULATOR, flow

1шт.

10

502084

STD EXHAUST VALVE

LINE, hydraulic

1шт.

11

VALVE, main - outer - (For breakdown, see section "H")

1шт.

12

77469

CLAMP, tube

2шт.

S86720

BLOCK, wood

2шт.

Change in listing.

1шт.

7389

WASHER, flat - 3/8"

2шт.

17167

LOCK NUT

NUT, self locking - 3/8" NC

2шт.

13

502086

STD EXHAUST VALVE

LINE, hydraulic

1шт.

14

9494

ELBOW, swivel 45 degrees - (1" tube) - 1-5/16" - 12 male x 1-5/16" -12 female - 37 degrees (Used on units with serial number 910-up) - for "Y" boom only

2шт.

15

211848

LINE, hydraulic - (Used on units with serial number 910-up) - for "Y" boom only

2шт.
