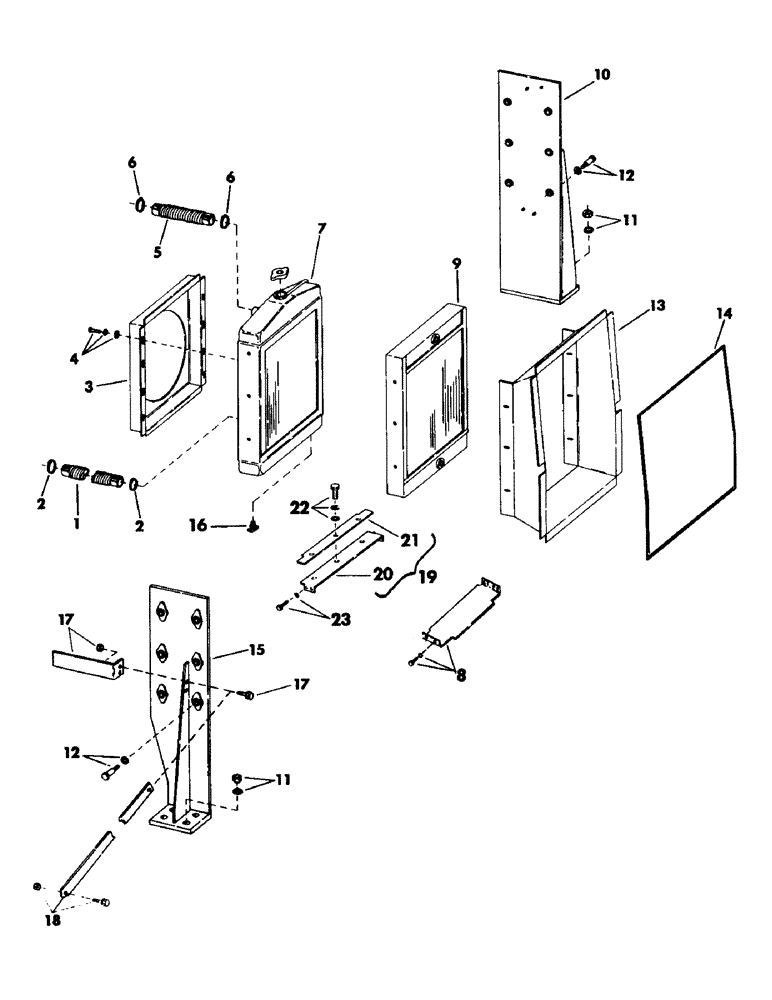

Запчасти Case 50 (029) - RADIATOR, OIL COOLER AND HOSES (10) - ENGINE

1

S95994

HOSE

2.50" ID x 20.00", SAE 20R5, Radiator, Lower; Used on Units With CASE 504BDT Diesel Engines (Supersedes S94906)

1шт.

S76701

HOSE

lower radiator - (Used on units with Detroit diesel 6V-53 engine)

1шт.

2

S10880

HOSE CLAMP

CLAMP, hose - (Used on units with Case 504BDT diesel engine)

2шт.

S10878

HOSE CLAMP

CLAMP, hose - (Used on units with Detroit diesel 6V-53 engine)

2шт.

3

S602527

SHROUD

fan - (Used on units with Case 504BDT diesel engine)

1шт.

S602553

SHROUD, fan - (Used on units with Detroit diesel 6V-53 engine) (Used on units with serial no. 550 thru 602)

1шт.

S603528

SHROUD, fan - (Used on units with Detroit diesel 6V-53 engine) (Used on units with serial no. 603 and after)

1шт.

S16965

PLUG, plastic - 7/8" dia. - (Used with S603528 shroud) - (Not illustrated)

4шт.

4

S14471

BOLT (MACHINE)

SCREW, machine - 1/4" NC x 3/8" gr 5

8шт.

S7380

WASHER

flat - 1/4"

8шт.

S4395

WASHER, LOCK

- 1/4"

8шт.

5

S94323

RADIATOR HOSE,2.50" ID x 8.25", SAE 20R4 CLASS SC

- Upper (Used on units with Case 504BDT diesel engine) 2.50" ID x 8.25", SAE 20R4 CLASS SC

1шт.

S49607

HOSE,1.50" ID x 20.00"

RADIATOR HOSE, , Upper, (Used on Units with Detroit Diesel 6V-53 Engine) 1.50" ID x 20.00"

1шт.

6

S10880

HOSE CLAMP

CLAMP, hose - (Used on units with Case 504BDT diesel engine)

2шт.

S10876

HOSE CLAMP

CLAMP, hose - (Used on units with Detroit diesel 6V-53 engine)

2шт.

7

S600781

RADIATOR

- (Used on units with Case 504BDT diesel engine)

1шт.

S57280

RADIATOR - (Used on units with Detroit diesel 6V-53 engine)

1шт.

REF#7 THE CAP FOR THE RADIATOR IS D25826

1шт.

8

S224312

BRACKET, radiator to cooler - (Upper and lower) - (Used on units with serial no. 550 thru 1037)

2шт.

9

S601960

COOLER, oil

1шт.

10

S506471

BRACKET, radiator and cooler mounting - (Left hand) - (Supersedes S505850) - (Used on units with serial no. 550 thru 1037)

1шт.

S509874

BRACKET, radiator and cooler mounting - (Left hand) - (Used on units with serial no. 1038 and after)

1шт.

11

S84753

WASHER

hardened - 17/32"

10шт.

S17086

NUT

self-locking - 1/2" NC

10шт.

12

S7344

WASHER, LOCK

WASHER, internal tooth lock - 3/8"

12шт.

S76819

STEP BOLT

BOLT, shoulder

12шт.

13

S602546

SHROUD, radiator

1шт.

14

S76711

SEAL

STRIP, weather - (Bulk) - 1 piece 142" long

1шт.

15

S505849

BRACKET, radiator and cooler mounting - (Right hand) - (Used on units with serial no. 550 thru 1037)

1шт.

S509876

BRACKET, radiator and cooler mounting - (Right hand) - (Used on units with serial no. 1038 and after)

1шт.

16

S49610

VALVE

DRAIN, radiator

1шт.

17

S220549

ELECTRICAL WIRE

BRACKET, relay mounting

1шт.

S2402

BOLT

CPSW - 3/8" NC x 1-1/4" gr 5

1шт.

S2403

BOLT

CPSW - 3/8" NC x 1-1/2" gr 5

1шт.

S17167

INSTRUCTION

NUT, self-locking - 3/8" NC

2шт.

18

S94184

BRACE

1шт.

S2402

BOLT

CPSW - 3/8" NC x 1-1/4" gr 5

1шт.

S17167

INSTRUCTION

NUT, self-locking - 3/8" NC

1шт.

19

S228881

BRACKET, radiator to cooler - (Upper and lower) - (Includes items 20 thru 22) - (Used on units with serial no. 1038 and after)

2шт.

20

S228882

BRACKET - (Used on units with serial no. 1038 and after)

2шт.

21

S228884

STRIP

- (Used on units with serial no. 1038 and after)

2шт.

22

S12272

BOLT

CPSW - 1/4" NC x 5/8" gr 5 - (Used on units with serial no. 1038 and after)

6шт.

S4395

WASHER, LOCK

- 1/4"

6шт.

S7377

WASHER

flat - 1/4"

6шт.

23

S2376

CPSW - 5/16" NF x 3/4" gr 5

8шт.

S7381

WASHER

flat - 5/16"

8шт.

NOTE:THE RUBBER MOUNTING GROMMET S76804

1шт.
