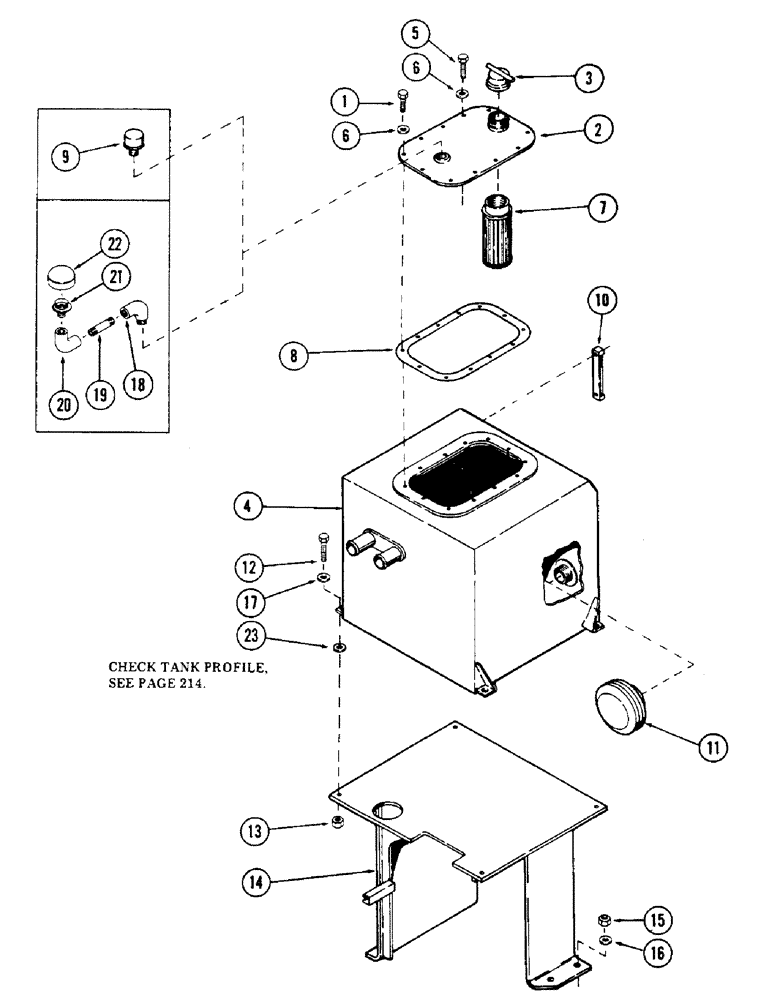

Запчасти Case 50 (216) - HYDRAULIC OIL TANK AND RELATED PARTS, (USED WITH TANK WITH SQUARE CORNERS)(SN.6279926 & AFTER) (35) - HYDRAULIC SYSTEMS

S613279

TANK

ASSEMBLY - hydraulic oil (Replaces S613279), Includes: Ref. 1 - 4

1шт.

Before ordering any replacement parts check tank profile to determine if it has round corners or square corners and order accordingly.

1шт.

1

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

2

S236359

COVER

1шт.

3

S230688

CAP

1шт.

4

S612899

TANK

- hydraulic oil

1шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

6

195-102

WASHER,1/4"

- flat 5/16"

12шт.

7

S107379

FILTER, ENGINE OIL

STRAINER

1шт.

8

S230621

GASKET

- cover

1шт.

9

S91864

BREATHER

- (Supersedes S109723), Serial Range: -6280344

1шт.

10

S107269

GAUGE

- oil level

1шт.

11

S107145

DIFFUSER

2шт.

12

113-2244

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8, Full Thd

4шт.

13

131-52

NUT,3/8"-16, GC

NUT - self locking 3/8" NC

4шт.

14

S510155

BRACKET, Serial Range: -6280344

1шт.

15

131-70

NUT,1/2"-13, GB

NUT - self locking 1/2" NC, Serial Range: -6280344

4шт.

16

S95569

WASHER

- flat 1/2", Serial Range: -6280344

4шт.

17

195-103

WASHER,5/16"

- flat 3/8"

4шт.

18

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

- 90 degrees 3/4" NPT male x 3/4" NPT female, Start Serial: 6280345

1шт.

19

221-1922

NIPPLE, LUBE

NIPPLE - 3/4" NPT male x 2-1/2" long, Start Serial: 6280345

1шт.

20

217-1055

ELBOW,3/4" - 14 NPTF Female

- 90 degrees 3/4" NPT male x 3/4" NPT female, Start Serial: 6280345

1шт.

21

S115101

ADAPTER

- filter air, Start Serial: 6280345

1шт.

22

S115102

AIR CLEANER

FILTER - air, Start Serial: 6280345

1шт.

23

195-103

WASHER,5/16"

- flat 3/8" (Used as shims)

1шт.
