(67A01002152[001]) - ELECTRICAL GROUND AND CLAMPING (P.I.N. HHD0340BN7PG58147 AND AFTER) (84243099)

Запчасти Case 340B (67A01002152[001]) - ELECTRICAL GROUND AND CLAMPING (P.I.N. HHD0340BN7PG58147 AND AFTER) (84243099) (13) - Electrical System / Decals

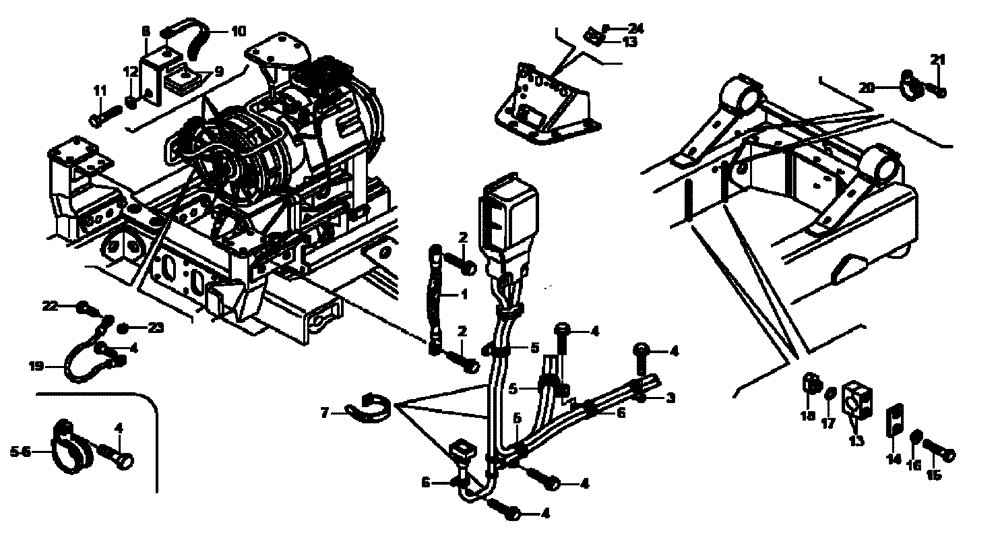

Схема запчастей Case 340B - (67A01002152[001]) - ELECTRICAL GROUND AND CLAMPING (P.I.N. HHD0340BN7PG58147 AND AFTER) (84243099) (13) - Electrical System / Decals
4
7
13
1
11
5-6
4
4
2
4
20
9
15
23
21
18
14
12
5
22
10
5
13
2
6
4
3
6
17
19
24
5
16
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Electrical Ground and Clamping (84243099), Start Serial: 58147

1шт.

1

8900189059

CABLE

1шт.

2

8900121586

SCREW,M12 x 25mm

2шт.

3

8900106732

COLLAR

2шт.

4

8900121098

BOLT,M8 x 16mm

23шт.

5

8900163658

COLLAR

10шт.

6

8900105517

COLLAR

11шт.

7

8900045763

STRAP

1шт.

8

8900174917

SUPPORT

3шт.

9

8900150391

PAD

Rubber

6шт.

10

8900150511

COLLAR

3шт.

11

8900006132

BOLT,M16 x 1.5 x 35mm

3шт.

12

8917095714

COLLAR

3шт.

13

89500408035

COLLAR

4шт.

14

89500407425

PLATE

2шт.

15

8900012143

BOLT,M6 x 55mm

4шт.

16

8900955275

LOCK WASHER

4шт.

17

89500407418

GASKET

4шт.

18

8900108842

NUT

4шт.

19

89500401259

CABLE

Ground

1шт.

20

8900049243

COLLAR

2шт.

21

8900121098

BOLT,M8 x 16mm

2шт.

22

8900115555

BOLT,M8 x 30mm

2шт.

23

8900115122

NUT

2шт.

24

8900108856

BOLT

2шт.
