(6.769A[03]) - ACCESSORIES - SUSPENSION INFLATION TOOL KIT (8900127814)

Запчасти Case 325 (6.769A[03]) - ACCESSORIES - SUSPENSION INFLATION TOOL KIT (8900127814) (13) - Electrical System / Decals

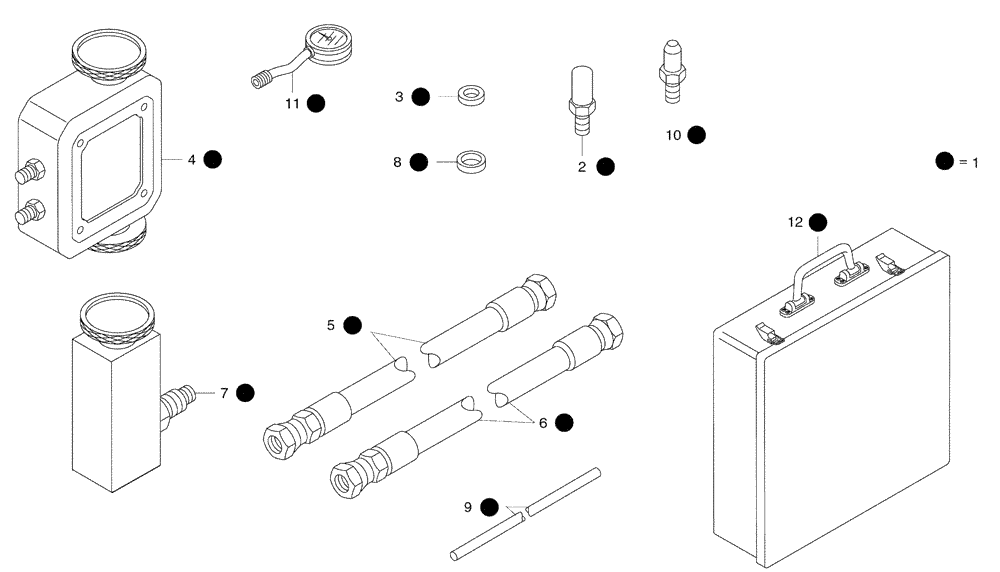

Схема запчастей Case 325 - (6.769A[03]) - ACCESSORIES - SUSPENSION INFLATION TOOL KIT (8900127814) (13) - Electrical System / Decals
1
5
1
3
1
2
1
1
1
1
6
10
1
1
12
1
7
1
1
11
8
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8900127814

TOOL KIT

1шт.

Consists of 2 to 12

1шт.

2

8900045480

HYD CONNECTOR

1шт.

3

8900045481

COPPER WASHER

4шт.

4

NSS

NOT SOLD SEPARAT

Suspension Inflate Pump; Purchase Locally

1шт.

Suspension Inflate

1шт.

5

8900045493

HOSE

1шт.

6

8900045495

HOSE

1шт.

7

8900046374

HYD CONNECTOR

1шт.

Pressure Control

1шт.

8

8900002649

COPPER WASHER

4шт.

9

8900095165

HOSE

D.8 x 12

1шт.

10

NSS

NOT SOLD SEPARAT

Connector, Hyd; Purchase Locally

1шт.

11

8998197698

PRESSURE GAUGE

1шт.

12

8900046231

TOOL BOX

1шт.
