(47A00002317[001]) - PNUEMATIC LINES, BRAKE SYSTEM - FRONT CHASSIS (P.I.N. HHD0327BN7PG57000 AND AFTER) (84193896)

Запчасти Case 327B (47A00002317[001]) - PNUEMATIC LINES, BRAKE SYSTEM - FRONT CHASSIS (P.I.N. HHD0327BN7PG57000 AND AFTER) (84193896) (09) - Implement / Hydraulics / Frame / Brakes

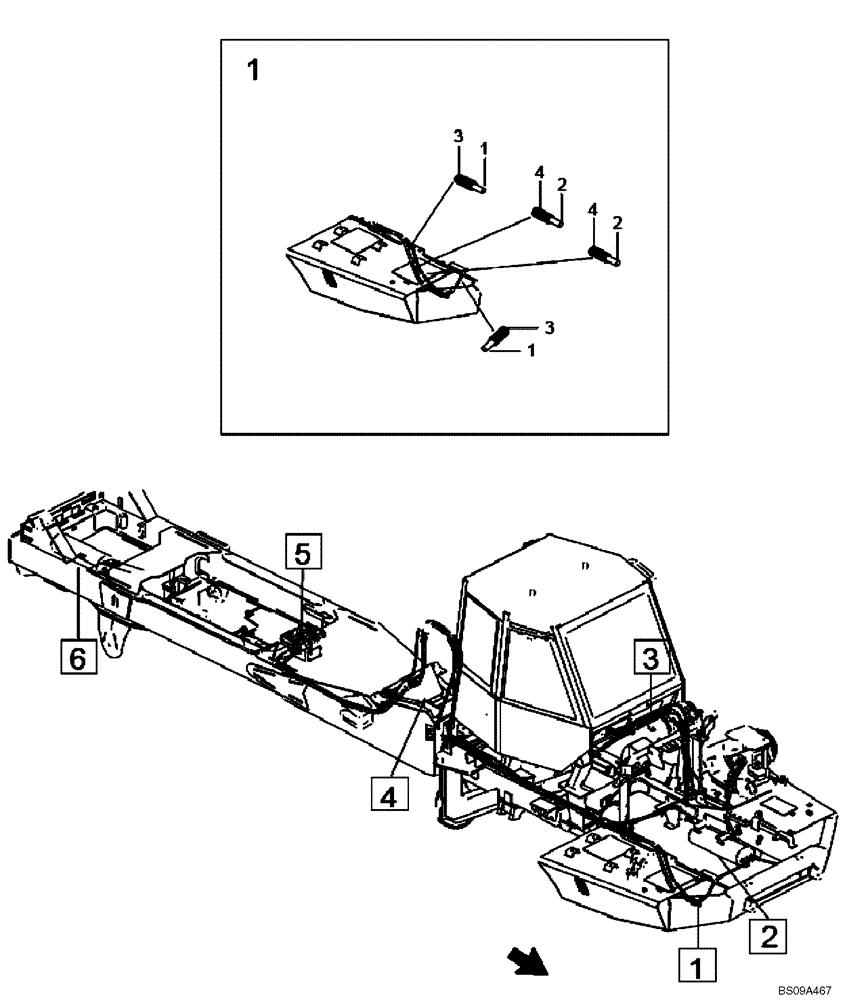

Схема запчастей Case 327B - (47A00002317[001]) - PNUEMATIC LINES, BRAKE SYSTEM - FRONT CHASSIS (P.I.N. HHD0327BN7PG57000 AND AFTER) (84193896) (09) - Implement / Hydraulics / Frame / Brakes
3
4
2
1
3
4
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Pneumatic Lines, Brake System - Front Chassis (84193896)

1шт.

1

8900095211

HOSE

Plastic

1шт.

2

8900095243

PLASTIC-RUBBER TUBE

1шт.

3

8900095153

FLEXIBLE SHEATH

Corrugated

1шт.

4

8900095198

PLASTIC-RUBBER TUBE

TUBE, PLASTIC-RUBBER

1шт.
