(47A00012284[001]) - BRAKE LINES INSTAL - FRONT AXLE (P.I.N. HHD0327BN7PG57000 AND AFTER) (84184590)

Запчасти Case 327B (47A00012284[001]) - BRAKE LINES INSTAL - FRONT AXLE (P.I.N. HHD0327BN7PG57000 AND AFTER) (84184590) (09) - Implement / Hydraulics / Frame / Brakes

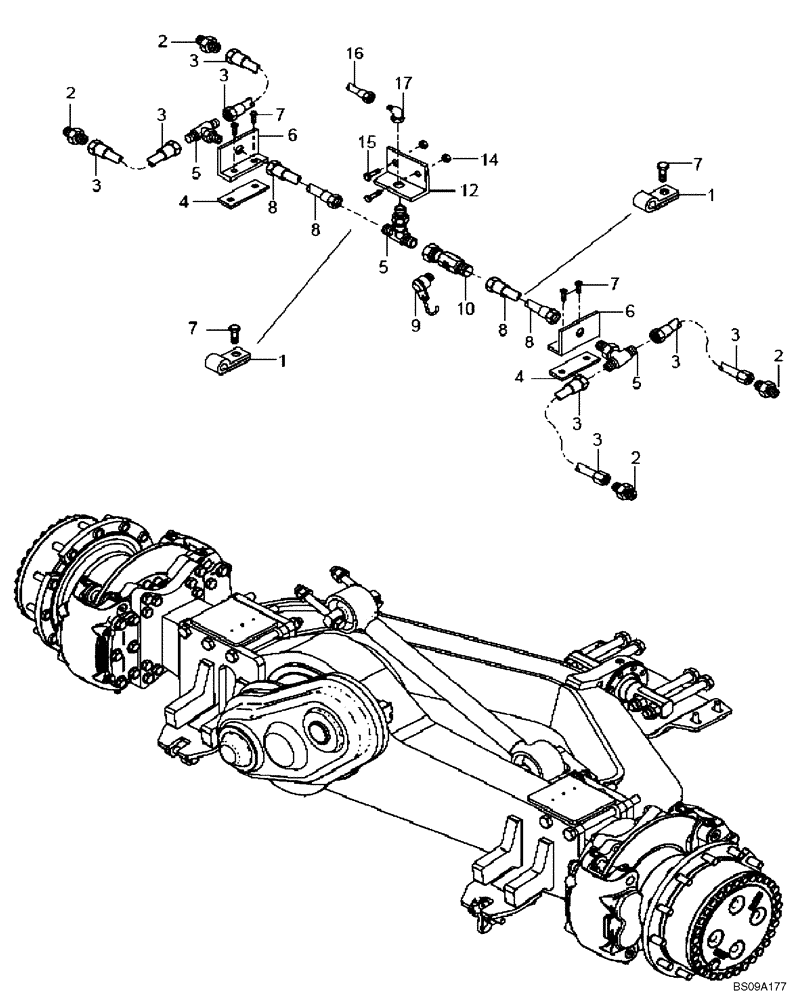

Схема запчастей Case 327B - (47A00012284[001]) - BRAKE LINES INSTAL - FRONT AXLE (P.I.N. HHD0327BN7PG57000 AND AFTER) (84184590) (09) - Implement / Hydraulics / Frame / Brakes
2
3
5
14
7
6
9
7
3
1
10
15
5
1
2
5
3
3
7
2
3
17
2
6
12
16
7
4
8
8
3
8
3
3
8
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Brake Lines Instal - Front Axle (84184590)

1шт.

1

8917315090

COLLAR CLAMP

Qty Was 1

1-2шт.

2

89500406113

HYD CONNECTOR

Qty Was 1

1-4шт.

3

89500435458

HYDRAULIC HOSE

4шт.

4

89500435455

SHIM

Spacer

2шт.

5

89500406231

TEE

3шт.

6

89500435452

BRACKET

2шт.

7

8900116550

BOLT,M6 x 10mm

M6 x 10; Qty Was 6

6-8шт.

8

89500435460

HYDRAULIC HOSE

2шт.

9

8900183360

SWIVEL CONNECTION

1шт.

10

89500435564

HYD CONNECTOR

1шт.

12

89500435453

BRACKET

1шт.

14

8900115122

NUT

S.L.; If Used

2шт.

15

8900115555

BOLT,M8 x 30mm

M8 x 30; If Used

2шт.

16

89500436008

HYDRAULIC HOSE

1шт.

17

89500406106

ELBOW

1шт.
