(47A00012285[001]) - BRAKE LINES INSTAL - INTERMEDIATE AXLE (P.I.N. HHD0327BN7PG57000 AND AFTER) (84184615)

Запчасти Case 327B (47A00012285[001]) - BRAKE LINES INSTAL - INTERMEDIATE AXLE (P.I.N. HHD0327BN7PG57000 AND AFTER) (84184615) (09) - Implement / Hydraulics / Frame / Brakes

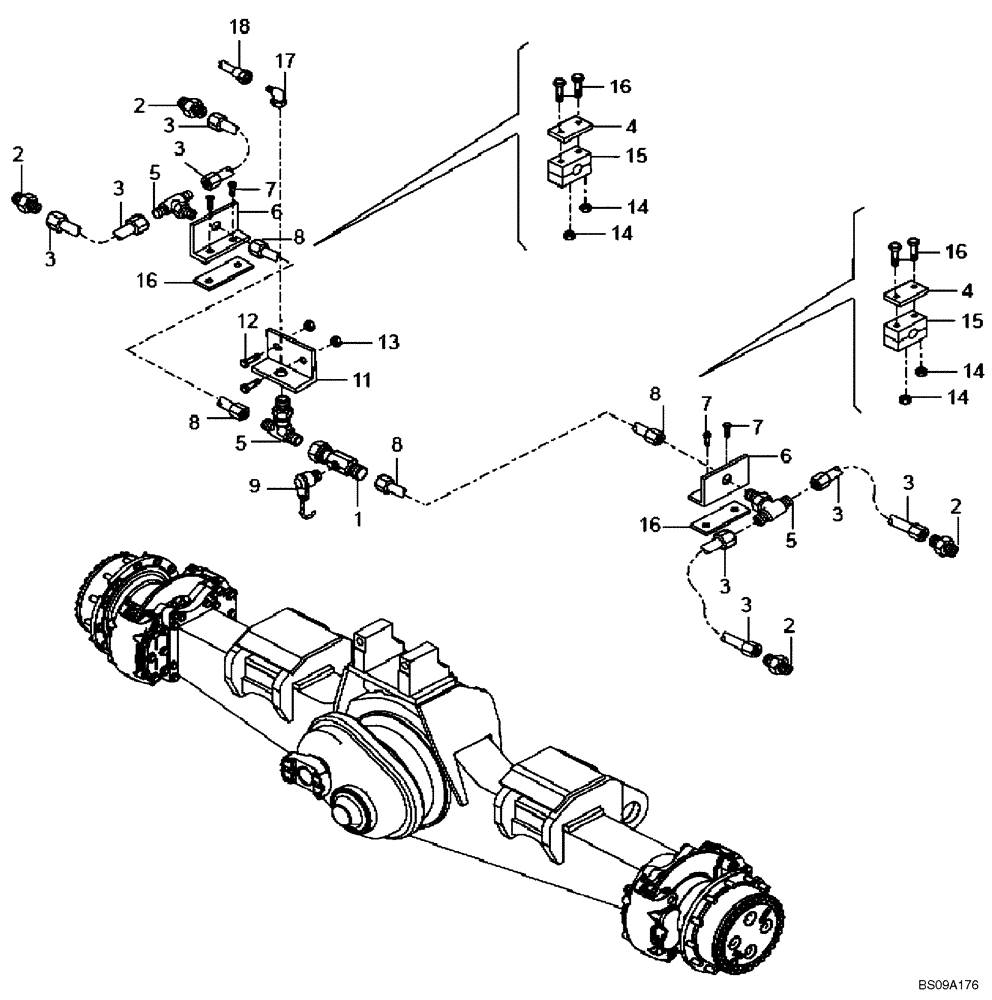

Схема запчастей Case 327B - (47A00012285[001]) - BRAKE LINES INSTAL - INTERMEDIATE AXLE (P.I.N. HHD0327BN7PG57000 AND AFTER) (84184615) (09) - Implement / Hydraulics / Frame / Brakes
4
2
5
3
8
5
14
9
8
16
5
3
3
3
14
11
12
15
6
18
2
3
16
13
8
2
7
2
8
7
17
15
16
3
7
16
1
6
3
4
3
14
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Brake Lines Instal - Intermediate Axle (84184615)

1шт.

1

89500435564

HYD CONNECTOR

1шт.

2

89500406113

HYD CONNECTOR

4шт.

3

89500435458

HYDRAULIC HOSE

4шт.

4

89500407422

PLATE

2шт.

5

89500406231

TEE

3шт.

6

89500435452

BRACKET

2шт.

7

8900116550

BOLT,M6 x 10mm

M6 x 10

4шт.

8

89500435460

HYDRAULIC HOSE

2шт.

9

8900183360

SWIVEL CONNECTION

1шт.

11

89500435454

BRACKET

1шт.

12

8900115555

BOLT,M8 x 30mm

M8 x 30

2шт.

13

8900115122

NUT

S.L.

2шт.

14

8900108842

NUT

4шт.

15

8900107812

CLAMP

Replaces 8900108841 Clamp Used On Some Models

4шт.

16

8916591724

SCREW,M6 x 40mm

M6 x 40

4шт.

17

89500406106

ELBOW

1шт.

18

89500436007

HYDRAULIC HOSE

1шт.
