(47A01002317[001]) - PNEUMATIC LINES, BRAKE SYSTEM - FRONT CHASSIS (P.I.N. HHD0327BN7PG57000 AND AFTER) (84193920)

Запчасти Case 327B (47A01002317[001]) - PNEUMATIC LINES, BRAKE SYSTEM - FRONT CHASSIS (P.I.N. HHD0327BN7PG57000 AND AFTER) (84193920) (09) - Implement / Hydraulics / Frame / Brakes

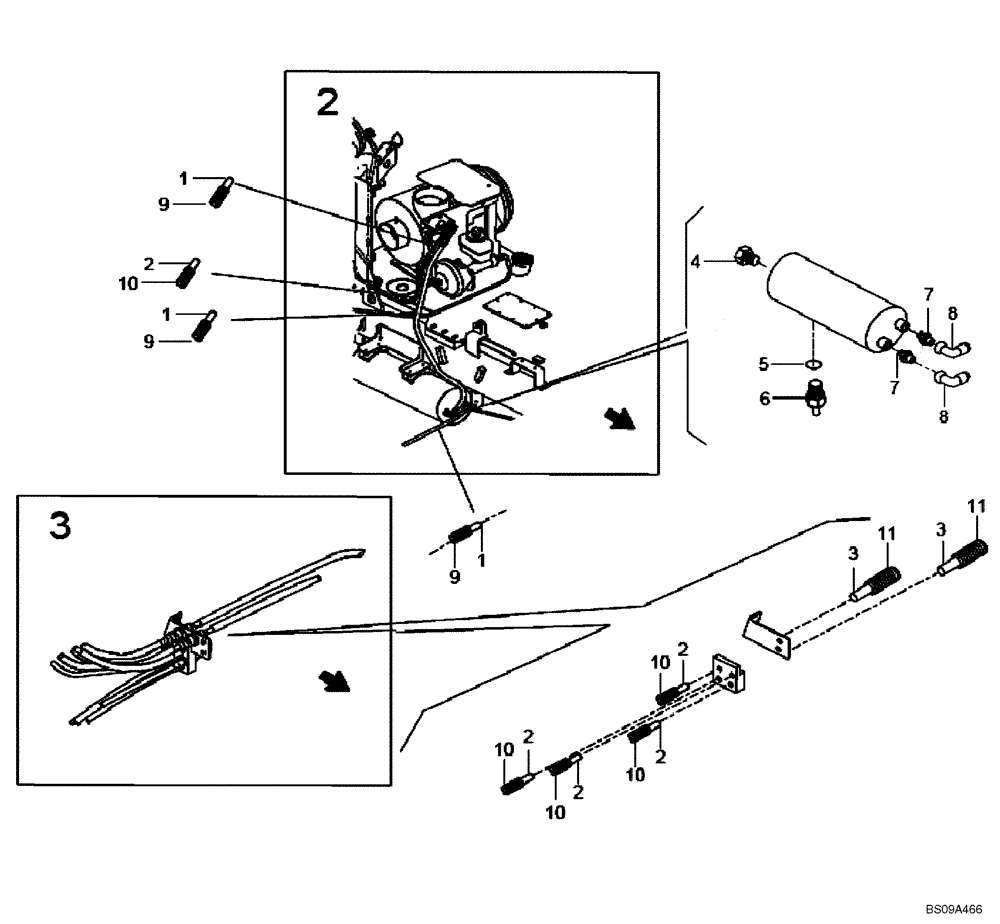

Схема запчастей Case 327B - (47A01002317[001]) - PNEUMATIC LINES, BRAKE SYSTEM - FRONT CHASSIS (P.I.N. HHD0327BN7PG57000 AND AFTER) (84193920) (09) - Implement / Hydraulics / Frame / Brakes
11
10
10
8
6
1
7
4
2
2
3
2
9
8
9
9
2
2
8
5
10
10
9
10
3
11
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Pneumatic Lines, Brake System - Front Chassis (84193920)

1шт.

1

8900095243

PLASTIC-RUBBER TUBE

10шт.

2

8900095211

HOSE

Plastic

15шт.

3

8900095213

PLASTIC-RUBBER TUBE

7шт.

4

8900117258

PLUG

1шт.

5

8900005683

COPPER WASHER

1шт.

6

8900055240

VALVE

1шт.

7

8900121516

HYD CONNECTOR

2шт.

8

89500326018

90 ELBOW

2шт.

9

8900095198

PLASTIC-RUBBER TUBE

TUBE, PLASTIC-RUBBER

1шт.

10

8900095153

FLEXIBLE SHEATH

Corrugated

1шт.

11

8900095201

TUBE

Tube Corrugated

1шт.
