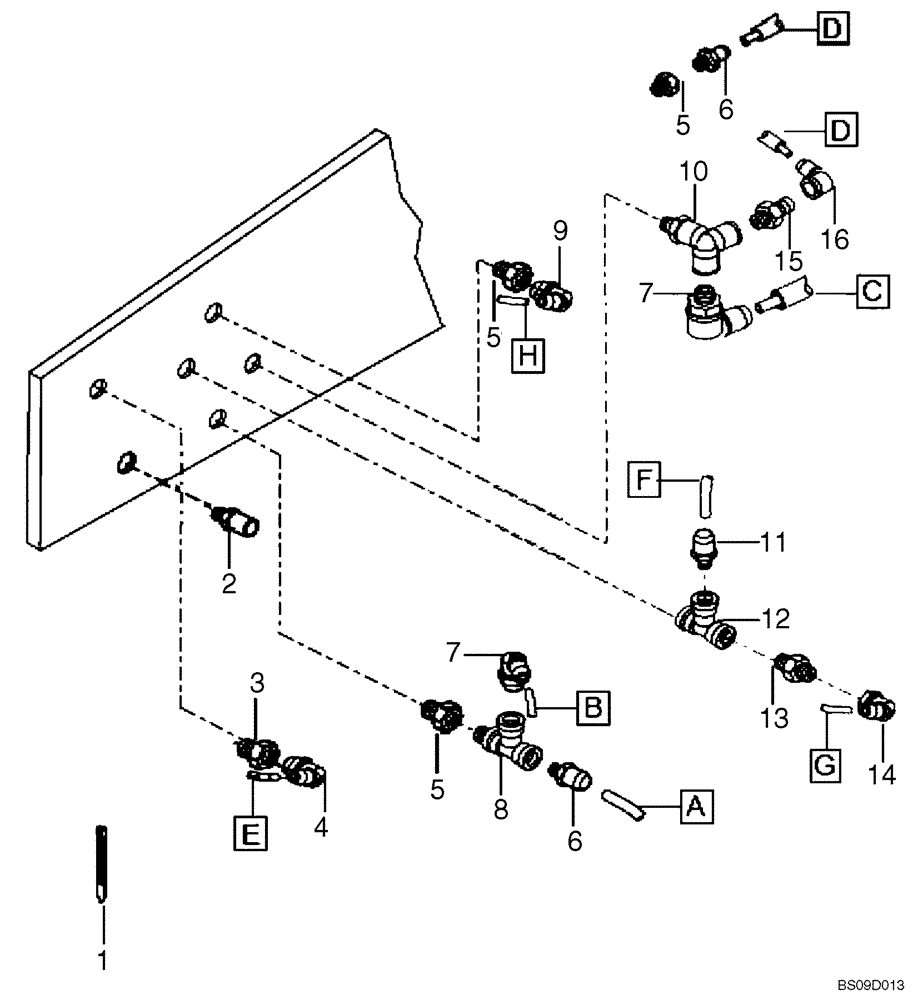

Запчасти Case 327B (47A02002289[001]) - BRAKE SYSTEM OIL CIRCUIT INSTAL (P.I.N. HHD0327BN7PG57000 AND AFTER) (84185905) (09) - Implement / Hydraulics / Frame / Brakes

REF

INSTRUCTION

Brake System Oil Circuit Instal (84185905)

1шт.

1

8900150511

COLLAR

Strap Band

2шт.

2

8900141358

HYD CONNECTOR

1шт.

3

8900117260

FITTING

1шт.

4

8900117279

FITTING

Elbow

1шт.

5

8900117261

HYD CONNECTOR

3шт.

6

8900117247

HYD CONNECTOR

2шт.

7

8900117282

HYD CONNECTOR

Elbow

2шт.

8

8900123329

TEE

1шт.

9

8900117283

HYD CONNECTOR

Elbow

1шт.

10

8900127924

HYD CONNECTOR

1шт.

11

8900117244

HYD CONNECTOR

1шт.

12

8900121520

HYD CONNECTOR

Tee

1шт.

13

8900121513

HYD CONNECTOR

1шт.

14

8900121565

HYD CONNECTOR

Elbow

1шт.

15

8900121507

HYD CONNECTOR

No Longer Required

1шт.

16

8900179831

90 ELBOW

No Longer Required

2шт.
