(47A03002317[001]) - PNEUMATIC LINES INSTAL, BRAKE SYSTEM (P.I.N. HHD0327BN7PG57000 AND ATER) (84194262)

Запчасти Case 327B (47A03002317[001]) - PNEUMATIC LINES INSTAL, BRAKE SYSTEM (P.I.N. HHD0327BN7PG57000 AND ATER) (84194262) (09) - Implement / Hydraulics / Frame / Brakes

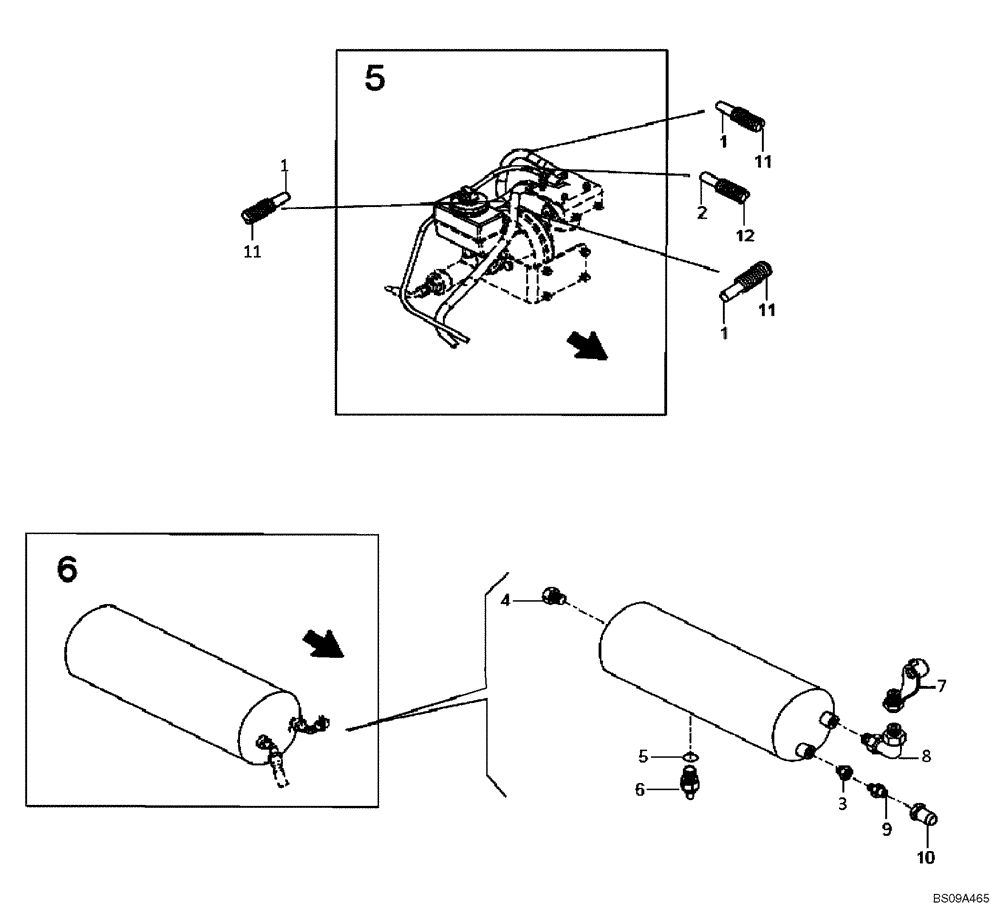

Схема запчастей Case 327B - (47A03002317[001]) - PNEUMATIC LINES INSTAL, BRAKE SYSTEM (P.I.N. HHD0327BN7PG57000 AND ATER) (84194262) (09) - Implement / Hydraulics / Frame / Brakes
2
11
3
11
6
1
11
1
5
7
1
12
10
8
4
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Pneumatic Lines Instal, Brake System (84194262)

1шт.

1

8900095243

PLASTIC-RUBBER TUBE

10шт.

2

8900095211

HOSE

15шт.

3

8900124020

HYD CONNECTOR

1шт.

4

8900117258

PLUG

1шт.

5

8900105501

SEALING RING COLLAR

2шт.

6

8900055240

VALVE

1шт.

7

8900117266

HYD CONNECTOR

1шт.

8

8900121509

90 ELBOW

Replaces 89500316232 Elbow 90

1шт.

9

8900121516

HYD CONNECTOR

1шт.

10

8900117247

HYD CONNECTOR

1шт.

11

8900095198

PLASTIC-RUBBER TUBE

1шт.

12

8900095153

FLEXIBLE SHEATH

1шт.

13

8900150511

COLLAR

Strap Band

30шт.
