(49A00001106[001]) - PNEUMATIC LINES, FRONT FRAME (P.I.N. HHD0327BN7PG57000 AND AFTER) (84188856)

Запчасти Case 327B (49A00001106[001]) - PNEUMATIC LINES, FRONT FRAME (P.I.N. HHD0327BN7PG57000 AND AFTER) (84188856) (09) - Implement / Hydraulics / Frame / Brakes

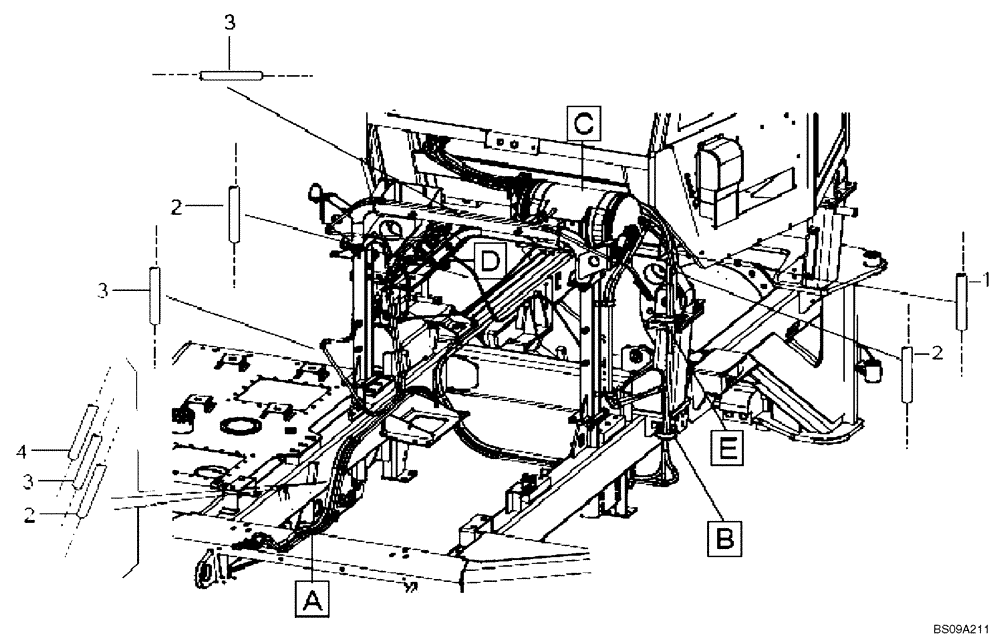

Схема запчастей Case 327B - (49A00001106[001]) - PNEUMATIC LINES, FRONT FRAME (P.I.N. HHD0327BN7PG57000 AND AFTER) (84188856) (09) - Implement / Hydraulics / Frame / Brakes
2
1
3
3
4
3
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Pneumatic Lines, Front Frame (84188856)

1шт.

1

8900095213

PLASTIC-RUBBER TUBE

1шт.

2

8900095210

PLASTIC-RUBBER TUBE

1шт.

3

8900095211

HOSE

Plastic

1шт.

4

8900095213

PLASTIC-RUBBER TUBE

1шт.
