(34A00000649[001]) - WHEEL RIM ASSY 25 X R25 (P.I.N. HHD0327BN7PG5700 AND AFTER) (89500415303)

Запчасти Case 327B (34A00000649[001]) - WHEEL RIM ASSY 25 X R25 (P.I.N. HHD0327BN7PG5700 AND AFTER) (89500415303) (11) - AXLES/WHEELS

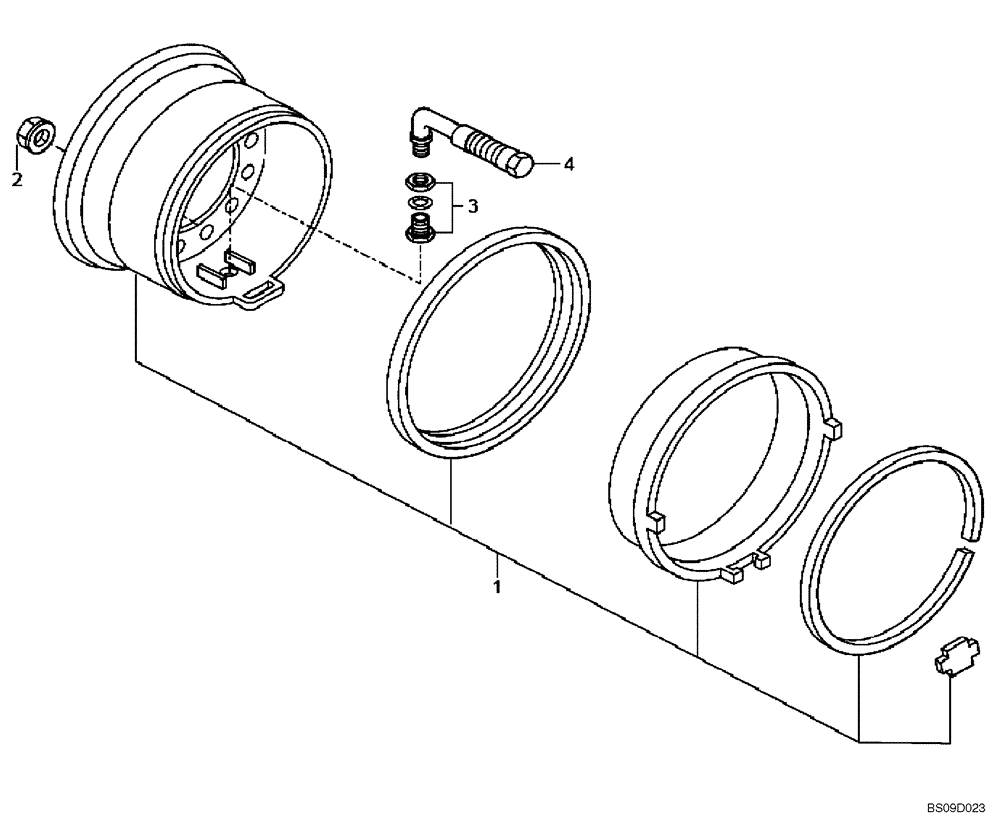

Схема запчастей Case 327B - (34A00000649[001]) - WHEEL RIM ASSY 25 X R25 (P.I.N. HHD0327BN7PG5700 AND AFTER) (89500415303) (11) - AXLES/WHEELS
2
4
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Wheel Rim Assy (89500415303)

1шт.

2

8900190557

WHEEL NUT

12шт.

3

8960810006

VALVE STEM

Base

1шт.

4

8960810005

HYDRAULIC VALVE

Valve, Tire Stem

1шт.

Выбрано товаров: 4
