(67A00001646[001]) - ACCESSORIES PLUG, CAB (87518799)

Запчасти Case 327B (67A00001646[001]) - ACCESSORIES PLUG, CAB (87518799) (13) - Electrical System / Decals

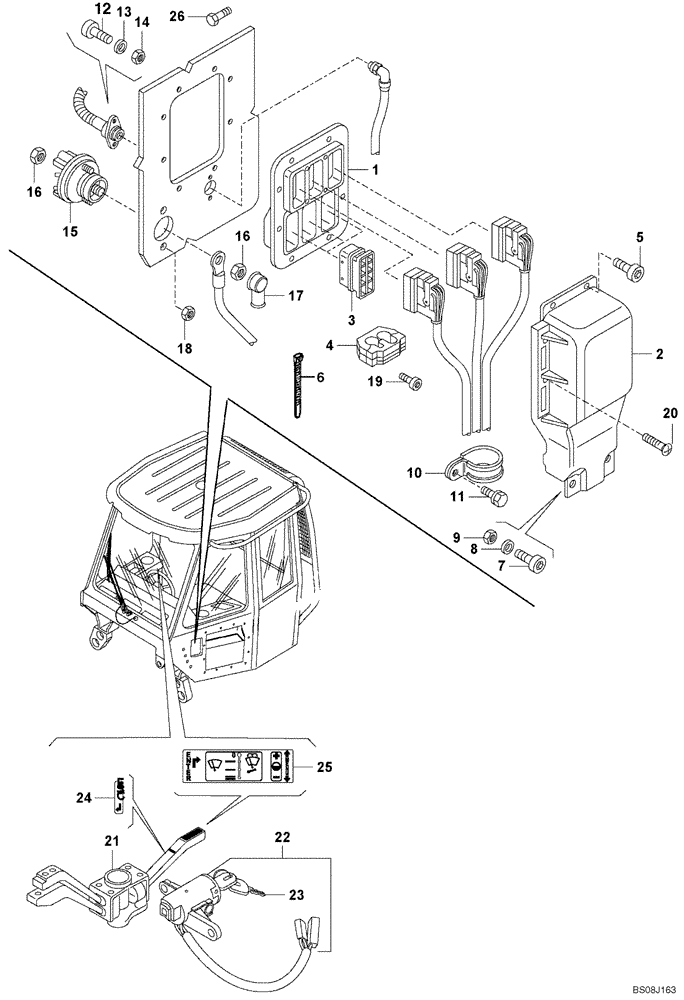

Схема запчастей Case 327B - (67A00001646[001]) - ACCESSORIES PLUG, CAB (87518799) (13) - Electrical System / Decals
14
10
25
7
12
4
17
19
6
22
20
2
23
26
15
18
3
16
9
8
16
1
5
11
24
21
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

89504002684

PLATE

1шт.

2

89500363406

COVER

1шт.

3

89500373567

PLUG

3шт.

4

89504077459

BRACKET

1шт.

5

8900109848

BOLT,M6 x 30mm

Qty Was 8

2-8шт.

6

8900045763

STRAP

Replaces 8900184223 Clamp Band Used On Some Models

20шт.

7

8900108856

BOLT

M6 x 50

2шт.

8

8900002738

WASHER

Qty Was 4

2-4шт.

9

8900125010

FLANGE NUT

Qty Was 4

2-4шт.

10

8900163658

COLLAR

QTY Was 1

1-3шт.

11

8900115555

BOLT,M8 x 30mm

M8 x 30

1шт.

12

8900125013

SCREW,M3 x 16mm

M3 x 16; Qty Was 4

2-4шт.

13

8900127601

LOCK WASHER

Qty Was 4

2-4шт.

14

8900009278

NUT

Qty Was 4

2-4шт.

15

8900124540

POWER SOCKET

1шт.

16

8900115122

NUT

2шт.

17

8900142325

PROTECTION CAP

1шт.

18

8900125009

NUT

Qty Was 2

2-5шт.

19

8916585324

BOLT,M5 x 20mm

M5 x 20; Qty Was 4

2-4шт.

20

8900182674

SCREW,M6 x 20mm

M6 x 20; Qty Was 1

1-6шт.

21

8900124528

SWITCH

Combination; Incl. NSS Wire Leads for Horn Button, Wiper Switch, High Beam Light Switch, and Cluster Scrolling Controls

1шт.

22

8998491189

SWITCH

1шт.

Include(s) 23

1шт.

23

8900120120

IGNITION KEY

1шт.

24

89500409054

LABEL

1шт.

25

89500409055

LABEL

1шт.

26

8900121098

BOLT,M8 x 16mm

M6 x 16

2шт.
