(05A00000570[001]) - GEARBOX COOLER CIRCUIT / FILTER (87557132)

Запчасти Case 327B (05A00000570[001]) - GEARBOX COOLER CIRCUIT / FILTER (87557132) (01) - ENGINE

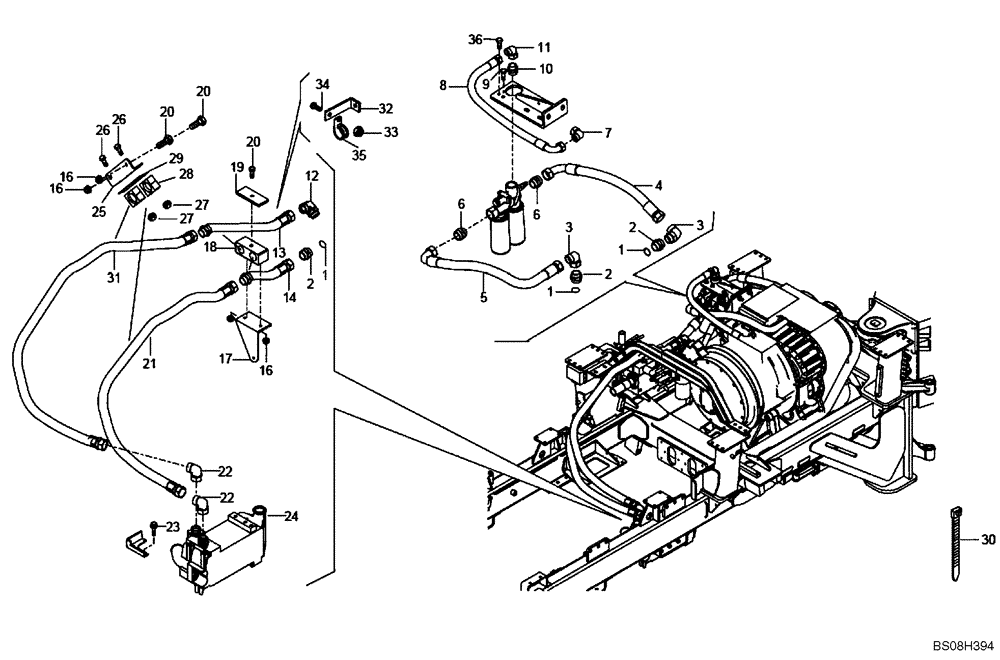

Схема запчастей Case 327B - (05A00000570[001]) - GEARBOX COOLER CIRCUIT / FILTER (87557132) (01) - ENGINE
9
2
1
16
24
22
30
20
26
1
20
5
8
11
6
14
21
25
33
13
23
36
22
7
26
4
18
16
2
32
31
34
20
10
35
17
28
12
19
6
27
16
27
29
3
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

89500408420

SEALING RING

SEALRING

3шт.

2

89500400191

SWIVEL CONNECTION

Qty Was 2

2-3шт.

3

89500400192

SWIVEL CONNECTION

2шт.

4

89500415609

HOSE ASSY.,31.75mm ID x 750mm L, SAE 100R1

1шт.

5

89500416897

HOSE ASSY.

1шт.

6

89500414362

HYD CONNECTOR

2шт.

7

89500400223

SWIVEL CONNECTION

1шт.

8

8998196969

FLEXIBLE HOSE

1шт.

9

8900115555

BOLT,M8 x 30mm

M8 x 30; Qty Was 3 - Replaces 8916587024 Screw M10 x 20 Used On Some Models

1-3шт.

10

89500414366

HYD CONNECTOR

1шт.

11

8900192921

HYD CONNECTOR

1шт.

12

89500408111

CONNECTION

1шт.

13

89500419499

PIPE

1шт.

14

89500419500

PIPE

1шт.

15

89500400938

PLATE

No Longer Required, Not Illustrated

1шт.

16

8900140590

NUT

Qty Was 3

3-4шт.

17

89500419498

BRACKET

1шт.

18

8900184426

CLAMP

1шт.

19

8900157271

PLATE

1шт.

20

8916592624

SCREW,M8 x 80mm

M8 x 80

3шт.

21

89500416898

HOSE

Qty Was 2

1-2шт.

22

8900174229

CONNECTION

2шт.

23

8900118223

BOLT,M12 x 30mm

M12 x 30

5шт.

24

NSS

NOT SOLD SEPARAT

See Fig. 05B00000012

1шт.

25

89500407853

SUPPORT

1шт.

26

8916597624

BOLT,M6 x 70mm

M6 x 70

4шт.

27

8900124675

NUT

M6

4шт.

28

8900107959

COLLAR

4шт.

29

89500407426

PLATE

4шт.

30

8900150511

COLLAR

10шт.

31

89500420951

HOSE,31.75 mm ID x 1850.00 mm

Replaces one of the 89500416898 Hose Assy's, Ref Item 21

1шт.

32

8900176147

BRACKET

If Used

1шт.

33

8900140591

FLANGE NUT

If Used

1шт.

34

8900116551

BOLT,M6 x 16mm

M6 x 16; If Used

1шт.

35

89500408251

STRAP

If Used

1шт.

36

8900116551

BOLT,M6 x 16mm

M6 x 16; If Used

1шт.
