(43A00000714[01]) - STEERING SYSTEM - DISTRIBUTOR AND FILTER CLAMPINGS

Запчасти Case 330 (43A00000714[01]) - STEERING SYSTEM - DISTRIBUTOR AND FILTER CLAMPINGS (09) - Implement / Hydraulics / Frame / Brakes

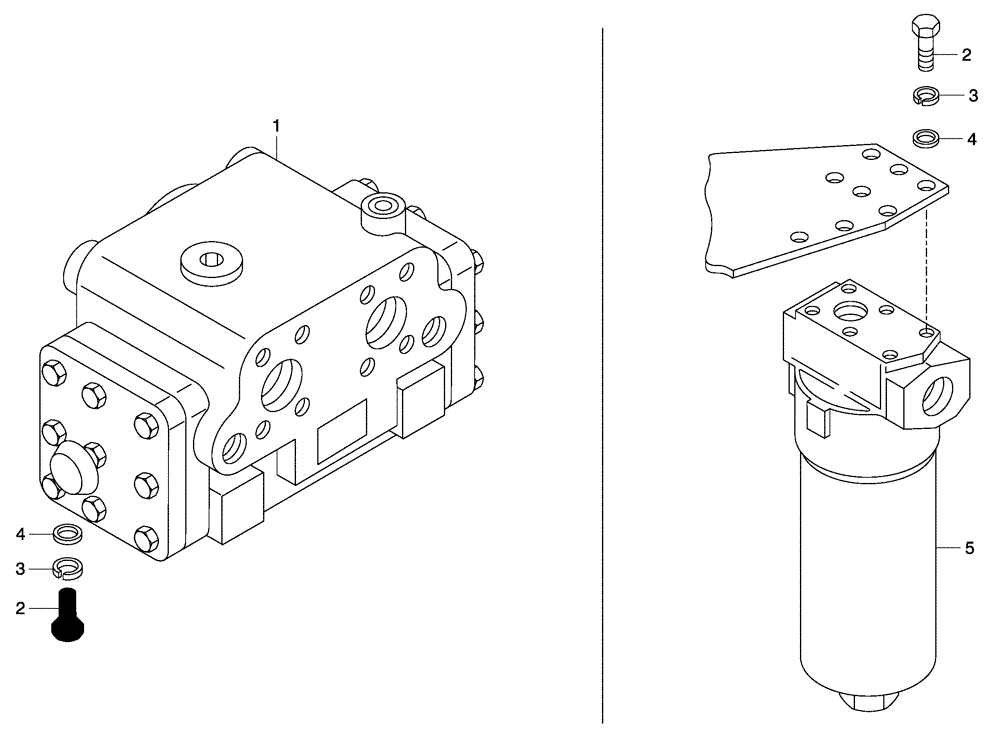

Схема запчастей Case 330 - (43A00000714[01]) - STEERING SYSTEM - DISTRIBUTOR AND FILTER CLAMPINGS (09) - Implement / Hydraulics / Frame / Brakes
2
4
1
3
4
2
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8900194527

CONTROL VALVE

1шт.

Serial Number : Until HHD0000242, See Page : 43M00000001

1шт.

1

89500404277

CONTROL VALVE

1шт.

Serial Number : HHD0000243And After, See Page : 43M00000002

1шт.

2

8900140488

BOLT

M10 x 1,5 x 25

9шт.

3

8900001049

LOCK WASHER

9шт.

4

8900113173

WASHER

9шт.

5

8960940013

FILTER ASSY

1шт.

See Page : 43K00000005

1шт.
