(47X00000002 [01]) - BRAKE SYSTEM - BRAKE CALIPER SERIAL NUMBER : HHD0000202 TO HDD0000242

Запчасти Case 330 (47X00000002 [01]) - BRAKE SYSTEM - BRAKE CALIPER SERIAL NUMBER : HHD0000202 TO HDD0000242 (09) - Implement / Hydraulics / Frame / Brakes

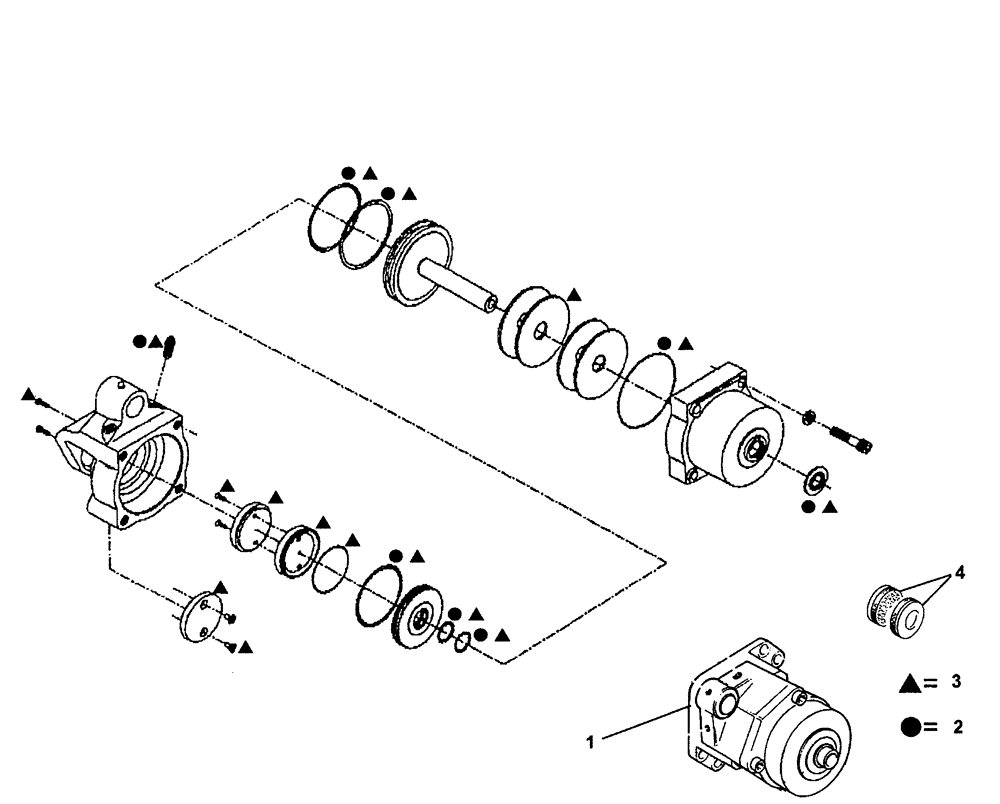

Схема запчастей Case 330 - (47X00000002 [01]) - BRAKE SYSTEM - BRAKE CALIPER SERIAL NUMBER : HHD0000202 TO HDD0000242 (09) - Implement / Hydraulics / Frame / Brakes
2
1
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

89500400040

BRAKE CALIPER

1шт.

Consists of 2, 3, 4

1шт.

2

8900125855

SEAL KIT

1шт.

3

8900125856

GASKET KIT

1шт.

4

8960840005

BRAKE PAD

Contains (2) Circular Brake Pads, A Metal plate, ORings, And A Cap Screw

2шт.

Выбрано товаров: 5
