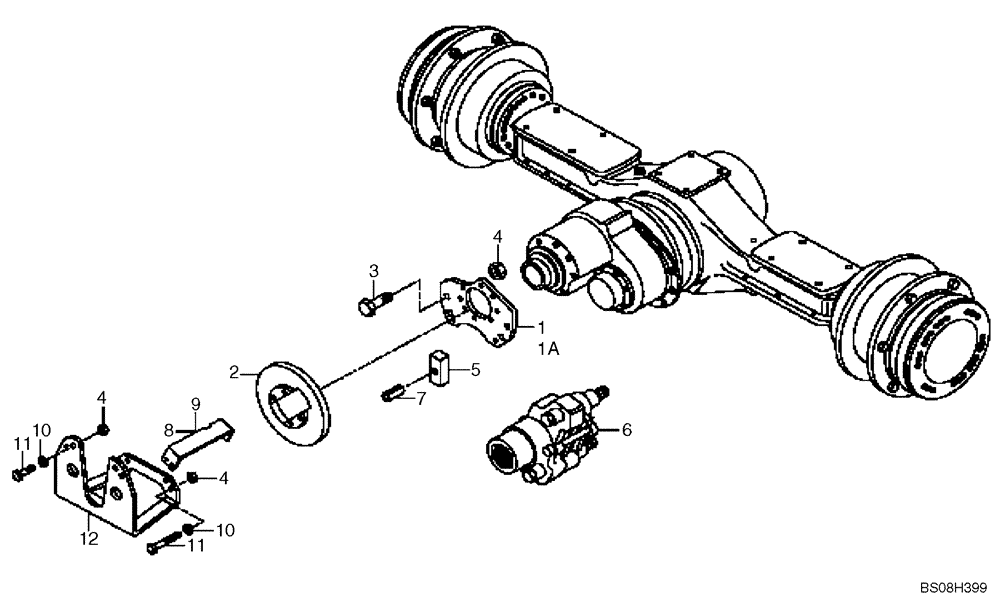

Запчасти Case 330 (32A00000622[02]) - INTERMEDIATE AXLE - BRAKE CALIPER INSTALLATION (11) - AXLES/WHEELS

1

89500400807

SUPPORT

If Used; Until P.I.N. HHD000405 On Units Having 89500404753 Intermediate Axle Assy W/Differential Lock

1шт.

1a

89500417629

SUPPORT

If Used; P.I.N. HHD000406 And After On Units Having 89500417239 Intermediate Axle Assy W/O Differential Lock

1шт.

2

89500400805

BRAKE DISC

1шт.

3

89500400808

BOLT

8шт.

4

8900055100

SPECIAL NUT

12шт.

5

8900195059

BLOCK

2шт.

6

89500403376

BRAKE CALIPER

2шт.

See Page : 47X00000003

1шт.

7

8900109019

ROLL PIN

M12 x 50

2шт.

8

8998196734

BRACKET

M12 x 24

1шт.

9

8998196735

BRACKET

1шт.

10

8900001398

WASHER

16шт.

11

8900119987

BOLT

M12 x 40

8шт.

12

89500400806

SHIELD

1шт.

13

89500417628

STUD

Spacing; Not Illustrated - Used On P.I.N. HHD000406 And After Having 89500417629 Support

9шт.
