(67A00021254[02]) - WIRINGS - SERIAL NUMBER HHD0000243 AND AFTER

Запчасти Case 330 (67A00021254[02]) - WIRINGS - SERIAL NUMBER HHD0000243 AND AFTER (13) - Electrical System / Decals

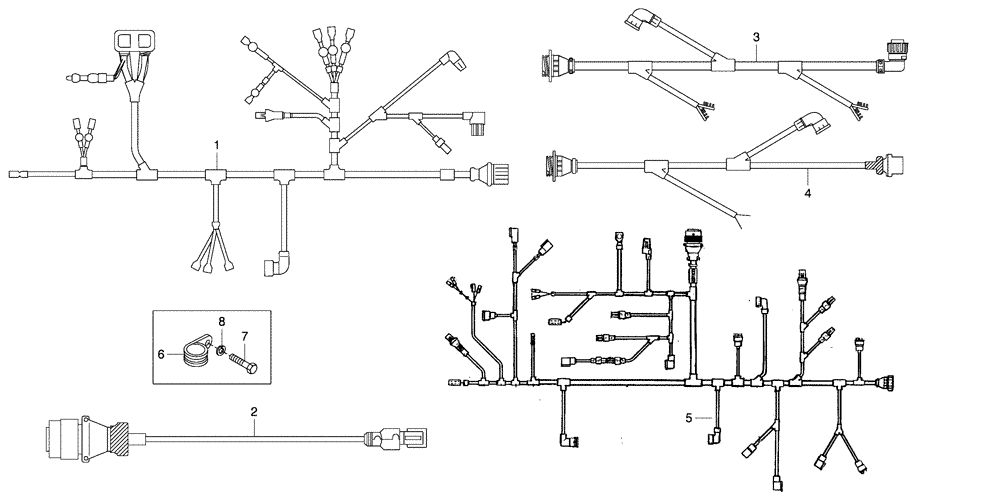

Схема запчастей Case 330 - (67A00021254[02]) - WIRINGS - SERIAL NUMBER HHD0000243 AND AFTER (13) - Electrical System / Decals
2
5
4
6
1
7
8
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

89500401031

WIRE HARNESS

Engine; Used With Alternators Equipped With Threaded Post, Years: -01-FEB-09

1шт.

1

89500415361

WIRE HARNESS

Engine; Used With Alternators Equipped With Packard Plug Connectors, Start Year: 01-FEB-09

1шт.

2

89500402295

WIRE HARNESS

1шт.

OEM Engine

1шт.

3

8900194953

WIRE HARNESS

1шт.

Frame-Rear Auxiliary

1шт.

4

89500402264

WIRE HARNESS

1шт.

Frame-Services

1шт.

5

89500404592

WIRE HARNESS

1шт.

Frame-Auxiliary Services, Serial Number : Until HHD0000308

1шт.

5

89500410849

HARNESS

1шт.

Frame-Auxiliary Services, Serial Number : HHD0000309 And After

1шт.

6

8900184223

HOSE CLAMP

1шт.

7

8900140610

BOLT

M6X20

1шт.

8

8900102132

SPRING WASHER

8шт.
