(43A00000937[001]) - FILTER AND HOSE MTG W/WET BRAKE (P.I.N. HHD0330BN7PG57000 AND AFTER) (84158407)

Запчасти Case 330B (43A00000937[001]) - FILTER AND HOSE MTG W/WET BRAKE (P.I.N. HHD0330BN7PG57000 AND AFTER) (84158407) (09) - Implement / Hydraulics / Frame / Brakes

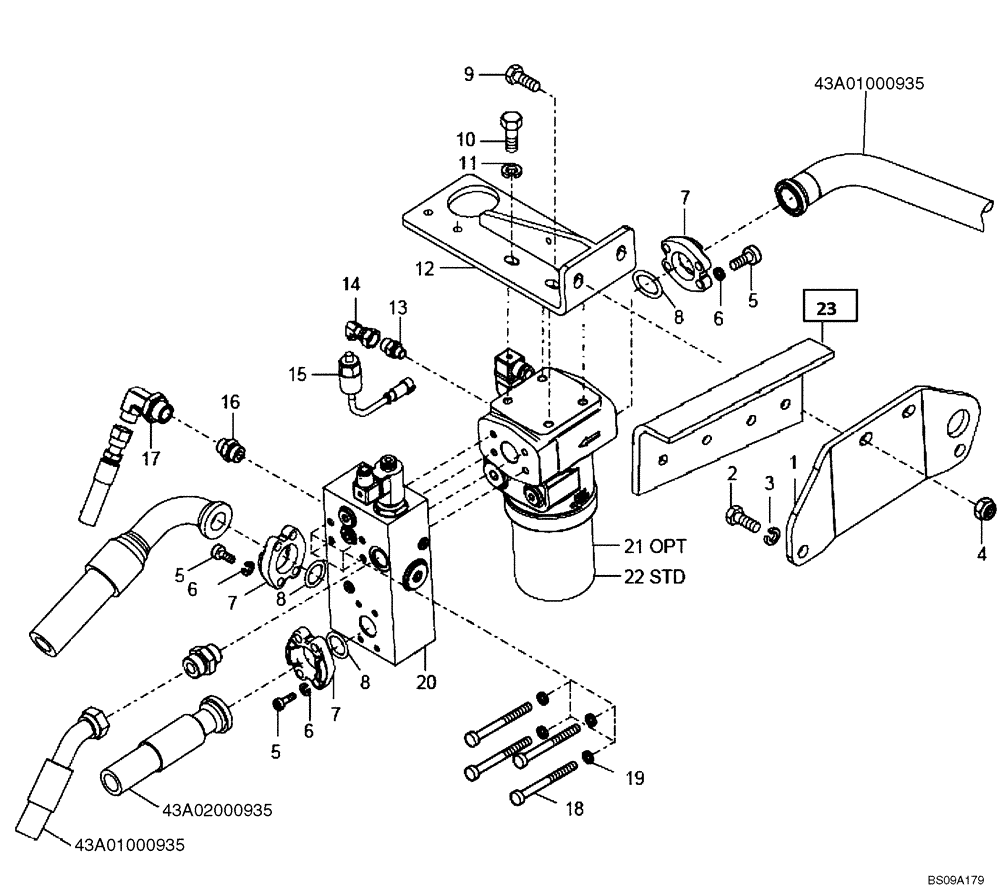

Схема запчастей Case 330B - (43A00000937[001]) - FILTER AND HOSE MTG W/WET BRAKE (P.I.N. HHD0330BN7PG57000 AND AFTER) (84158407) (09) - Implement / Hydraulics / Frame / Brakes
19
21
4
5
11
17
2
12
18
7
5
14
20
43a01000935
6
3
5
6
22
9
8
8
15
7
10
7
13
16
23
6
1
43a01000935
43a02000935
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Hydraulic Filter And Hose Mounting - Wet Brake (84158407)

1шт.

1

89500415377

PLATE

1шт.

2

8900116825

BOLT

M16 x 40

2шт.

3

8900110597

WASHER

Bevel

2шт.

4

8916984535

NUT

2шт.

5

8900125707

BOLT,M10 x 30mm

M10 x 30

12шт.

6

8900001049

LOCK WASHER

12шт.

7

8900191133

FLANGE

Split

6шт.

8

8917289480

O-RING

SEALRING

3шт.

9

8900135045

SCREW,M14 x 40mm

M14 x 40

2шт.

10

8916629734

BOLT,M12 x 25mm

M12 x 25

4шт.

11

8900140473

WASHER

4шт.

12

89500415376

SUPPORT

1шт.

13

89500407467

CONNECTION

1шт.

14

89500409343

HYD CONNECTOR

Elbow

1шт.

15

89500409101

SWITCH

1шт.

16

89500408432

HYD CONNECTOR

1шт.

17

89500406108

CONNECTION

Elbow

1шт.

18

8916709834

BOLT

BOLT, M10 x 90

4шт.

19

8900956580

WASHER

4шт.

20

8998340959

VALVE

VALVE ASSY

1шт.

21

8998341421

FILTER ASSY

Opt. Steering And Dumping Hydraulics; If Used

1шт.

22

8998341918

FILTER ASSY

Replaces 89500425470 Std. Steering And Dumping HYdraulics; If Used

1шт.

23

89500432498

SUPPORT

If Used

1шт.
