(47A00002319[001]) - PNEUMATIC LINES, BRAKE SYSTEM - FRONT CHASSIS (P.I.N. HHD0330BN7PG57000 AND AFTER) (84195724)

Запчасти Case 330B (47A00002319[001]) - PNEUMATIC LINES, BRAKE SYSTEM - FRONT CHASSIS (P.I.N. HHD0330BN7PG57000 AND AFTER) (84195724) (09) - Implement / Hydraulics / Frame / Brakes

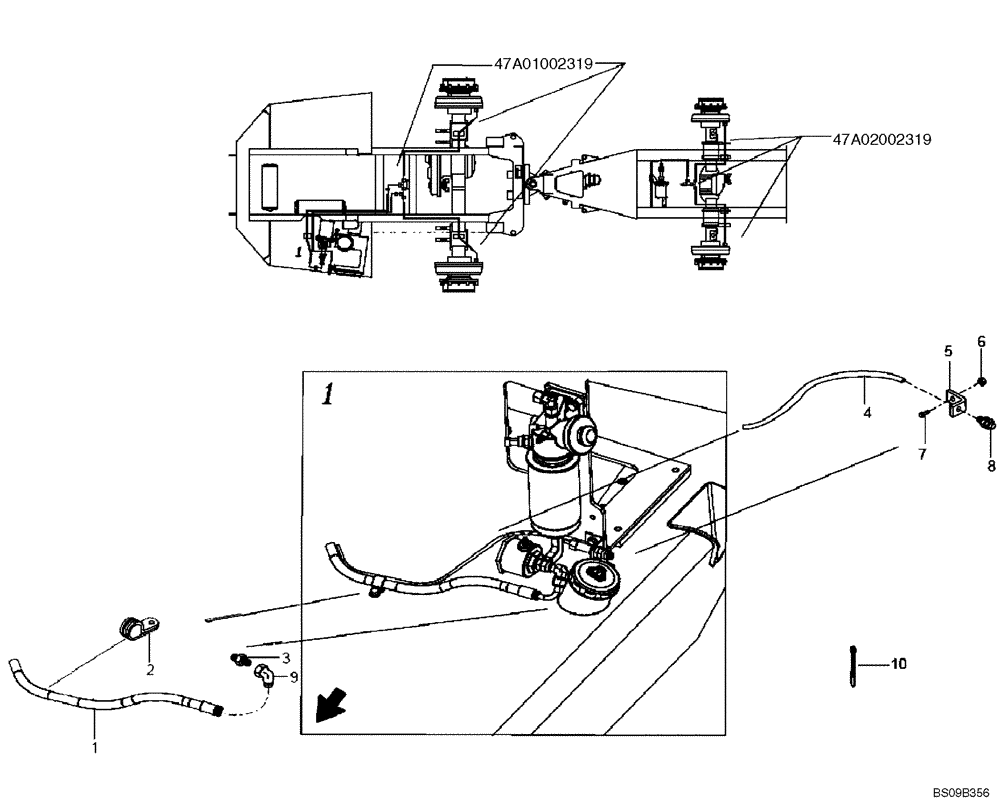

Схема запчастей Case 330B - (47A00002319[001]) - PNEUMATIC LINES, BRAKE SYSTEM - FRONT CHASSIS (P.I.N. HHD0330BN7PG57000 AND AFTER) (84195724) (09) - Implement / Hydraulics / Frame / Brakes
9
5
47a01002319
47a02002319
6
3
1
4
10
8
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Brake System Pnuematics - Front Chassis (84195724)

1шт.

1

89500407616

HOSE

1шт.

2

8900142305

CLAMP

1шт.

3

89500430157

HYD CONNECTOR

CONNECTOR, HYD.; Replaces 89500430156 Connector, Hyd. Used On Some Models

1шт.

4

89500408184

HOSE ASSY.

1шт.

5

89500436421

BRACKET

1шт.

6

8900115122

NUT

S.L.

1шт.

7

8916586424

BOLT,M8 x 25mm

M8 X 25

1шт.

8

8900189997

HYD CONNECTOR

1шт.

9

89500406107

CONNECTION

Elbow

1шт.

10

8900150511

COLLAR

Strap Band

20шт.
