(49A02001106[001]) - PNEUMATIC LINES, FRONT FRAME (P.I.N. HHD0330BN7PG57000 AND AFTER) (84189051)

Запчасти Case 330B (49A02001106[001]) - PNEUMATIC LINES, FRONT FRAME (P.I.N. HHD0330BN7PG57000 AND AFTER) (84189051) (09) - Implement / Hydraulics / Frame / Brakes

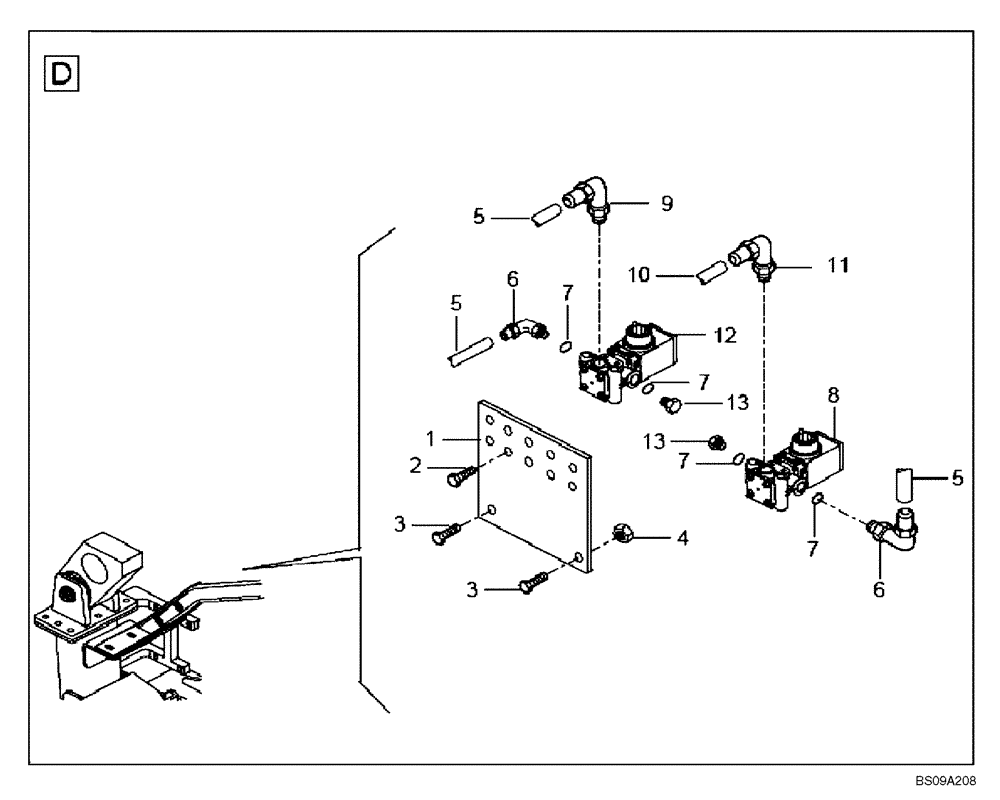

Схема запчастей Case 330B - (49A02001106[001]) - PNEUMATIC LINES, FRONT FRAME (P.I.N. HHD0330BN7PG57000 AND AFTER) (84189051) (09) - Implement / Hydraulics / Frame / Brakes
3
7
10
1
5
2
7
13
9
13
7
6
6
8
3
7
4
12
11
5
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Pneumatic Lines, Front Frame (84189051)

1шт.

1

89500418253

BRACKET

1шт.

2

8900116551

BOLT,M6 x 16mm

M6 x 16

8шт.

3

8916592624

SCREW,M8 x 80mm

M8 x 80

2шт.

4

8900115122

NUT

S.L

6шт.

5

8900095211

HOSE

Plastic

1шт.

6

8900117281

FITTING

Elbow

3шт.

7

89500411585

O-RING

4шт.

8

89500417132

SOLENOID VALVE

Central Differential Lock

1шт.

9

8900117281

FITTING

Elbow

3шт.

10

8900095210

PLASTIC-RUBBER TUBE

1шт.

11

8900121039

ELBOW

Elbow

2шт.

12

89500411583

SOLENOID VALVE

Shut-Off

1шт.

13

8900117256

PLUG

2шт.
