(72H00000004[001]) - VALVE ASSY DISTRIBUTOR (89500418159) (UNTIL P.I.N. HHD0330BN7PGXXXXX)

Запчасти Case 330B (72H00000004[001]) - VALVE ASSY DISTRIBUTOR (89500418159) (UNTIL P.I.N. HHD0330BN7PGXXXXX) (09) - Implement / Hydraulics / Frame / Brakes

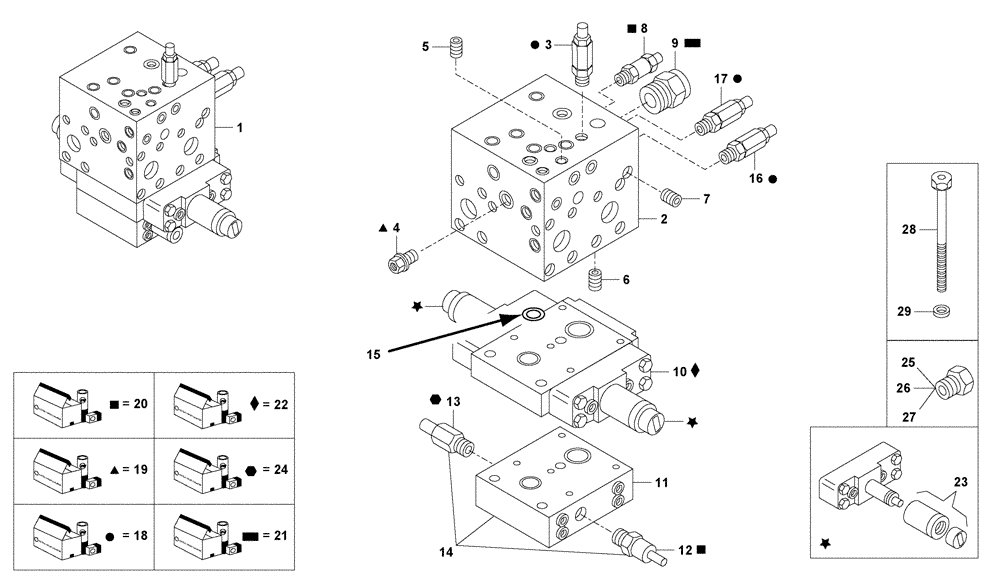

Схема запчастей Case 330B - (72H00000004[001]) - VALVE ASSY DISTRIBUTOR (89500418159) (UNTIL P.I.N. HHD0330BN7PGXXXXX) (09) - Implement / Hydraulics / Frame / Brakes
20
21
18
24
18
20
6
7
22
18
9
25
13
18
12
11
10
17
3
22
14
24
26
23
23
23
8
19
4
28
16
19
20
21
2
1
5
29
27
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

89500418159

DISTRIBUTOR

1шт.

2

8900134216

VALVE

1шт.

3

8998340027

SAFETY VALVE

1шт.

4

8900134218

VALVE

1шт.

5

8900134219

DOWEL

1шт.

6

8900134220

DOWEL

1шт.

7

8900134221

DOWEL

1шт.

8

8900134222

VALVE

1шт.

9

8900134223

VALVE

1шт.

10

8900134224

VALVE

Dumping actuation

1шт.

NSS

NOT SOLD SEPARAT

Metal Gasket; Order 8900134224 Dumping Actuation Valve

2шт.

11

8900134225

VALVE

1шт.

12

8900134226

VALVE

1шт.

13

8900134227

VALVE

1шт.

14

8900134228

VALVE

Priority control / anti-saturation

1шт.

Include(s) 11, 12, 13

1шт.

15

8900134229

SEAL KIT

1шт.

16

8900134231

SAFETY VALVE

1шт.

17

8900134231

SAFETY VALVE

1шт.

18

8900134232

SEAL KIT

1шт.

Include(s) 3, 16, 17

1шт.

19

8900134233

SEAL KIT

1шт.

Include(s) 4

1шт.

20

8900134234

SEAL KIT

1шт.

Include(s) 8, 12

1шт.

21

8900134235

SEAL KIT

1шт.

Include(s) 9

1шт.

22

8900134236

SEAL KIT

1шт.

Include(s) 10

1шт.

23

8900134237

SOLENOID

1шт.

24

8900134238

SEAL KIT

1шт.

Include(s) 11, 12, 13

1шт.

25

8900134239

PLUG

1шт.

26

8900134240

PLUG

1шт.

27

8900134241

PLUG

1шт.

28

8900134242

BOLT

M12 x130

1шт.

29

8900134243

WASHER

1шт.
