(30A00000134[001]) - SECTION INDEX, FRONT WHEEL HUB W/WET BRAKE (89500425541)

Запчасти Case 330B (30A00000134[001]) - SECTION INDEX, FRONT WHEEL HUB W/WET BRAKE (89500425541) (11) - AXLES/WHEELS

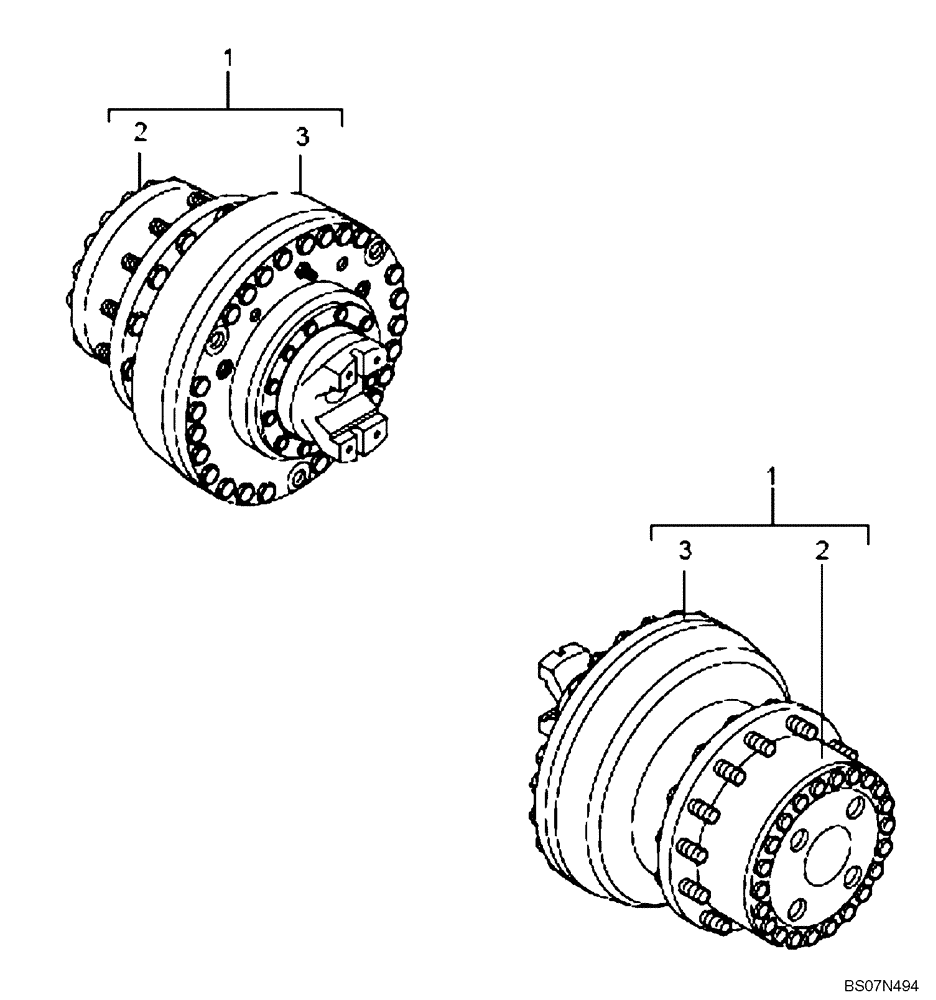

Схема запчастей Case 330B - (30A00000134[001]) - SECTION INDEX, FRONT WHEEL HUB W/WET BRAKE (89500425541) (11) - AXLES/WHEELS
2
2
3
3
1
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

89500425541

HUB ASSY.

Include(s) 2, 3

2шт.

2

NSS

NOT SOLD SEPARAT

Reduction Gear Assembly (87516798)

1шт.

REF

INSTRUCTION

See Figure(s) 30A00000667 (001) For Service Breakdown

1шт.

3

NSS

NOT SOLD SEPARAT

Brake Assembly (87516799)

1шт.

REF

INSTRUCTION

See Figure(s) 30A00000666 (001) For Service Breakdown

1шт.
