(67A00002094[001]) - CAMERA, REAR VIEW INSTAL (P.I.N. HHD0330BN7PG57000 AND AFTER) (84192595)

Запчасти Case 330B (67A00002094[001]) - CAMERA, REAR VIEW INSTAL (P.I.N. HHD0330BN7PG57000 AND AFTER) (84192595) (13) - Electrical System / Decals

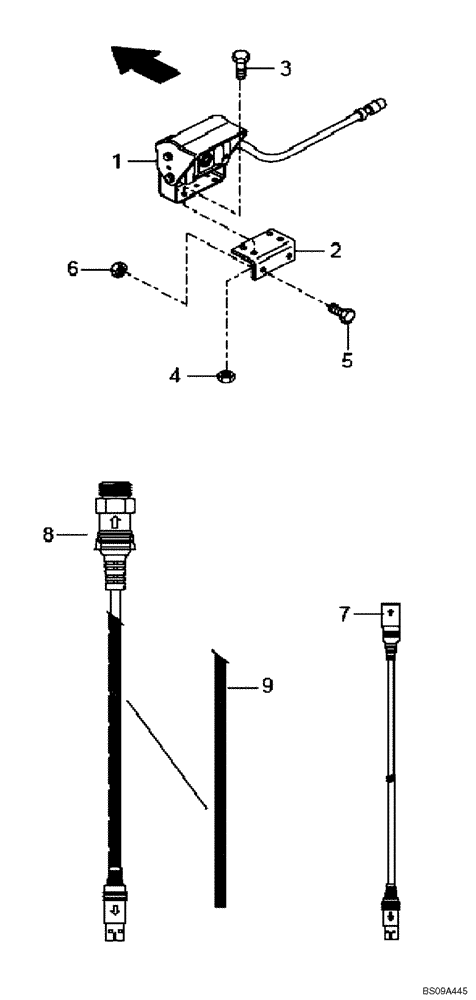

Схема запчастей Case 330B - (67A00002094[001]) - CAMERA, REAR VIEW INSTAL (P.I.N. HHD0330BN7PG57000 AND AFTER) (84192595) (13) - Electrical System / Decals
5
9
7
8
1
6
3
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Camera, Rear View Instal (84192595)

1шт.

1

89500436276

VIDEO CAMERA

Rear View CCTV

1шт.

2

89500436451

SUPPORT

1шт.

3

8916695324

SCREW

4шт.

4

8917158525

NUT

M4

4шт.

5

8900115555

BOLT,M8 x 30mm

M8 x 30

2шт.

6

8900115122

NUT

S.L.

2шт.

7

89500436431

ELECTRIC CABLE

1шт.

8

89500436429

ELECTRIC CABLE

1шт.

9

8900095451

PLASTIC-RUBBER TUBE

Corrugated

1шт.
