(67A00002096[001]) - WIRING HARNESSES, OPTIONAL FRAME (P.I.N. HHD0330BN7PG5700 AND AFTER) (84216146)

Запчасти Case 330B (67A00002096[001]) - WIRING HARNESSES, OPTIONAL FRAME (P.I.N. HHD0330BN7PG5700 AND AFTER) (84216146) (13) - Electrical System / Decals

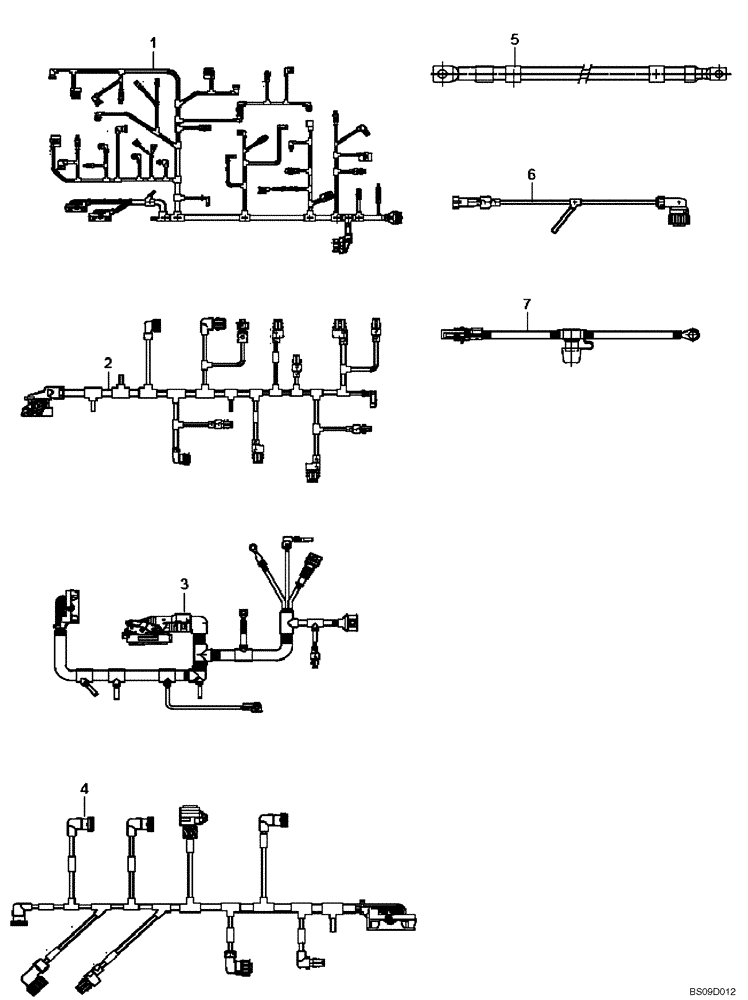

Схема запчастей Case 330B - (67A00002096[001]) - WIRING HARNESSES, OPTIONAL FRAME (P.I.N. HHD0330BN7PG5700 AND AFTER) (84216146) (13) - Electrical System / Decals
7
3
2
5
4
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Wiring Harnesses, Optional Frame (84216146)

1шт.

1

89500429433

WIRE HARNESS

Front Chassis; With Wet Brakes; Late MIDAC Connector With 2 Groups of 12 Round Contacts

1шт.

2

89500433985

WIRE HARNESS

HARNESS, WIRE; Rear Chassis Services

1шт.

3

89500434075

HARNESS

Engine

1шт.

4

8950043074

HARNESS, Transmission Frame

1шт.

5

89500408933

NEG BATTERY CABLE

1шт.

6

89500433790

CABLE EXTENSION

Locking Switch

1шт.

7

89500415980

ELECTRIC CABLE

CABLE, ELECTRIC

1шт.
