(67A00002114[001]) - SIDE PANEL, COMPONENTS W/POWER MIRRORS (P.I.N. HHD 0330BN7PG57000 AND AFTER) (84217037)

Запчасти Case 330B (67A00002114[001]) - SIDE PANEL, COMPONENTS W/POWER MIRRORS (P.I.N. HHD 0330BN7PG57000 AND AFTER) (84217037) (13) - Electrical System / Decals

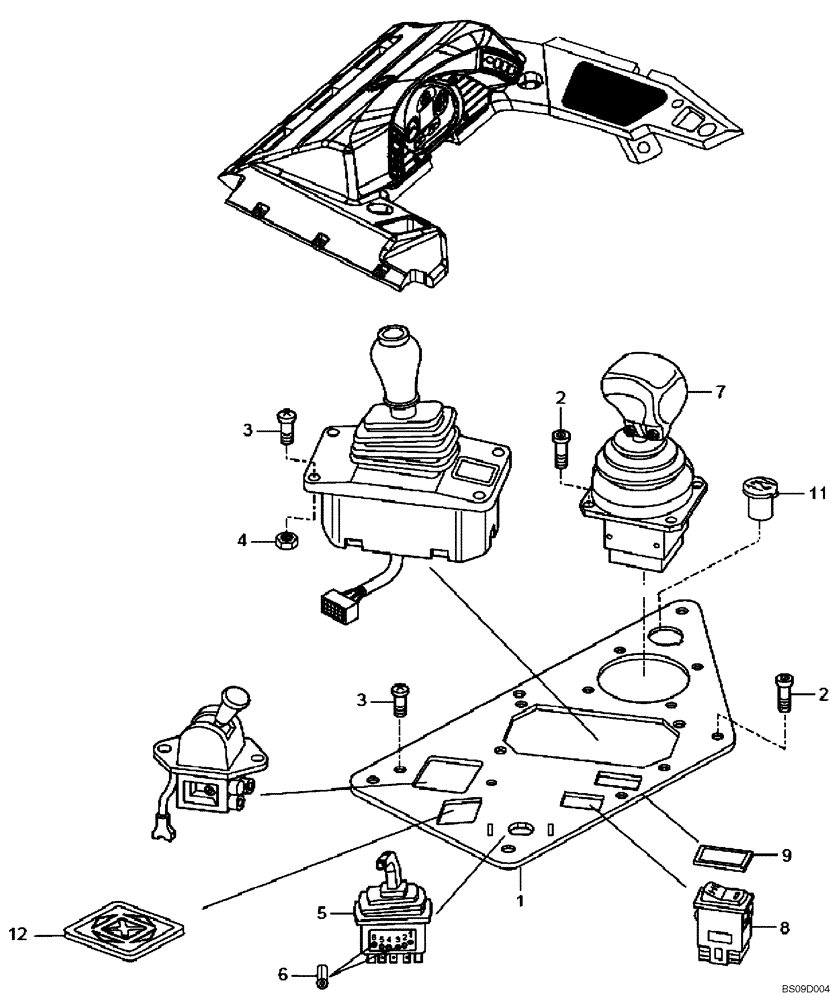

Схема запчастей Case 330B - (67A00002114[001]) - SIDE PANEL, COMPONENTS W/POWER MIRRORS (P.I.N. HHD 0330BN7PG57000 AND AFTER) (84217037) (13) - Electrical System / Decals
11
2
5
12
1
3
8
9
3
2
6
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Side Panel, Components W/Power Mirrors (84217037)

1шт.

1

89500408627

PANEL

1шт.

2

8998199849

BOLT

M4 x 12

10шт.

3

8917032877

SCREW,M6 x 25mm

M6 x 25

6шт.

4

8900101322

NUT

S.L.

4шт.

5

8998454560

MANIPULATOR

Retarder Switch - Engine Brake

1шт.

6

8917234910

ELEC. TERMINAL PIN

Pin

2шт.

7

89500419145

MANIPULATOR

Shift Control

1шт.

8

89500409376

SWITCH

Rear Differential Lock

1шт.

9

89500409508

PLUG

1шт.

11

8941200583

SOCKET

Electric

1шт.

12

8900195478

CONTROL

Side Mirror

1шт.
