(67A00021647[001]) - PARTS, INSTRUMENT PANEL (SIMPLE MUX P.I.N. HHD0330BN7PG56093 AND AFTER) (87722617)

Запчасти Case 330B (67A00021647[001]) - PARTS, INSTRUMENT PANEL (SIMPLE MUX P.I.N. HHD0330BN7PG56093 AND AFTER) (87722617) (13) - Electrical System / Decals

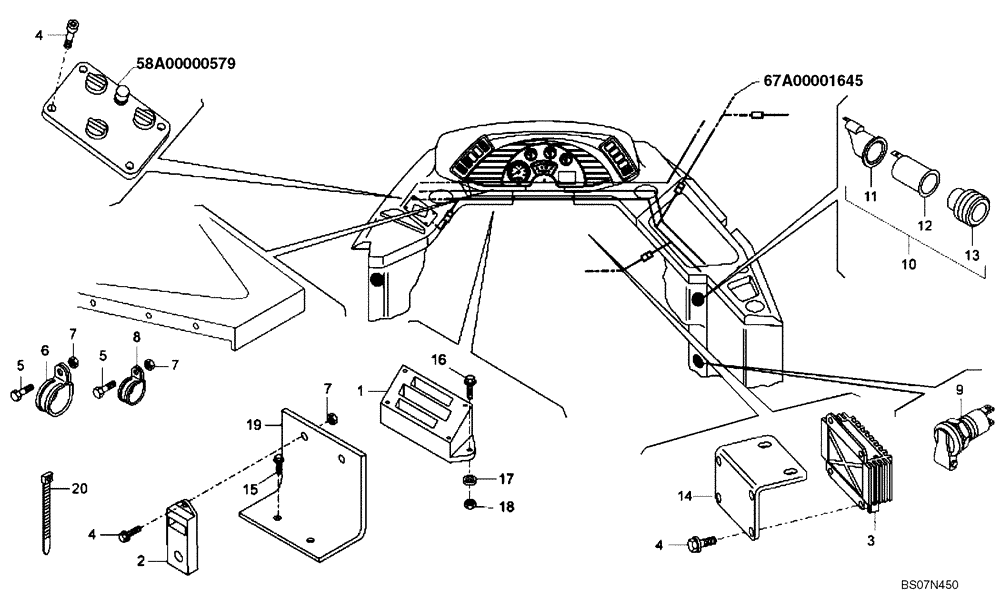

Схема запчастей Case 330B - (67A00021647[001]) - PARTS, INSTRUMENT PANEL (SIMPLE MUX P.I.N. HHD0330BN7PG56093 AND AFTER) (87722617) (13) - Electrical System / Decals
7
8
14
6
20
5
58a00000579
4
4
1
9
5
19
2
4
11
17
12
10
7
13
3
16
7
67a00001645
18
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

89500433936

CONTROL UNIT

Slave In-Out; Replaces 89500432713 And 89500426642 And 89500426643 And 89500425004 Control Slave in-Out Simple Mux

1шт.

2

89504036887

FLASHER UNIT

DIRECTIONAL SIGNAL

1шт.

3

89504219480

TRANSFORMER

1шт.

4

8900142213

SCREW

4шт.

5

8900124628

BOLT

M6 x 20

4шт.

6

8900105517

COLLAR

STRAP BAND

2шт.

7

8900125009

NUT

Qty Was 4

4-6шт.

8

8900106732

COLLAR

STRAP BAND

4шт.

9

8900140115

POWER SOCKET

1шт.

10

8904842512

CIGARETTE LIGHTER

ASSY

1шт.

11

8904842515

RING NUT

1шт.

12

8904842794

SEAT/SLOT

1шт.

13

8904842514

HEATING ELEMENT

GLOW PLUG

1шт.

14

89500409480

SUPPORT

1шт.

15

8998199849

BOLT

M4 x 20

4шт.

16

8916585324

BOLT,M5 x 20mm

M5 x 20; If Used

2шт.

17

8900002738

WASHER

FLAT; If Used: Qty Was 4

2-4шт.

18

8900125010

FLANGE NUT

FLANGE; If Used

2шт.

19

89500425890

BRACKET

If Used

1шт.

20

8900163658

COLLAR

STRAP BAND; If Used

3шт.
