(67A03011463[001]) - BACKUP ALARM W/POSITION SENSOR & VIDEO CAMERA (87584151)

Запчасти Case 330B (67A03011463[001]) - BACKUP ALARM W/POSITION SENSOR & VIDEO CAMERA (87584151) (13) - Electrical System / Decals

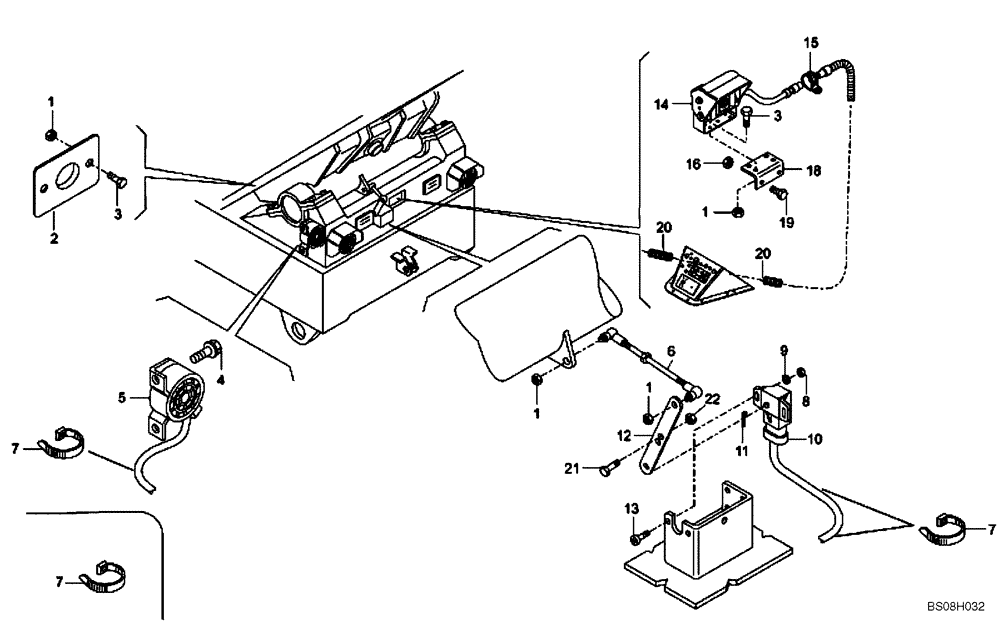

Схема запчастей Case 330B - (67A03011463[001]) - BACKUP ALARM W/POSITION SENSOR & VIDEO CAMERA (87584151) (13) - Electrical System / Decals
8
7
18
20
1
10
3
12
9
7
6
2
16
1
20
1
3
7
22
21
11
19
1
14
5
13
4
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8900125009

NUT

6шт.

2

89500409030

PLATE

1шт.

3

8900124628

BOLT

M6 x 20

6шт.

4

8900116550

BOLT,M6 x 10mm

M6 x 10

2шт.

5

89500406751

HORN

1шт.

6

8900162377

CONNECTING ROD

1шт.

7

8900184223

HOSE CLAMP

1шт.

8

8900049208

NUT

2шт.

9

8900141565

WASHER

3шт.

10

89500418765

SENSOR

Replaces 89500421111 Sensor

1шт.

Code MUX68 is generated by this potentiometer. Before ordering a new one, check for dirt build up on the rear frame rail. If there is a buildup and the bed cannot drop to a complete down position the code will also write. Chipping off any dirt and debris may correct the codes.

1шт.

11

8900049140

PIN, SPLIT (COTTER)

PIN, COTTER

1шт.

12

89500419769

BRACKET

1шт.

13

8917014408

SCREW,M4 x 10mm

M4 x 10

2шт.

14

89500402886

VIDEO CAMERA

1шт.

15

8900049243

COLLAR

1шт.

16

8900115122

NUT

2шт.

18

8900192751

BRACKET

1шт.

19

8900115555

BOLT,M8 x 30mm

M8 x 30

2шт.

20

89500402887

WIRE HARNESS

1шт.

21

8900119991

BOLT

M5 x 16

2шт.

22

8900012607

NUT

M5; S.L.

2шт.
