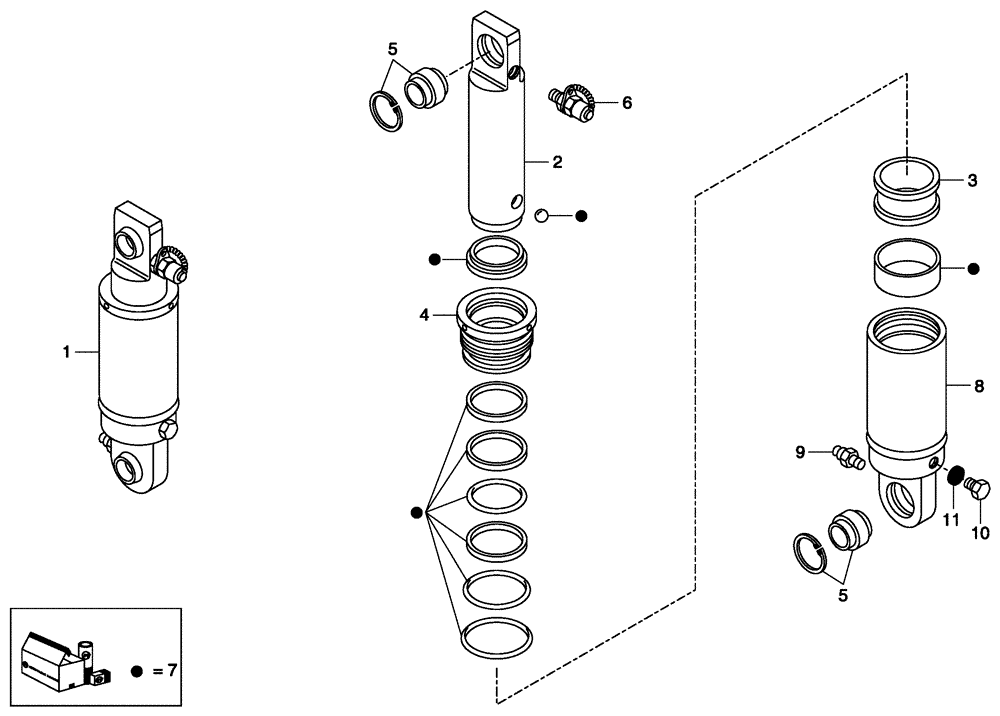

Запчасти Case 335 (38D00000014[001]) - FRONT SUSPENSION CYLINDER (09) - Implement / Hydraulics / Frame / Brakes

1

89500408703

CYLINDER

ASSY

1шт.

Include(s) 2 - 11

1шт.

2

8900132333

PISTON ROD

1шт.

3

8900132334

PISTON

1шт.

4

8900132335

RING

1шт.

5

8900132336

BALL JOINT

2шт.

6

8998341362

VALVE

Air; Replaces 8900132337 Valve; Ref Bulletin SI-ADT 002 08 And 8900046408 Valve

1шт.

6-1

89500431250

ADAPTER

Not Illustrated; Ref Bulletin SI-ADT 002 08

1шт.

6-2

8900030687

SEALING WASHER

Not Illustrated; Ref Bulletin SI-ADT 002 08

1шт.

7

8900132338

SEAL KIT

1шт.

8

8900132339

BARREL

1шт.

9

8900011021

LUBE NIPPLE

LUBRICATOR

1шт.

10

8900046575

PLUG

1шт.

11

8900104877

SEAL

1шт.
