(67A03011463[001]) - ELECTRICAL CIRCUIT FRAM - REAR LIGHTS - HORN (87552007)

Запчасти Case 335 (67A03011463[001]) - ELECTRICAL CIRCUIT FRAM - REAR LIGHTS - HORN (87552007) (13) - Electrical System / Decals

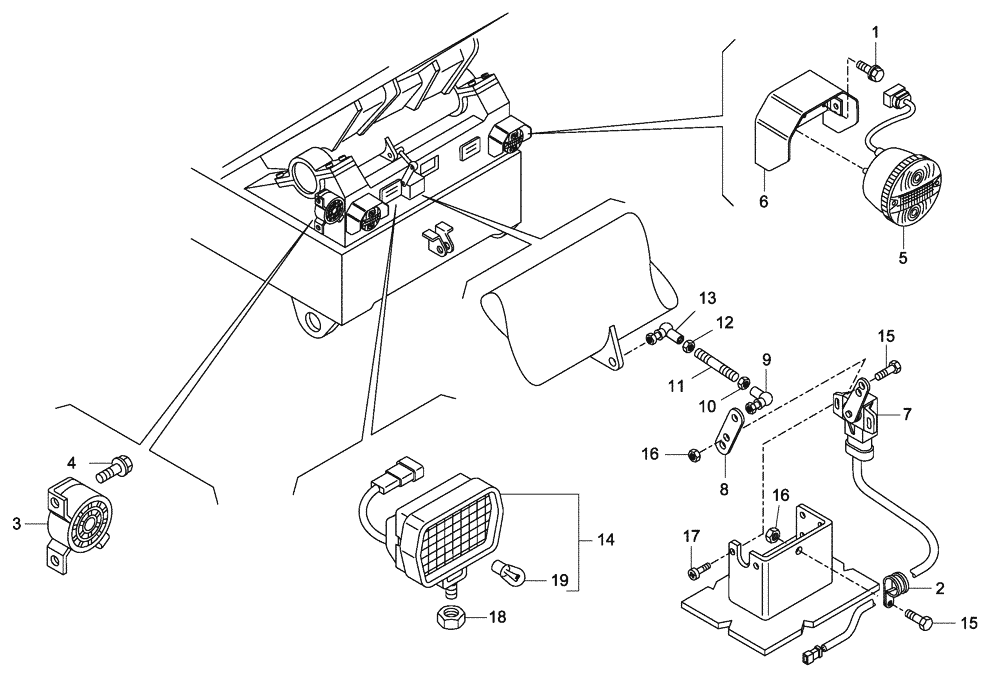

Схема запчастей Case 335 - (67A03011463[001]) - ELECTRICAL CIRCUIT FRAM - REAR LIGHTS - HORN (87552007) (13) - Electrical System / Decals
16
10
13
15
16
5
2
6
8
15
18
3
17
19
11
7
9
12
4
14
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8900121098

BOLT,M8 x 16mm

M8 x 16

4шт.

2

8900049243

COLLAR

2шт.

3

89500406751

HORN

1шт.

4

8900116550

BOLT,M6 x 10mm

M6 x 10

2шт.

5

8900193803

TAIL LAMP

REAR

2шт.

6

89500408616

SHIELD

2шт.

7

89500418765

SENSOR

1шт.

Code MUX68 is generated by this potentiometer. Before ordering a new one, check for dirt build up on the rear frame rail. If there is a buildup and the bed cannot drop to a complete down position the code will also write. Chipping off any dirt and debris may correct the codes.

1шт.

8

89500418764

BRACKET

1шт.

9

8998198141

BALL JOINT

1шт.

10

8916981731

NUT

1шт.

11

89500413861

THREADED ROD

1шт.

12

8900140728

NUT

1шт.

13

8900020110

BALL JOINT

1шт.

14

89500402930

LIGHT

2шт.

Include(s) 19

1шт.

15

8900124628

BOLT

M6 x 20

2шт.

16

8900125009

NUT

2шт.

17

8900125022

SCREW,M5 x 10mm

M5 x 10

2шт.

18

8900140777

NUT

2шт.

19

8998340094

BULB

1шт.
