(67A00011774[001]) - WIRE HARNESSES, ENGINE / GEARBOX / BATTERY / BRAKE (SIMPLE MUX P.I.N. HHD0335BN8PG58100 AND AFTER) (87746233)

Запчасти Case 335B (67A00011774[001]) - WIRE HARNESSES, ENGINE / GEARBOX / BATTERY / BRAKE (SIMPLE MUX P.I.N. HHD0335BN8PG58100 AND AFTER) (87746233) (13) - Electrical System / Decals

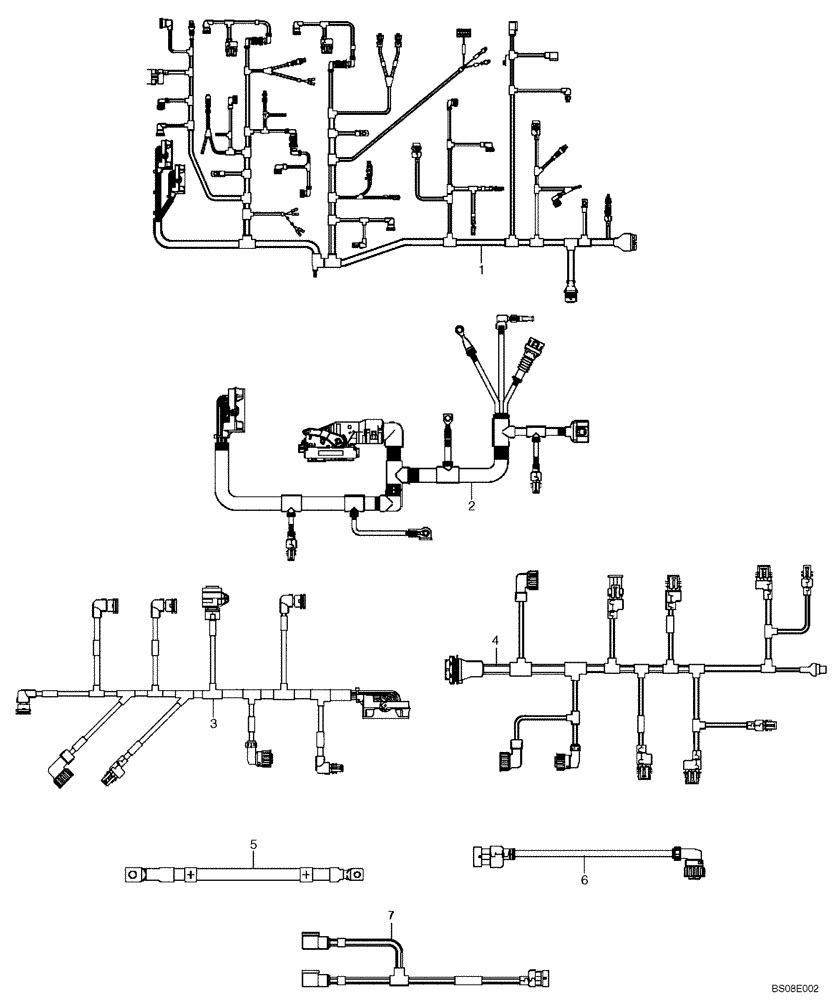

Схема запчастей Case 335B - (67A00011774[001]) - WIRE HARNESSES, ENGINE / GEARBOX / BATTERY / BRAKE (SIMPLE MUX P.I.N. HHD0335BN8PG58100 AND AFTER) (87746233) (13) - Electrical System / Decals
6
7
3
2
1
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

89500423521

HARNESS

HARNESS, WIRE, FRONT FRAME SIMPLE MUX

1шт.

2

89500415489

WIRE HARNESS

Engine

1шт.

3

89500408931

WIRE HARNESS

Transmission

1шт.

4

89500423565

HARNESS

WIRE, Rear Frame Simple Mux

1шт.

5

89500408933

NEG BATTERY CABLE

1шт.

6

89500417996

WIRE HARNESS

Brake Cooling

1шт.

7

89500426478

WIRE HARNESS

Dump Body Simple Mux

1шт.
