(67A00001462[001]) - ELECTRICAL CIRCUIT - STARTER MOTOR - BATTERY CUT-OUT (87311235)

Запчасти Case 340 (67A00001462[001]) - ELECTRICAL CIRCUIT - STARTER MOTOR - BATTERY CUT-OUT (87311235) (55) - ELECTRICAL SYSTEMS

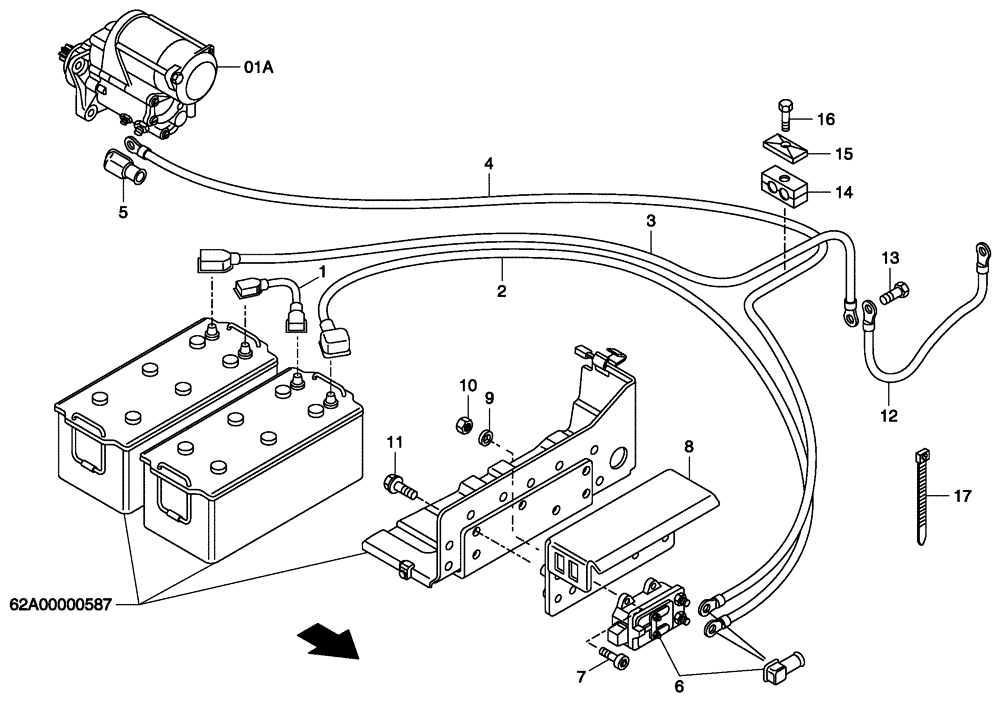

Схема запчастей Case 340 - (67A00001462[001]) - ELECTRICAL CIRCUIT - STARTER MOTOR - BATTERY CUT-OUT (87311235) (55) - ELECTRICAL SYSTEMS
13
11
6
3
15
9
4
7
2
10
5
14
1
17
12
8
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8900115153

CABLE

1шт.

2

89500405253

CABLE

POSITIVE - BATT - DISCONN. DEVIC

1шт.

3

8900189067

CABLE

NEGATIVE - BATTERY

1шт.

4

89500409331

CABLE

NEGATIVE - STARTER MOTOR

1шт.

5

8900142325

PROTECTION CAP

1шт.

6

8900183704

BATTERY CUT-OUT

1шт.

7

8900003224

BOLT,M8 x 30mm

M8X30

4шт.

8

89500408943

SUPPORT

1шт.

9

8900956220

LOCK WASHER

8

4шт.

10

8900115122

NUT

M8

4шт.

11

8900115555

BOLT,M8 x 30mm

M8X30

6шт.

12

89500409332

CABLE

GROUND - FRAME - ENGINE

1шт.

13

8900121586

SCREW,M12 x 25mm

M12X25

1шт.

14

8900164549

CLAMP

2шт.

15

8900174958

COVER PLATE

1шт.

16

8900115121

BOLT,M8 x 40mm

M8X40

1шт.

17

8900184223

HOSE CLAMP

1шт.

18

89500418404

ELECTRIC CABLE

If Used; Not Illustrated Alternator To Emergency Shut Off Switch

1шт.
