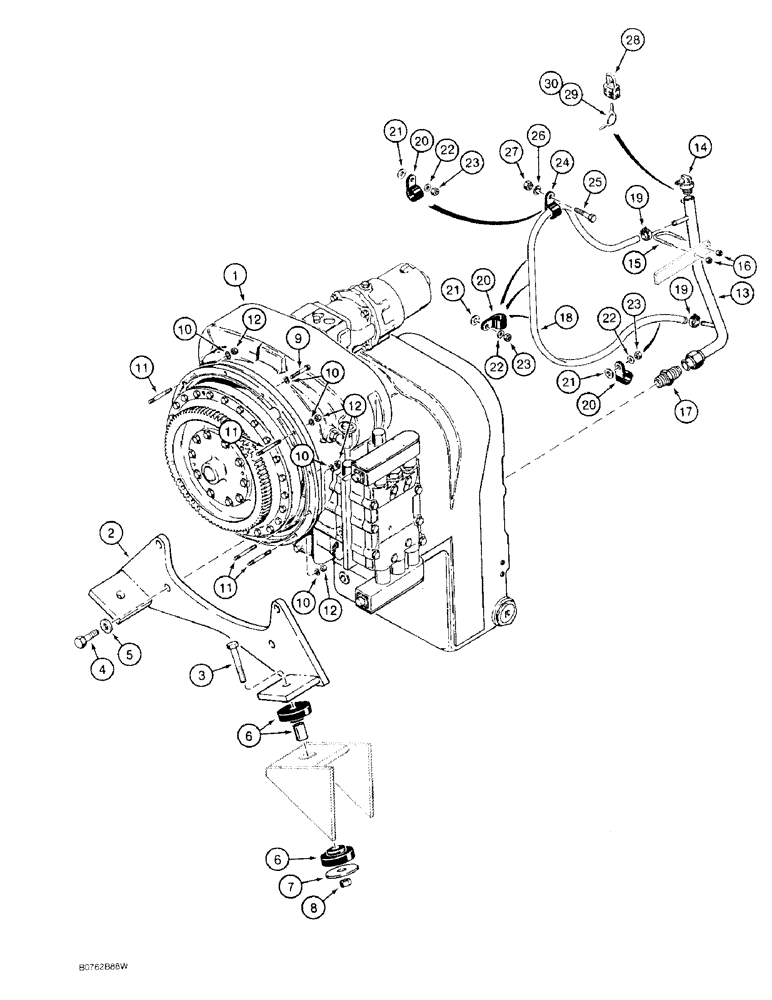

Запчасти Case 621 (6-004) - TRANSMISSION MOUNTING AND SIGHT GAUGE, PRIOR TO P.I.N. JAK0020901 (06) - POWER TRAIN

LC123645

CORE-TRANSMISSION

RETURN NUMBER - use this part number to return transmission core for credit when using a remanufactured assembly

1шт.

1

L123645

TRANSMISSION

ASSEMBLY - prior to P.I.N. JAK0020620, parts list Figures 6-6 through 6-34, no longer available, order L127455 transmission and two L127319 harnesses shown on Figure 4-24

1шт.

LR127455

REMAN-TRANSMISSION

TRANSMISSION - remanufactured (North America only), component parts shown on this Figure do not apply to the remanufactured assembly

1шт.

LC127455

CORE-TRANSMISSION

RETURN NUMBER - use this part number to return transmission core for credit when using a remanufactured assembly

1шт.

1

L127455

TRANSMISSION

ASSEMBLY - P.I.N. JAK0020620 through JAK0020900, parts list Figures 6-6 through 6-34

1шт.

Models prior to P. I. N. JAK0020620 using P/N L127455 replacement transmission require two P/N L127319 harnesses shown on Fig. 4-24.

1шт.

2

L118871

BRACKET

- transmission mount

1шт.

3

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

2шт.

4

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

4шт.

5

L79179

WASHER

- flat, 3/4", hardened

4шт.

6

L111929

SHOCK ABSORBER

MOUNT - transmission, rubber, three-piece

2шт.

7

196-31

WASHER

- flat, 3/4", hardened, plated

2шт.

8

131-450

NUT,3/4"-10

NUT - hex, self-locking, 3/4" - 10 NC

2шт.

9

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

8шт.

10

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

12шт.

11

L118998

STUD

- adapter ring, converter housing

4шт.

12

825-1410

NUT,M10, Cl 8

4шт.

13

L126840

TUBE,31.75 mm OD

- filler, transmission oil

1шт.

14

L126498

PLUG

CAP - filler tube, transmission oil

1шт.

15

L58066

BOLT

U-BOLT - threaded, 5/16" - 18 NC, filler, Serial Range: tube-bracket

1шт.

16

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

17

218-1029

HYD CONNECTOR,1 5/8"-12, 37 Degree x 1"-11 1/2, NPTF

ADAPTER - straight

1шт.

18

L126870

TUBE,12.7 mm ID x 19.1 mm OD x 1750 mm L

HOSE - 13 mm ID x 1750 mm long, plastic, sight gauge

1шт.

The actual sight gauge is L116247. It is the same as the hydraulic tank sight gauge and is shown in the later serial number 621 book for the transmission sight gauge.

1шт.

19

214-251

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP - hose, sight gauge hose to filler tube

2шт.

20

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- hose, sight gauge

4-5шт.

21

S95569

WASHER

- special, flat, used as a spacer

4-5шт.

22

495-21044

WASHER,3/8"

If used 3/8"

4-5шт.

23

131-217

LOCK NUT

NUT - hex, self-locking, 3/8" - 16 NC, plated, grade 8

4-5шт.

24

T42284

CLAMP

- hose, sight gauge hose to rear frame, if used

1шт.

25

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex head, 1/2" - 13 NC x 2-1/4", zinc plated

1шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

27

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

28

D93753

PADLOCK

- includes keys, if used, transmission filler tube

1шт.

29

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

30

R29555

KEY

- for Master padlock only, if used

2шт.
