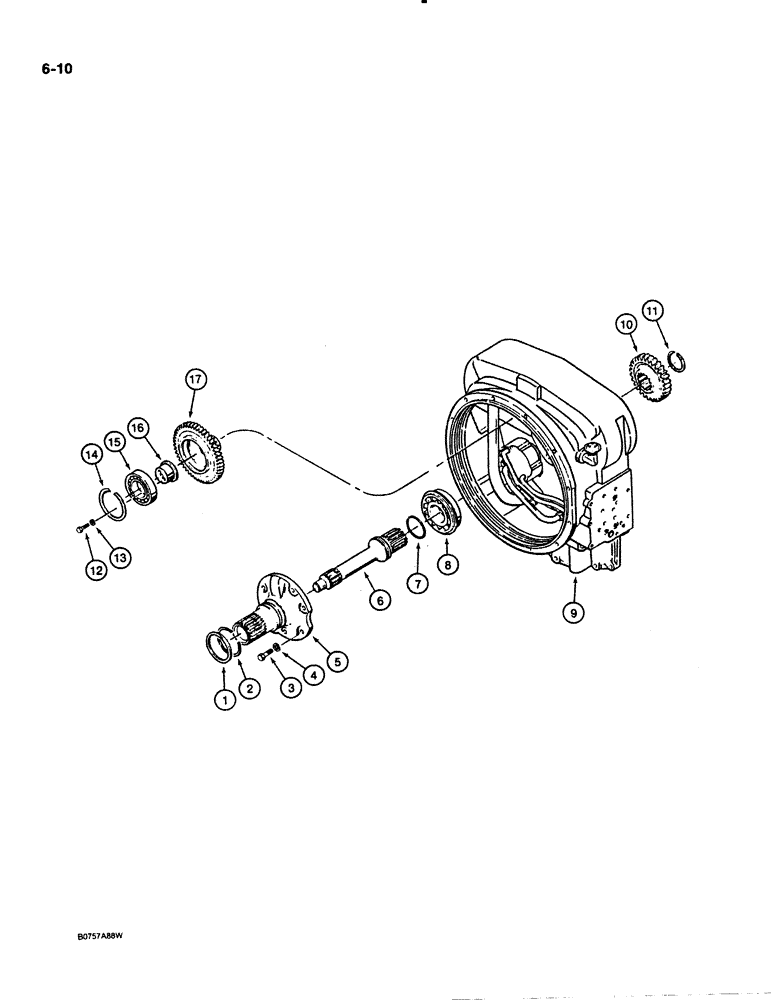

Запчасти Case 621 (6-010) - TRANSMISSION ASSEMBLY, TURBINE SHAFT AND PUMP DRIVE, PRIOR TO P.I.N. JAK0020901 (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 6-4 for correct transmission, parts lists Figures 6-6 through 6-34

1шт.

1

D80312

SEAL

RING - seal, stator support

1шт.

2

D80313

SPRING

- expander

1шт.

3

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

4

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

6шт.

5

D80314

BRACKET

SHAFT AND FLANGE - stator support

1шт.

6

N8845

SHAFT

- turbine

1шт.

7

A18012

RING,Locking, 54.74mm ID x 60.33mm OD x 3.15mm Thk

- seal, turbine shaft

1шт.

8

N7276

BALL BEARING,50mm ID x 110mm OD x 27mm W

BEARING - turbine shaft

1шт.

9

S300028

HOUSING

- converter, parts list Figure 6-6

1шт.

10

N13329

GEAR

- turbine shaft

1шт.

11

A27089

SNAP RING,2.36mm Thk, Ext

RING - retaining, turbine shaft

1шт.

12

114-302

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

- hex head, 7/16" - 20 NF x 1-1/4", plated

6шт.

13

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

14

L33464

RING, SNAP

RING - retaining, drive gear

3шт.

15

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - drive gear

3шт.

16

L33463

BRACKET

SUPPORT - bearing

3шт.

17

L33465

GEAR WHEEL

GEAR - drive, torque converter

3шт.
