(6-036) - TRANSMISSION HYDRAULIC CIRCUIT, P.I.N. JAK0020901 THRU JAK0021336

Запчасти Case 621 (6-036) - TRANSMISSION HYDRAULIC CIRCUIT, P.I.N. JAK0020901 THRU JAK0021336 (06) - POWER TRAIN

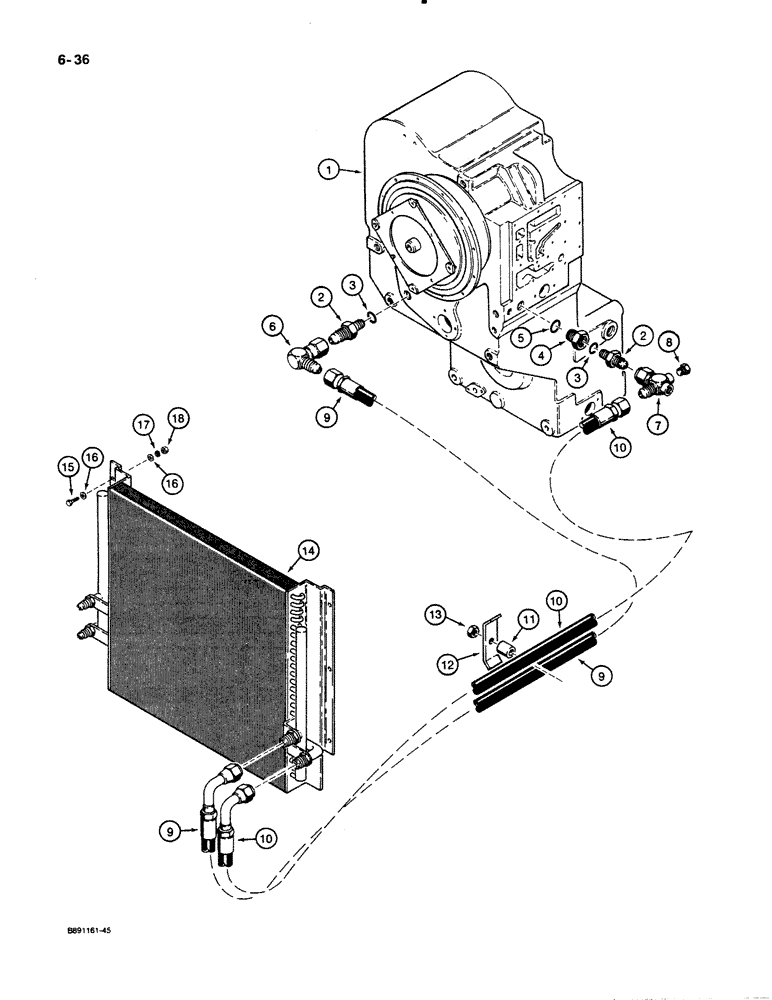

Схема запчастей Case 621 - (6-036) - TRANSMISSION HYDRAULIC CIRCUIT, P.I.N. JAK0020901 THRU JAK0021336 (06) - POWER TRAIN
3
16
3
6
5
2
9
2
12
11
14
10
1
17
13
7
15
9
16
9
10
18
6
4
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

L127202

TRANSMISSION

TRANSMISSION ASSEMBLY - Includes: Ref. 2 through 5 on Figure 6-36, Ref. 12 through 16 and Ref. on Figure 6-40, and all items on Figures 6-42 through 6-68 and Figure 7-4

1шт.

1

LR127202

REMAN-TRANSMISSION

Remanufactored Transmission, 621, Prior to JAK0021701, Model Number 4WG180, Stock Number 4644 004 208

1шт.

1

LC127202

CORE-TRANSMISSION

Return Number

1шт.

2

S300453

FITTING

ADAPTER - hydraulic, included with L127202 transmission

2шт.

3

S300450

O-RING,23.3mm ID x 2.4mm Width

O-RING - adapter, included with L127202 transmission

2шт.

Part of seal and gasket kit P/N S300588.

1шт.

4

S300452

RESTRICTOR

REDUCER - hydraulic, included with L127202 transmission

1шт.

5

81284C1

O-RING,2.2mm Thk x 33mm ID

O-RING - reducer, included with L127202 transmission

1шт.

Part of seal and gasket kit P/N S300588.

1шт.

6

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

ELBOW - 90 deg, 1-5/16-12 flare x 1-5/16-12 inch fem swivel

1шт.

7

L125441

FITTING

CROSS - hydraulic

1шт.

8

221-1664

PLUG

PLUG - hex, 1/2 inch PT

1шт.

9

L125496

HOSE ASSY.

HOSE - 2550 mm long, Serial Range: cooler-transmission

1шт.

10

L127401

HOSE ASSY.

HOSE - 2300 mm long, Serial Range: transmission-cooler

1шт.

11

E62230

SPACER

SPACER - hose, clamp to rear chassis

3шт.

12

R34049

CLAMP

CLAMP - hose to rear chassis

3шт.

13

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

3шт.

14

A184804

COOLER

COOLER - oil, transmission

1шт.

15

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT - hex, 3/8 NC x 1 inch

6шт.

16

495-21044

WASHER,3/8"

WASHER, (flat, 7/16 x 1 x 5/64 inch) 3/8"

12шт.

17

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

6шт.

18

425-106

NUT,3/8"-16, Cl 5

NUT, 3/8"-16, G5

6шт.

S300588

SEAL PACKAGE

KIT - seal and gasket, Includes: Ref. 3 and 5 on this figure and items on Figures 6-36 through 6-68 and 7-4

1шт.
