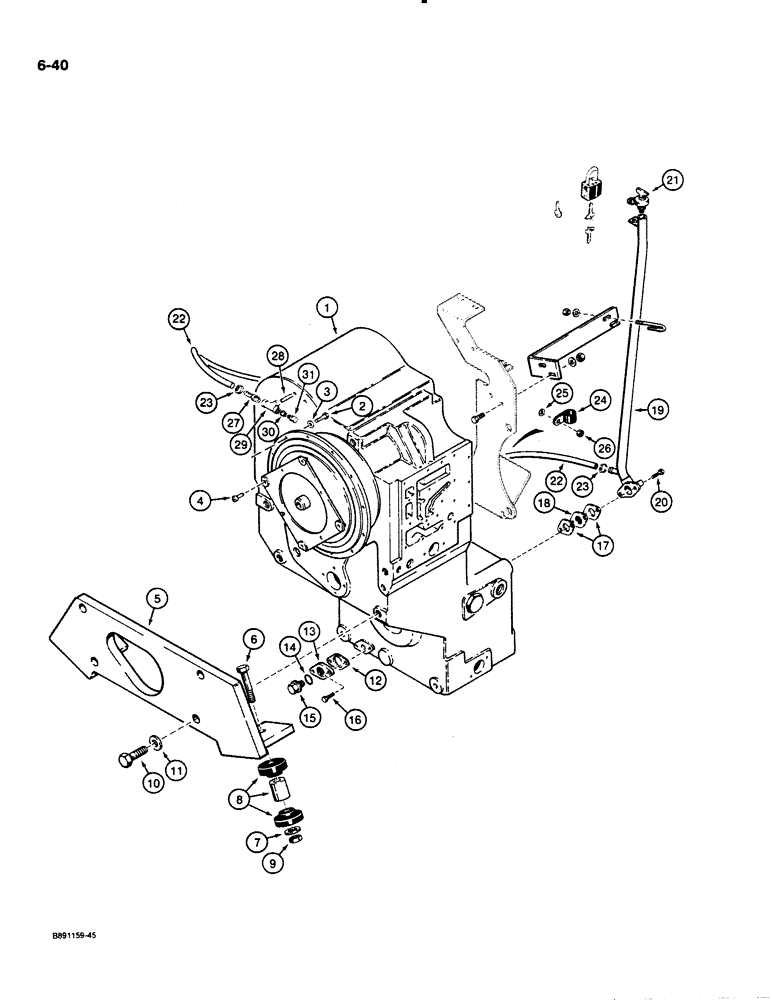

Запчасти Case 621 (6-040) - TRANSMISSION MOUNTING AND SIGHT GAUGE, P.I.N. JAK0020901 AND AFTER (06) - POWER TRAIN

1

L127202

TRANSMISSION

TRANSMISSION ASSEMBLY - includes items 2 through 5 on Figure 6-36, items 12 through 16 and item 31 on Figure 6-40, and all items on Figures 6-42 through 6-66 and Figure 7-4

1шт.

1

LR127202

REMAN-TRANSMISSION

Remanufactored Transmission, 621, Prior to JAK0021701, Model Number 4WG180, Stock Number 4644 004 208

1шт.

1

LC127202

CORE-TRANSMISSION

Return Number

1шт.

2

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

BOLT - hex, 10 mm - 1.5 x 40 mm

12шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

WASHER, 13/32" x 13/16" x .089", HDN

12шт.

4

L125431

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 8.8

SCREW, hex socket, 10 mm - 1.5 x 35 mm

4шт.

5

L127262

SUPPORT

BRACKET - transmission mounting

1шт.

6

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

BOLT, Hex, 3/4"-10 x 4 1/2", G5

2шт.

7

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

WASHER - flat, 25/32 x 1-3/8 x 1/8 inch, hardened

2шт.

8

L111929

SHOCK ABSORBER

MOUNT - transmission, three piece

2шт.

9

131-450

NUT,3/4"-10

NUT - hex, self-locking, 3/4 inch NC

2шт.

10

826-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

BOLT - hex, 20 mm - 2.5 x 55 mm

4шт.

11

L79179

WASHER

WASHER - flat, 13/16 x 1-15/32 x 5/32, hardened

4шт.

12

S300507

GASKET

GASKET - cover plate, included with L127202 transmission

1шт.

See Fig. 4-14 for the transmission speed selector control and Fig. 7-6 for the parking brake cable mounting bracket.

1шт.

Part of seal and gasket kit P/N S300588 and parts on figures 6-36 through 6-68 and 7-4

1шт.

13

S300509

COVER

PLATE - cover, included with L127202 transmission

1шт.

14

E135040

SEALING WASHER,M22 x 27 x 1.5

SEAL - cover plate, included with L127202 transmission

1шт.

See Fig. 4-14 for the transmission speed selector control and Fig. 7-6 for the parking brake cable mounting bracket.

1шт.

Part of seal and gasket kit P/N S300588 and parts on figures 6-36 through 6-68 and 7-4

1шт.

15

E135080

PLUG

PLUG - hex, cover plate, included with L127202 transmission

1шт.

16

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

BOLT - hex, 8 mm - 1.25 x 16 mm, included with L127202

1шт.

*

transmission

2шт.

17

E135228

GASKET

GASKET - fill tube

2шт.

18

E135229

FILTER SCREEN

SCREEN - fill tube

1шт.

19

L127394

TUBE,31.75 mm OD

TUBE - fill, transmission

1шт.

20

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

BOLT, Hex, M8 x 50, 10.9

2шт.

21

L126498

PLUG

CAP - fill tube

1шт.

22

L127400

HOSE

HOSE - 12.7 x 19.1 x 1500 mm long, plastic, sight gauge

1шт.

23

214-251

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP - hose, No. 6, worm drive, type F

2шт.

24

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

CLAMP - medium closed, 3/4 inch diameter

4шт.

25

S95569

WASHER

WASHER - flat, 9/16 x 1-3/8 x 1/8 inch, hardened

4шт.

26

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

4шт.

27

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

FITTING, , Adapter, stem, straight 1/2" Hose X 3/8" NPTF Beaded

1шт.

28

221-103

FITTING

NIPPLE - 1/8 x 1 inch long

1шт.

29

221-434

TEE,3/8" NPT x 1/8 NPT Br

TEE - 1/8 fem PT branch x 3/8 inch fem PT run

1шт.

30

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

REDUCER - 3/8 x 1/8 inch PT

1шт.

31

N14704

BREATHER

BREATHER - sight gauge, included with L127202 transmission

1шт.

S300588

SEAL PACKAGE

KIT - seal and gasket, Includes Refs. 12 and 14 on Figures 6-36 through 6-68 and 7-4

1шт.

See Fig. 4-14 for the transmission speed selector control and Fig. 7-6 for the parking brake cable mounting bracket.

1шт.
