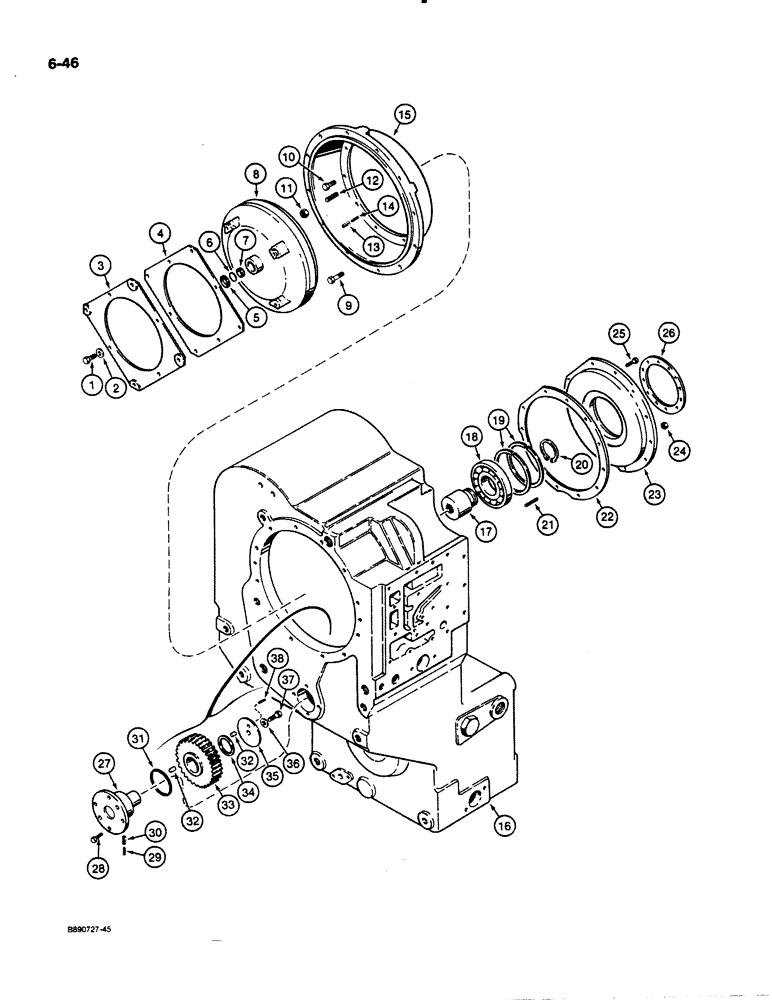

Запчасти Case 621 (6-046) - TRANSMISSION ASSEMBLY, IDLER GEAR, CONVERTER AND COVER, P.I.N. JAK0020901 AND AFTER (06) - POWER TRAIN

L127202

TRANSMISSION

TRANSMISSION ASSEMBLY - includes items 2 through 5 on Figure 6-36, items 12 through 16 and item 31 on Figure 6-40, and all items on Figures 6-42 through 6-68 and Figure 7-4

1шт.

LR127202

REMAN-TRANSMISSION

Remanufactored Transmission, 621, Prior to JAK0021701, Model Number 4WG180, Stock Number 4644 004 208

1шт.

LC127202

CORE-TRANSMISSION

Return Number

1шт.

1

826-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

BOLT - hex, 10 mm - 1.5 x 20 mm, Grade 10.9

4шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

WASHER - flat, 11 x 21 x 2 mm

4шт.

3

E135238

PLATE

PLATE - flex, converter, stepped (Replaces E135237)

1шт.

4

E135237

PLATE

PLATE - flex, converter, plain (Replaces E135238)

1шт.

5

R16289

SNAP RING,1.06", Int, #106

Ring, Snap, , converter 1.06", Int, #106

1шт.

6

E135035

O-RING,25 mm ID

SEAL - x 3, O-ring 25 mm ID

1шт.

Part of seal and gasket kit P/N S300588 and parts on figures 6-36 through 6-68 and 7-4

1шт.

7

E135167

WASHER

WASHER - sealing

1шт.

8

S300577

CONVERTER

CONVERTER - transmission

1шт.

9

826-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

BOLT - hex head, 10 mm - 1.5 x 50 mm (10.9)

2шт.

10

826-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

BOLT - hex head, 10 mm -1.5 x 35 mm (10.9)

11шт.

11

825-1010

NUT,M10, Cl 8

NUT - hex, 10 mm x 1.5

1шт.

12

E135083

STUD

STUD - 10 mm x 1.5 x 30 mm

1шт.

13

E135027

PIN, SPLIT (COTTER)

PIN, COTTER PIN - roll, 10 mm OD x 28 mm

2шт.

14

E135025

PIN

PIN - roll, 6 mm OD x 28 mm

2шт.

15

E135283

COVER

HOUSING - converter

1шт.

16

E135249

HOUSING

HOUSING - transmission

1шт.

17

E135278

DRIVE

CONNECTOR - shaft

1шт.

18

E135046

BALL BEARING

BEARING - cover

1шт.

19

E135018

RING, SNAP

RING SNAP RING - snap, internal, 85 mm x 1.7 thick

2шт.

20

933283R1

SNAP RING,M45, Ext

RING - snap, external, 45 mm x 1.75 thick

1шт.

21

E135084

STUD

STUD - 8 mm - 1.25 x 18 mm

1шт.

22

E135279

GASKET

GASKET - cover

1шт.

Part of seal and gasket kit P/N S300588 and parts on figures 6-36 through 6-68 and 7-4

1шт.

23

E135281

PLATE

COVER - flange, pump

1шт.

24

825-1408

NUT,M8, Cl 8

Nut, M8, Cl 8

1шт.

25

30002R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

BOLT - hex, 8 mm - 1.25 x 20 mm, class 10.9

10шт.

26

N14710

SEALING RING

GASKET - cover,outer

1шт.

Part of seal and gasket kit P/N S300588 and parts on figures 6-36 through 6-68 and 7-4

1шт.

27

S300454

AXLE

AXLE - Stub, Idler gear

1шт.

28

826-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

BOLT - hex, 8 mm - 1.25 x 20 mm, class 10.9

4шт.

29

E135022

DOWEL

PIN - roll, 1.5 mm OD x 10 mm

1шт.

30

E135023

DOWEL

PIN - roll, 2.5 mm OD x 10 mm

1шт.

31

S300455

O-RING,3mm Thk x 57mm ID

O-RING - stub axle

1шт.

Part of seal and gasket kit P/N S300588 and parts on figures 6-36 through 6-68 and 7-4

1шт.

32

S300458

SET

KIT - needle bearing

1шт.

33

S300578

PINION

GEAR - idler

1шт.

34

E135003

PISTON RING

RING - idler gear

1шт.

35

S300456

BEARING WASHER

COVER - bearing

1шт.

36

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

WASHER - flat, 11 x 21 x 2 mm

1шт.

37

826-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

BOLT - hex, 10 mm - 1.5 x 20 mm, Grade 10.9

1шт.

38

E135024

DOWEL

PIN - roll, 4 mm OD x 10 mm

1шт.

S300588

SEAL PACKAGE

KIT - seal and gasket, Includes Refs. 6, 22, 26 and 31 on Figures 6-36 through 6-68 and 7-4

1шт.

P/N L128777 Spacer provides adequate clearance between the flywheel and torque converter for the flex plates . Spacer helps to increase the contact area between the flywheel and torque converter.

1шт.
