(6-062) - TRANSMISSION ASSEMBLY, OUTPUT SHAFT AND GEAR, P.I.N. JAK0020901 AND AFTER

Запчасти Case 621 (6-062) - TRANSMISSION ASSEMBLY, OUTPUT SHAFT AND GEAR, P.I.N. JAK0020901 AND AFTER (06) - POWER TRAIN

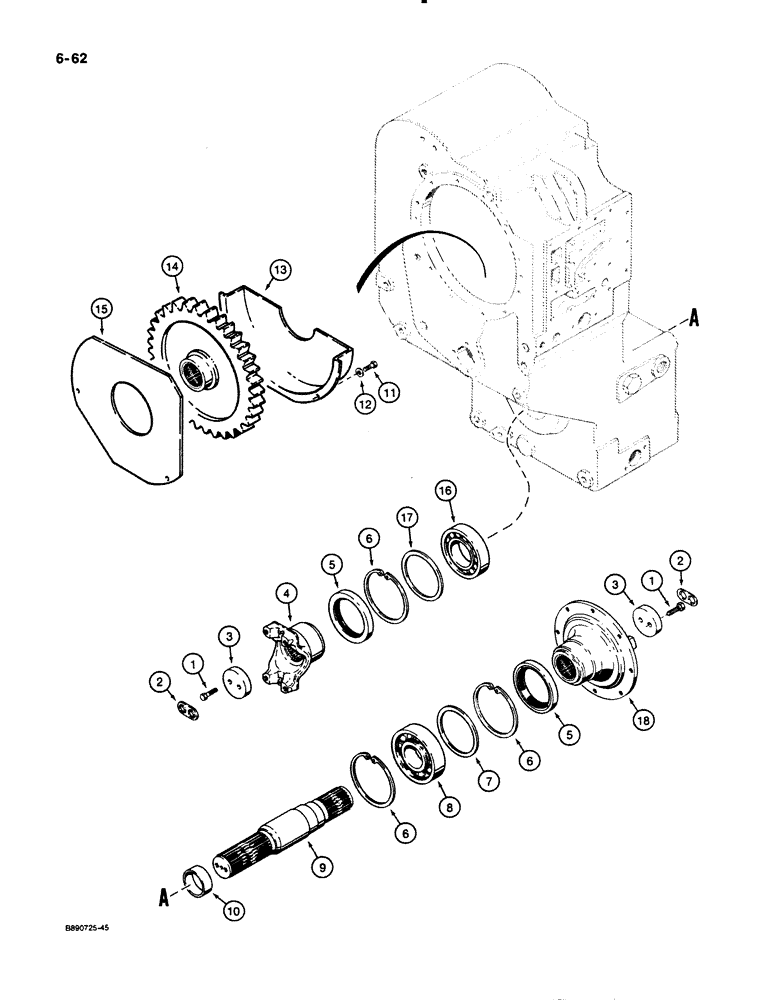

Схема запчастей Case 621 - (6-062) - TRANSMISSION ASSEMBLY, OUTPUT SHAFT AND GEAR, P.I.N. JAK0020901 AND AFTER (06) - POWER TRAIN
3
8
13
14
5
10
7
16
3
12
1
4
5
9
2
6
18
17
6
15
1
2
11
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

L127202

TRANSMISSION

TRANSMISSION ASSEMBLY - includes items 2 through 5 on Figure 6-36, items 12 through 16 and item 31 on Figure 6-40, and all items on Figures 6-42 through 6-68 and Figure 7-4

1шт.

LR127202

REMAN-TRANSMISSION

Remanufactored Transmission, 621, Prior to JAK0021701, Model Number 4WG180, Stock Number 4644 004 208

1шт.

LC127202

CORE-TRANSMISSION

Return Number

1шт.

1

826-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

BOLT - hex, 10 mm - 1.5 x 30 mm

4шт.

2

E135165

PLATE

PLATE, LARGE PLATE - locking

2шт.

3

E135181

WASHER

RETAINER - flange

2шт.

4

S300768

SHIN

FLANGE - output, rear

1шт.

5

E135151

OIL SEAL

SEAL - oil, flange

2шт.

Part of seal and gasket kit P/N S300588 and parts on figures 6-36 through 6-68 and 7-4

1шт.

6

S300472

CIRCLIP

RING - snap, internal

3шт.

7

S301086

SHIM,0.2mm Thk

SHIM, , Bearing 0.2mm Thk

1шт.

7

S300473

SHIM,0.3mm Thk

SHIM, , Bearing 0.3mm Thk

1шт.

7

S300474

SHIM,0.5mm Thk

SHIM, , Bearing 0.5mm Thk

1шт.

7

E135096

SHIM,100mm ID x 119.8mm OD x 1.5mm Thk

SHIM, , Bearing 1.5mm Thk

1шт.

7

E135095

SHIM,1.6mm Thk

SHIM, , Bearing 1.6mm Thk

1шт.

7

E135094

SHIM,100mm ID x 119.8mm OD x 1.7mm Thk

SHIM, , Bearing 1.7mm Thk

1шт.

7

E135093

SHIM,100mm ID x 119.8mm OD x 1.8mm Thk

SHIM, , Bearing 1.8mm Thk

1шт.

8

L31494

BALL BEARING

BEARING - ball

1шт.

9

E135255

SHAFT

SHAFT - output

1шт.

10

E135112

BUSHING

BUSHING - output shaft

1шт.

11

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

BOLT - hex head, 8 mm - 1.25 x 16mm

2шт.

12

934006R1

WASHER,M8 x 16 x 1.6

WASHER - flat, special

2шт.

13

S300451

COVER

COVER - output gear

1шт.

14

E135256

PINION

GEAR - output

1шт.

15

E135245

PLATE

PLATE - output gear

1шт.

16

S300471

BEARING, ROLLER,65 mm ID x 120 mm OD x 23 mm

BEARING - roller

1шт.

17

E135164

RACE

RACE - bearing

1шт.

18

S300580

SHIN

FLANGE - output, parking brake, front, see Figure 7-4 for transmission mounted parking brake

1шт.

S300588

SEAL PACKAGE

KIT - seal and gasket, Includes Ref. 5 on Figures 6-36 through 6-68 and 7-4

1шт.
