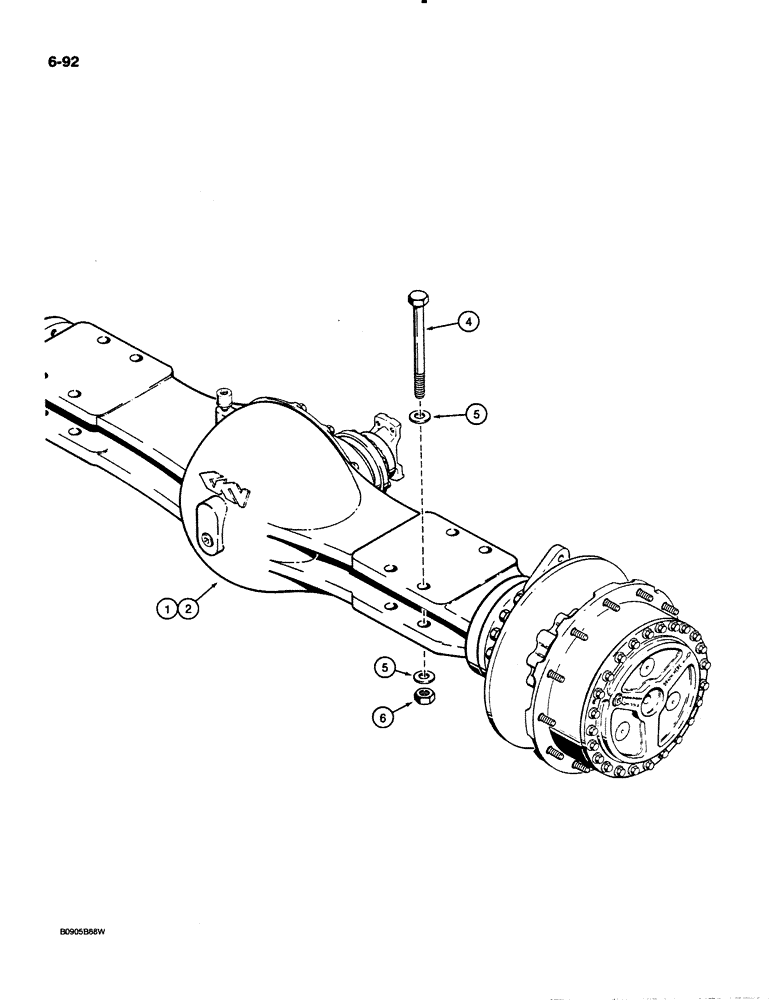

Запчасти Case 621 (6-092) - AXLE ASSEMBLIES AND MOUNTING, P.I.N. JAK0020901 AND AFTER (06) - POWER TRAIN

1

L127234

4WD AXLE ASSY

AXLE ASSEMBLY - front, P.I.N. JAK0020901 and after, parts list Figures 6-94, 6-96, 6-102, and 6-104

1шт.

2

L127235

AXLE HOUSING

AXLE ASSEMBLY - rear, P.I.N. JAK0020901 and after, if used, parts list Figures 6-98 through 6-104

1шт.

3

L127236

AXLE HOUSING

AXLE ASSEMBLY - rear, with no-spin differential, P.I.N. JAK0020901 and after, if used, parts list Figures 6-98 through 6-104

1шт.

4

116-904

BOLT,Hex, 1" - 14 x 10", Gr 8

- hex, 1 NF x 10 inch, grade 8

16шт.

5

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, 1-1/16 x 1-7/8 x 9/64 inch, hardened

32шт.

6

131-188

LOCK NUT,1"-14, GB

NUT - hex, self-locking, 1 inch NF

16шт.
