(6-106) - WHEELS

Запчасти Case 621 (6-106) - WHEELS (06) - POWER TRAIN

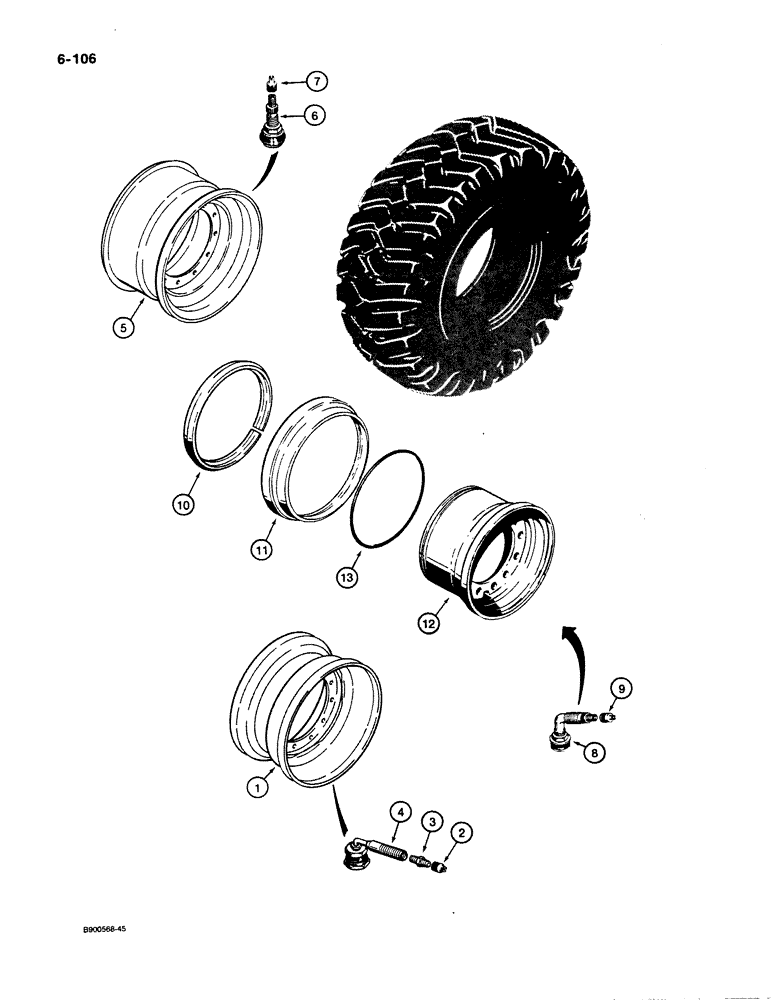

Схема запчастей Case 621 - (6-106) - WHEELS (06) - POWER TRAIN
12
7
1
10
13
4
2
8
9
5
6
3
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

L124830

WHEEL

- rim, one piece, for 15.5 x 25 tires

4шт.

2

L19664

VALVE STEM

CAP - valve, for 15.5 x 25 tires, one piece wheel

4шт.

3

L11405

VALVE

- tubeless tire, for 15.5 x 25, one piece wheel

4шт.

Ref #3 - Should be the L11406 Adapter 04/19/96

1шт.

4

L11406

ADAPTER

- valve, for 15.5 x 25 tires, one piece wheel

4шт.

Ref #4 - Should be the L11405 Valve 04/19/96

1шт.

5

L127076

RIM

WHEEL - rim, for 17.5 x 25 tires, one piece

4шт.

6

A20058

VALVE STEM

- Wheel, for 17.5 x 25 tires, one piece

4шт.

7

L19664

VALVE STEM

CAP - valve stem, for 17.5 x 25 tires, one piece wheel

1шт.

8

L48133

VALVE STEM

- Tubeless tire, for 17.5 x 25, three piece wheel

4шт.

9

L19664

VALVE STEM

CAP - valve, for 17.5 x 25 tires, three piece wheel

1шт.

L118704

RIM

WHEEL ASSEMBLY - rim, three piece, for 17.5 x 25 tires

4шт.

10

N8338

RING

- locking, for wheels stamped with No. 0111545400, for 17.5 x 25 tires - three piece wheel

1шт.

10

A19100

LOCKING RING

RING - locking, for wheels stamped with No. 51470950395, for 17.5 x 25 tires, three piece

1шт.

11

S300012

RING

- side, for wheels stamped with No. 0111545400, for 17.5 x 25 tires, three piece

1шт.

11

A19099

RING

- side, for wheels stamped with No. 51470950395, for 17.5 x 25 tires, three piece

1шт.

12

NSS

NOT SOLD SEPARAT

RIM - wheel, for 17.5 x 25 tires, three piece

1шт.

13

A19101

O-RING,6.6mm Thk x 590.55mm ID

- seal,for 17.5 x 25 tires, three piece wheel

4шт.

8

L48133

VALVE STEM

- Tubeless tire, for 20.5 x 25, three piece wheel

4шт.

9

L19664

VALVE STEM

CAP - valve, for 20.5 x 25 tires, three piece wheel

1шт.

L119199

RIM

WHEEL ASSEMBLY - rim, three piece, for 20.5 x 25 tires

4шт.

10

N8338

RING

- locking, for wheels stamped with No. 0111551200, for 20.5 x 25 tires, three piece

1шт.

10

A19100

LOCKING RING

RING - locking, for wheels stamped with No. 51474710395, for 20.5 x 25 tires, three piece

1шт.

11

N8337

RING

- side, for wheels stamped with No. 0111551200, for 20.5 x 25 tires, three piece

1шт.

11

L12685

RING

- side, for wheels stamped with No. 51474710395, for 20.5 x 25 tires, three piece

1шт.

12

NSS

NOT SOLD SEPARAT

RIM - wheel, for 20.5 x 25 tires, three piece

1шт.

13

A19101

O-RING,6.6mm Thk x 590.55mm ID

- seal, for 20.5 x 25 tires, three piece wheel

4шт.
