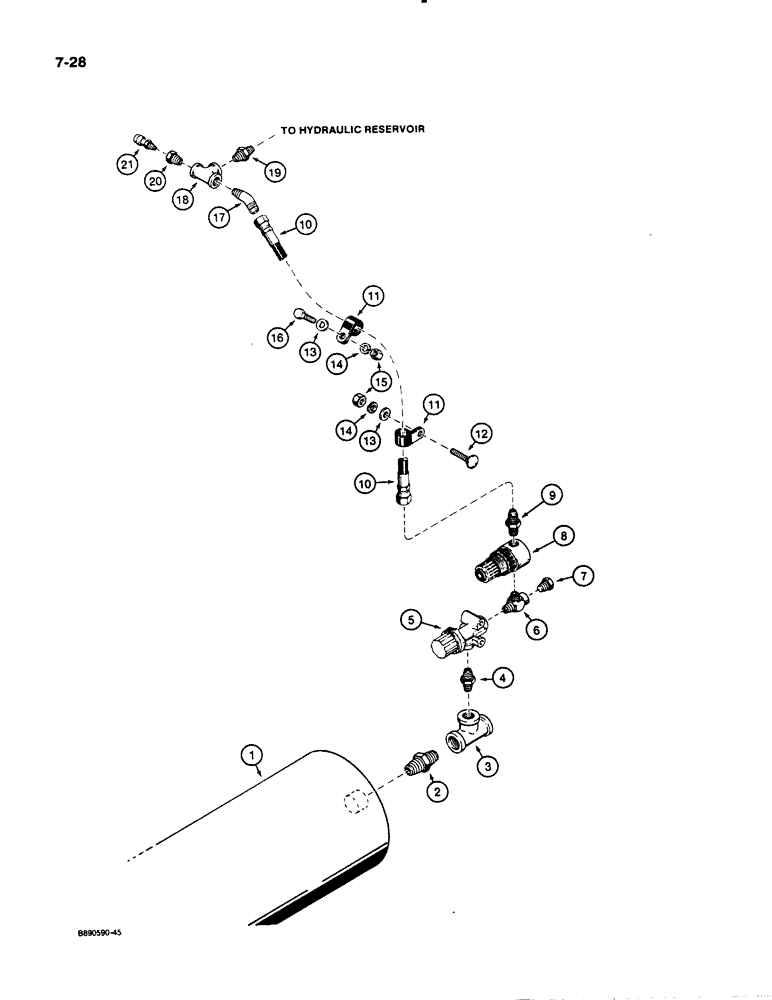

Запчасти Case 621 (7-28) - AIR RESERVOIR TO HYDRAULIC RESERVOIR, P.I.N. JAK0020901 AND AFTER (07) - BRAKES

1

L14823

TANK

RESERVOIR - air, brake system

1шт.

2

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

NIPPLE - straight, 1/2 PT x 1-7/8 inch

1шт.

3

217-1171

TEE,Female, 1/2"-14 x 3/8"-18 Br

- 3/8 fem PT branch x 1/2 inch fem PT

1шт.

4

217-1083

HYD CONNECTOR,3/8" - 18 NPTF x 1/4" - 18 NPTF

NIPPLE - straight, 1/4 x 1/8 PT

1шт.

5

L13530

VALVE

ASSEMBLY - pressure protection, parts list Figure 7-54

1шт.

6

217-1175

TEE,1/8"-27 Male x 1/8"-27 Female Run

- 1/4 PT branch x male PT x fem PT

1шт.

7

221-662

PLUG,Hex Hd, 1/4"-18

- hex, 1/4 inch PT

1шт.

8

L112300

VALVE

ASSEMBLY - pressure reducing, brake, parts list Figure 7-52

1шт.

9

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - straight, 7/16 NF flare x 1/4 PT

1шт.

10

L103355

HOSE,0.25" ID x 50.00", SAE J1402C Type A

to Hydraulic Reservoir 0.25" ID x 50.00", SAE J1402C Type A

1шт.

11

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- mounting, tube

1шт.

12

111-320

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

1шт.

13

495-21044

WASHER,3/8"

(flat, 7/16 inch) 3/8"

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

425-106

NUT,3/8"-16, Cl 5

2шт.

16

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

17

218-1092

ELBOW,45 Degree, 7/16-20" NPTF x 1/4"-18 37 Degree

- 45 degree, 7/16-20 flare x 1/4 inch PT

1шт.

18

221-422

TEE,Pipe, 1/4" NPT

- pipe, 1/4 inch PT

1шт.

19

221-1131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - straight, 1/4 PT x 1 inch

1шт.

20

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING - reducer, 1/4 x 1/8 inch PT

1шт.

21

D38663

VENT

VALVE - relief, hydraulic reservoir

1шт.
