(9-042) - REAR FENDERS AND STEPS

Запчасти Case 621 (9-042) - REAR FENDERS AND STEPS (09) - CHASSIS/ATTACHMENTS

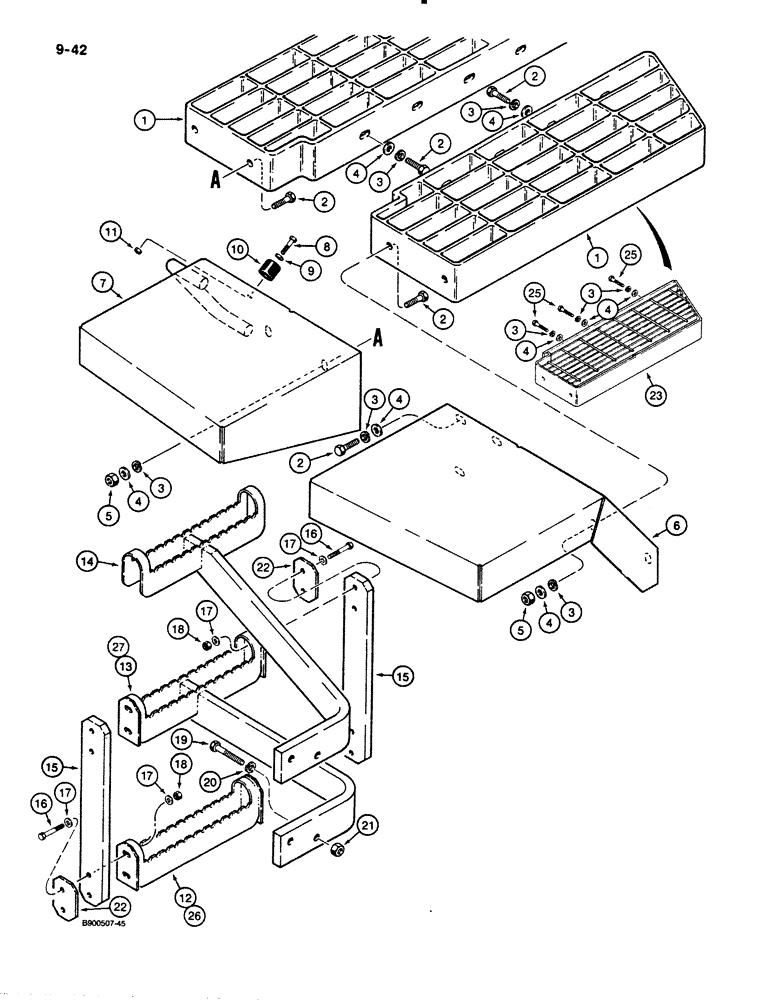

Схема запчастей Case 621 - (9-042) - REAR FENDERS AND STEPS (09) - CHASSIS/ATTACHMENTS
10
16
3
23
4
13
14
2
2
17
19
22
4
15
27
6
1
26
7
17
3
17
3
25
16
15
18
22
1
4
3
3
11
4
25
5
4
17
3
18
2
2
21
12
5
20
9
3
2
4
8
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

L124407

STEP

- platform, operators compartment, no longer available, order item 23 L126892 and/or item 24 L126950 steps

2шт.

2

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

10-18шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

16-18шт.

4

495-21056

WASHER,1/2"

- flat, , zinc plated 1/2"

16-18шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

6

L119206

FENDER

- rear, right-hand

1шт.

7

L119217

FENDER

- rear, left-hand

1шт.

8

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

If used Hex, 1/4"-20 x 1 1/2", G5

1шт.

9

495-11028

WASHER,1/4", SAE

If used 1/4", SAE

1шт.

10

L126483

BUMPER

STOP - rubber, door, if used

1шт.

Ref 10: Per tech The only thing that holds out this bumper is a spacer 311070A1. CAM/CNS 7/19/99

1шт.

11

131-461

LOCK NUT,1/4"-20

NUT - hex, self-locking, 1/4" - 20 NC, if used

1шт.

12

L119135

STEP

- lower, rear frame, no longer available, order one each of item 26, L128543 and item 27, L128544

1шт.

13

L119128

STEP

- center, rear frame, no longer available, order one each of item 26, L128543 and item 27, L128544

1шт.

14

L126167

STEP

- top, rear frame

1шт.

15

L126918

SUPPORT

STRAP - step hanger

2шт.

16

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

8шт.

17

495-21044

WASHER,3/8"

Used with items 12 and 13, L119128 and L119135 steps 3/8"

16шт.

18

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

8шт.

19

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex head, 1/2" - 13 NC x 2-1/4", zinc plated

4шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

21

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, If used 1/2"-13, G5

4шт.

22

L119133

LARGE PLATE

PLATE - support, attaches on outside of step hangers at center and lower steps

4шт.

23

L126892

GRATING

STEP - platform, right-hand, operators compartment

1шт.

24

L126950

STEP

- platform, left-hand, operators compartment, not shown

1шт.

25

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

6шт.

26

L128543

STEP

- lower, rear frame

1шт.

27

L128544

STEP

- center, rear frame

1шт.
