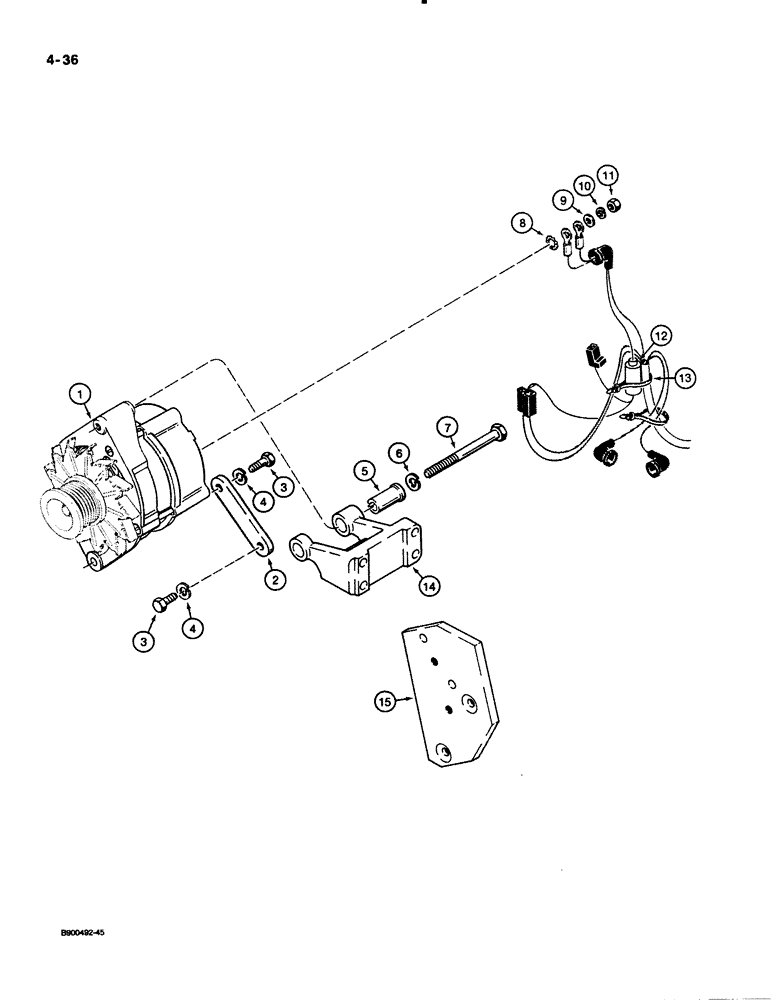

Запчасти Case 621 (4-36) - 45 AMP ALTERNATOR AND MOUNTING PARTS (04) - ELECTRICAL SYSTEMS

1

A186124

ALTERNATOR

ASSEMBLY - 24 volt, 45 amperes, Bosch part number 0 120 489 481, parts list Figure 4-2

1шт.

2

J903089

SUPPORT

BRACE - alternator mounting

1шт.

3

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 mm - 1.25 x 20 mm

2шт.

4

892-1108

LOCK WASHER,M8

2шт.

5

J902469

SPACER

- alternator mounting, upper

1шт.

6

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

1шт.

7

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

- hex, 10 - 1.5 x 100 mm

1шт.

8

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal-external lock, 1/4 inch

1шт.

9

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 7 x 13 x 2 mm

1шт.

10

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

11

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm, Grade 10

1шт.

12

L127475

HARNESS

CAPACITOR - harness, use on models with 45 amp alternator

1шт.

Ref #12 - (Has a built in capacitor to prevent premature buzzing of the low voltage indicator when the machine is at low idle. Only used on units equipped with 45 Amp Alternator) 04/19/96

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

14

J910713

SUPPORT

BRACKET - support, alternator, supplied with engine on models prior to P.I.N. JAK0021337

1шт.

15

J904548

BRACKET

- belt tensioner, supplied with engine on models prior to P.I.N. JAK0021337

1шт.
