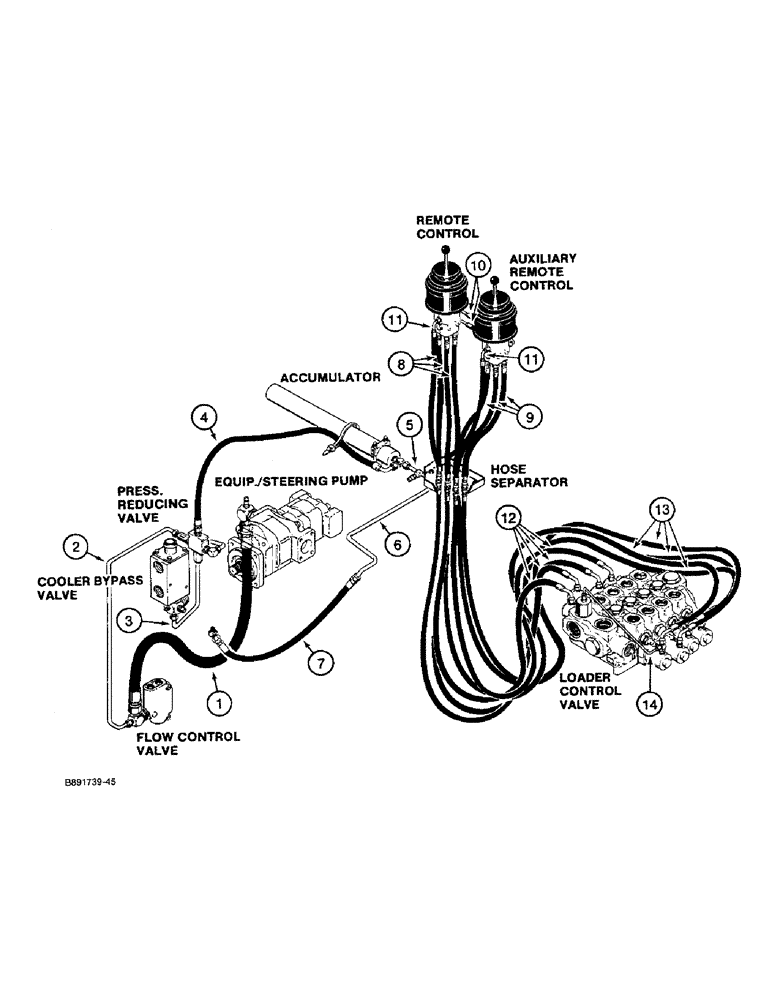

Запчасти Case 821 (1-020) - PICTORIAL INDEX, HYDRAULIC CIRCUIT - FOUR SPOOL VALVE, STEERING PUMP TO LOADER CONTROL VALVE (00) - PICTORIAL INDEX

1

Hose, elbow at steering pump to elbow at rear port of flow control valve, Figure 8-068

1шт.

2

Tube, elbow at flow control valve to check valve at pressure reducing valve, Figure 8-068

1шт.

3

Tube, elbow at pressure reducing valve to manifold at lower port of cooler bypass valve, Figure 8-068

1шт.

4

Hose, pressure reducing valve to tee at accumulator, Figure 8-068

1шт.

5

Tube, accumulator to hose separator, Figure 8-068

1шт.

6

Tube, hose separator to hose at hydraulic reservoir, Figure 8-068

1шт.

7

Hose, at hydraulic reservoir, Figure 8-068

1шт.

8

Hose, remote control to hose separator ports 1A, 1B, 2A, and 2B, Figure 8-064

1шт.

9

Hose, auxiliary remote control to hose separator ports 3A, 4A, and 4B, Figure 8-064

1шт.

10

Hose, auxiliary remote control to remote control, Figure 8-064

1шт.

11

Hose, remote control to hose separator, hydraulic reservoir and pressure reducing valve ports, Figue 8-064

1шт.

12

Hose, hose separator to ports 1B, 2B, 3B and 4B, Figure 8-066

1шт.

13

Hose, hose separator to ports 1A, 2A, 3A and 4A, Figure 8-066

1шт.

14

Tube, inlet and outlet section to tee at port 1A, Figure 8-066

1шт.
