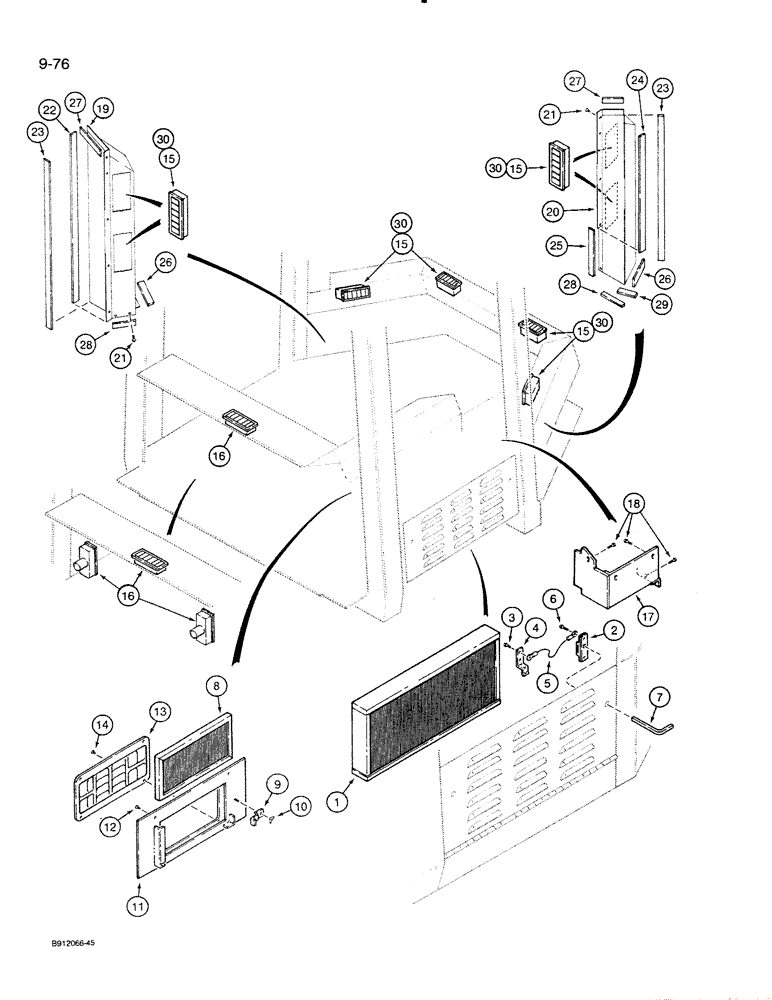

Запчасти Case 821 (9-076) - CAB FILTERS, VENTS, AND LOUVERS, *CABS WITH DOUBLE LOUVER AIR VENTS (ITEMS 19 & 20) (09) - CHASSIS/ATTACHMENTS

1

1970006C2

AIR CLEANER,Cab, 508mm L x 228.6mm W x 55.8mm Thk

FILTER - air, cab

1шт.

2

1339773C1

LOCK

LATCH - filter door

2шт.

3

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

- Self tapping, hex washer, 1/4 NC x 3/4 inch

4шт.

4

1339848C2

SUPPORT

CATCH - filter door

2шт.

5

1339924C1

CABLE

- filter door stop

1шт.

6

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

- Self tapping, hex washer, 1/4 NC x 3/4 inch

4шт.

7

S115083

KEY

- lock, access door

1шт.

The panel that this key goes thru is 223667A1.

1шт.

8

1970098C1

FILTER

- air, recirculating

1шт.

9

1977780C1

SUPPORT

BRACKET - mounting, filter

1шт.

10

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

1шт.

11

1977783C2

SUPPORT

FRAME - recirculation, filter and louver

1шт.

12

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

2шт.

13

1970073C1

ORIFICE RING

LOUVER - air, recirculating

1шт.

14

265-18312

SELF-TAP SCREW,Cross Oval Hd, #6 x 3/4"

SCREW - self-tapping, oval Phillips, No. 6-20 x 3/4 inch

4шт.

15

1958752C1

VENT

LOUVER - bezel, pop-out type, no longer available, order Ref. 30, louver

6-8шт.

16

1971238C1

VENT

LOUVER - cab, rear window

1-3шт.

17

1339900C5

PANEL

COVER - seal, air recirculating

1шт.

18

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

4шт.

19

1344366C2

DUCT

VENT - air, high rise, double louver, left-hand

1шт.

20

1344280C2

DUCT

VENT - air, high rise, double louver, right-hand

1шт.

21

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

SCREW - pan Phillips head, No. 10-16 x 3/8 inch

16шт.

22

1344322C1

SEAL

SEAL - 550 mm long, air vent, cut from 195917C2 bulk seal, see below

1шт.

23

1344323C1

SEAL

SEAL - 540 mm long, air vent, cut from 195917C2 bulk seal, see below

2шт.

24

1344324C1

SEAL

SEAL - 350 mm long, air vent, cut from 195917C2 bulk seal, see below

1шт.

25

1344325C1

SEAL

SEAL - 170 mm long, air vent, cut from 195917C2 bulk seal, see below

1шт.

26

1344326C1

SEAL

SEAL - 95 mm long, air vent, cut from 195917C2 bulk seal, see below

2шт.

27

1344327C1

SEAL

SEAL - 85 mm long, air vent, cut from 195917C2 bulk seal, see below

2шт.

28

1344328C1

SEAL

SEAL - 60 mm long, air vent, cut from 195917C2 bulk seal, see below

2шт.

29

1344329C1

SEAL

SEAL - 50 mm long, air vent, cut from 195917C2 bulk seal, see below

1шт.

30

1990950C1

VENT

LOUVER - bezel, with locking tab

6-8шт.

195917C2

SEAL

SEAL - adhesive backed, 600 inch (15, 240 mm) long

1шт.
