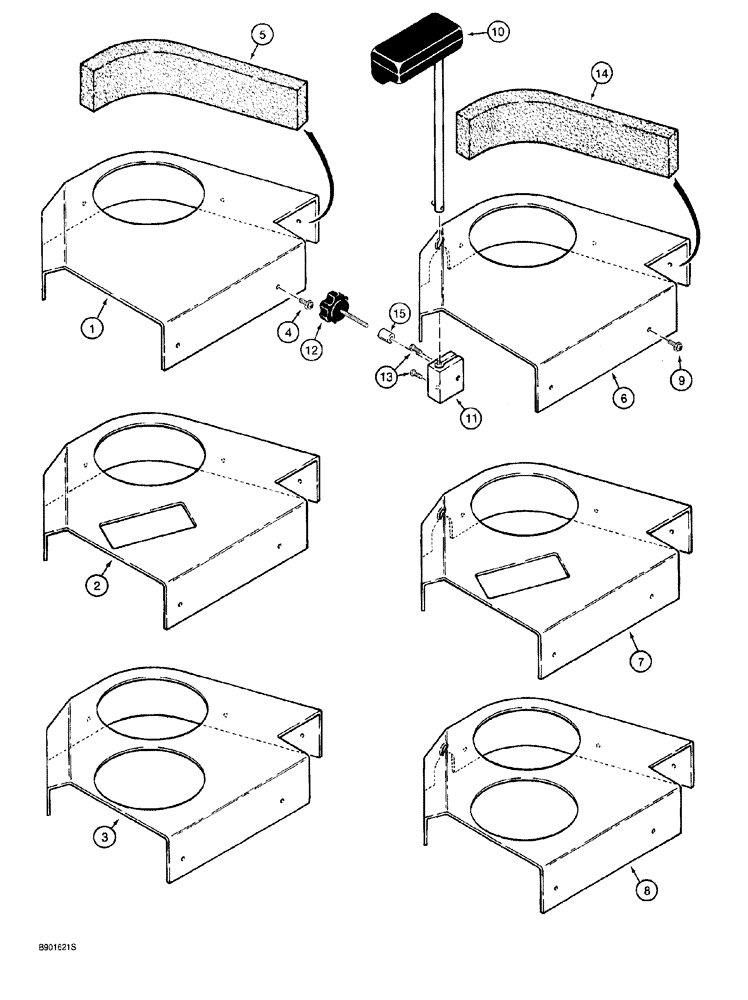

Запчасти Case 921 (9-046) - CONSOLE COVERS AND WRIST SUPPORT (09) - CHASSIS/ATTACHMENTS

1

1969923C3

BRACKET

COVER console, use on models with single or dual lever remote control, without wrist support

1шт.

2

1969925C3

BRACKET

COVER console, use on models with single or dual lever remote control and single lever auxiliary control, without wrist support

1шт.

3

1969924C2

BRACKET

COVER console, use on models with two single lever remote controls, without wrist support

1шт.

4

F45174

SCREW,#10 - 16 x 3/4"

self-tapping, special, No. 10-16 x 1 inch, use on models without wrist support

5шт.

5

1981910C1

INSULATION,61mm W x 365mm L x 25mm Thk

adhesive-backed, 14-3/8 inch (365 mm) long, use on models with canopy, without wrist support

1шт.

6

1977942C2

BRACKET

COVER console, use on models with single or dual lever remote control valve, with wrist support

1шт.

7

1977944C2

BRACKET

COVER console, use on models with single or dual lever remote control and single lever auxiliary control, with wrist support

1шт.

8

1977943C2

BRACKET

COVER console, use on models with two single lever remote controls, with wrist support

1шт.

9

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

self-tapping, special, No. 10-16 x 3/4 inch, use on models with wrist support

5шт.

10

1338223C1

PAD

wrist support

1шт.

11

1338240C1

BASIC BLOCK

adjustment, wrist support

1шт.

12

1999723C1

BUTTON

KNOB adjustment, wrist support

1шт.

13

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

Use on models with wrist support

2шт.

14

1981910C1

INSULATION,61mm W x 365mm L x 25mm Thk

adhesive-backed, 14-3/8 inch (365 mm) long, use on models with canopy, with wrist support

1шт.

15

700711545

CUP WASHER

SPACER knob, use on models with wrist support

1шт.
