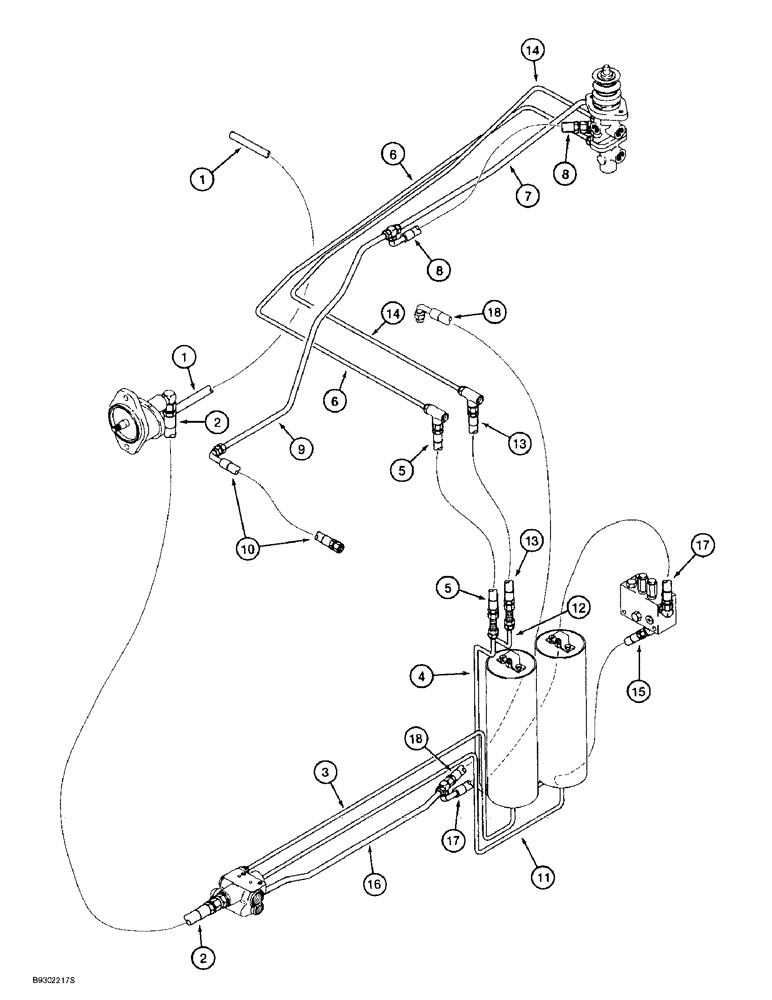

Запчасти Case 621B (1-14) - PICTORIAL INDEX, MAIN BRAKE HYDRAULIC CIRCUIT, BRAKE VALVE SUPPLY AND RETURN (00) - PICTORIAL INDEX

1

Hose, at suction tube on hydraulic reservoir to brake pump - Figure 7-08

1шт.

2

Hose, brake pump to accumulator valve - Figure 7-08

1шт.

3

Tube, accumulator valve upper port to rear accumulator - Figure 7-10

1шт.

4

Tube, rear accumulator to hose at tee to tube to brake valve lower pressure port - Figure 7-14

1шт.

5

Hose, tee at tube to brake valve lower pressure port from tube at rear accumulator - Figure 7-14

1шт.

6

Tube, tee at hose from rear accumulator to brake valve lower pressure port - Figure 7-14

1шт.

7

Front tube, brake valve upper tank port to tee at rear tube to reservoir - Figure 7-14

1шт.

8

Hose, brake valve lower tank port to tee at front and rear tubes to reservoir - Figure 7-14

1шт.

9

Rear tube, tee at front tube and hose from brake valve to hose at reservoir - Figure 7-14

1шт.

10

Hose, rear tube from brake valve to reservoir - Figure 7-14

1шт.

11

Tube, accumulator valve lower port to front accumulator - Figure 7-10

1шт.

12

Tube, front accumulator to hose to brake valve upper pressure port - Figure 7-14

1шт.

13

Hose, tube at accumulator to tee at tube to brake valve upper pressure port - Figure 7-14

1шт.

14

Tube, tee at hose from front accumulator to brake valve upper presure port - Figure 7-15

1шт.

15

Hose, tee at front accumulator to pressure reducing valve - Figure 7-11

1шт.

16

Tube, accumulator valve to tee at hoses to oil filters and pressure reducing valve - Figure 7-13

1шт.

17

Hose, tee at tube from accumulator valve to pressure reducing valve - Figure 7-13

1шт.

18

Hose, tee at tube from accumulator valve to oil filters - Figure 7-13

1шт.
