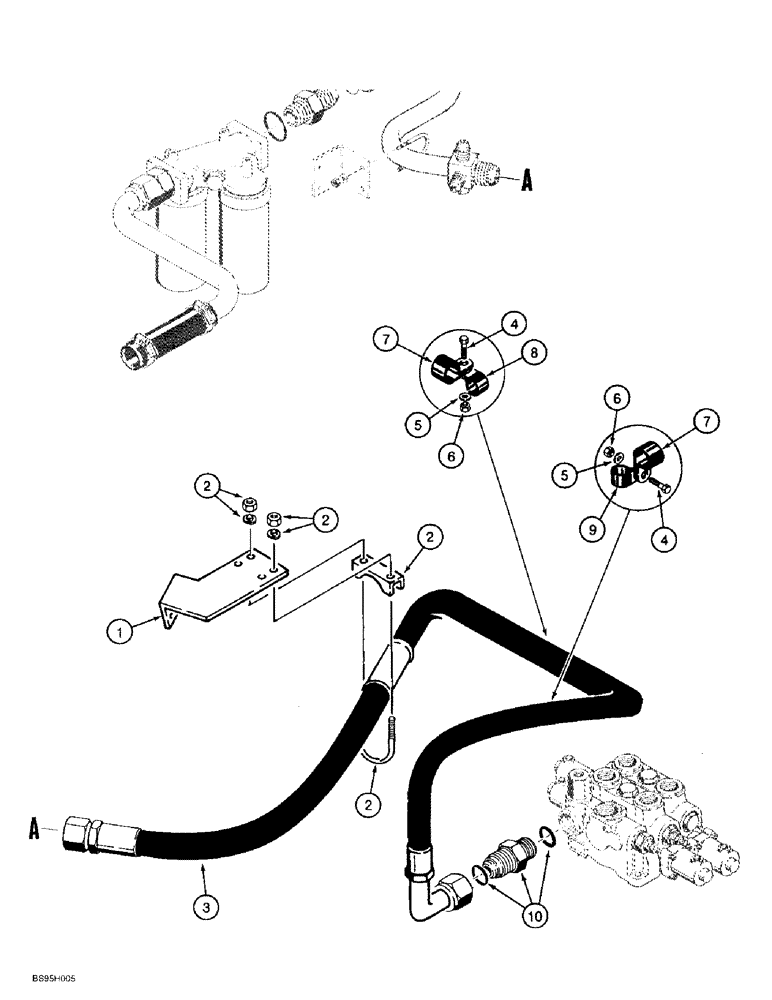

Запчасти Case 621B (8-07E) - HYDRAULIC CIRCUIT, NOISE REDUCTION KIT, Z-BAR OR XT LOADER (08) - HYDRAULICS

134653A1

SET

KIT hydraulic noise reduction, Includes: Ref. 1 - 10 plus instructions

1шт.

1

108207A1

SUPPORT

BRACKET mounting, hose

1шт.

2

L73301

CLAMP,51mm ID

ASSEMBLY, includes hardware

2шт.

3

108948A1

HOSE,31.75mm ID x 2510mm L, SAE 100R3

2510 mm (99 inch) long, Serial Range: valve-filters

1шт.

4

426-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 8

3/8 NC x 1-1/8 inch, grade 8

2шт.

5

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch)

2шт.

6

231-1446

NUT,3/8" - 16, Gr 5

2шт.

7

515-25444

CLAMP,1 3/4", Insul, 7/16" Bolt

P-type, 1-3/4 inch ID, replaces S98801 clamp

2шт.

8

515-25254

CLAMP,1", Insul, 1/2" Bolt

P-type, Replaces 49891 clamp

1шт.

9

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

P-type, Replaces D41564 clamp

1шт.

10

L124289

CONNECTOR, ELEC

CONNECTOR ADAPTER straight, special, includes O-rings, Serial Range: hose-valve

1шт.
